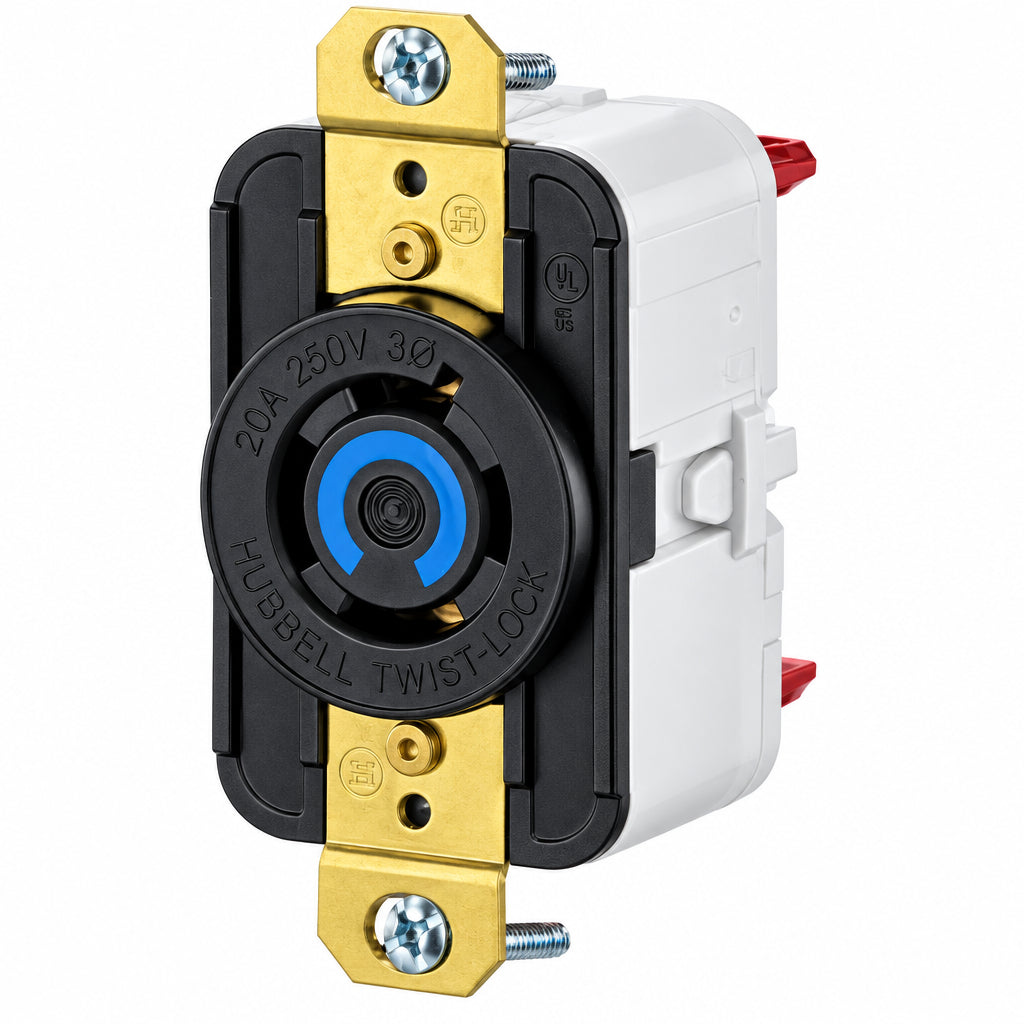

Hubbell 20 Amp 250V EdgeConnect™ Twist-Lock® Receptacle with Spring Termination, Model HBL2420ST
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This Hubbell EdgeConnect™ Twist-Lock® receptacle provides a secure locking connection for 20A, 250V industrial power applications. Spring termination speeds up wiring without a screwdriver or torque wrench and eliminates strand relaxation. Its high-impact, abuse-resistant nylon face stands up to demanding job-site use, while voltage colour coding helps identify matching devices.
Specifications
| Product Type | EdgeConnect™ Twist-Lock® receptacle |
| Current Rating | 20 A |
| Voltage Rating | 250 VAC |
| NEMA Configuration | L15-20R |
| Poles / Wires | 3 poles / 4 wires |
| Termination | Spring termination |
| Wire Size | 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded) |
| Face Material | High-impact, abuse-resistant nylon |
| Colour | Black |
| Dimensions (L × W × H) | 3.28 × 1.7 × 1.468 in |
| Product Weight | 0.3 lb |
