Hubbell ½" Multiposition Liquidtight Swivel Connector - Gray, Model PS0509NGY
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

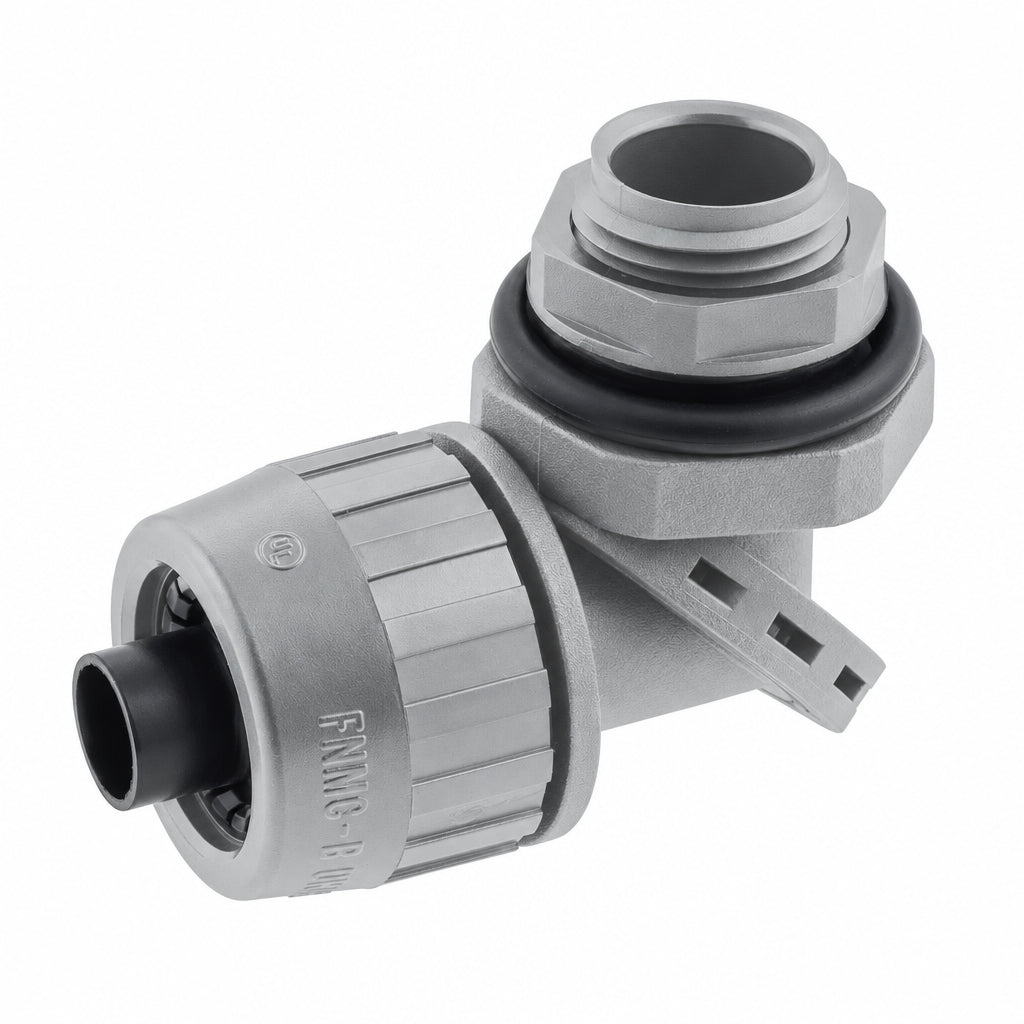

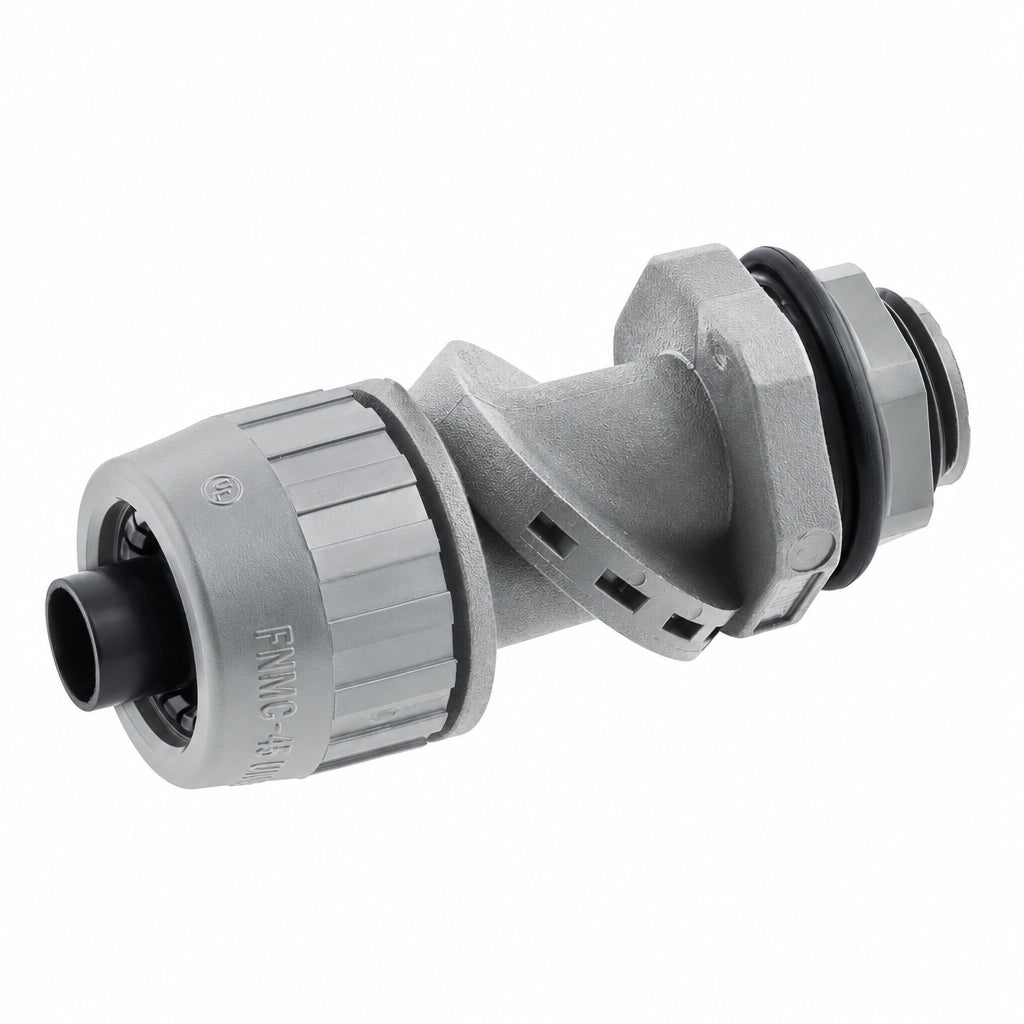

This Hubbell Kellems non-metallic liquidtight connector swivels from straight to 90°, helping installers route PolyTuff® I conduit and PolyTuff® II tubing without stocking separate fixed-angle fittings. Its corrosion-resistant nylon construction and neoprene O-ring provide a liquidtight connection, while the separate ferrule seals the conduit and helps protect against pullout. Use it for flexible conduit terminations where adjustable routing and moisture protection are needed.
Specifications
| Product Type | Non-metallic male liquidtight connector |
| Design | PolyTuff® SwivelLok® multi-position fitting |
| Trade Size | 1/2 in. |
| Adjustment Range | Straight to 90° |
| Compatibility | PolyTuff® I conduit and PolyTuff® II tubing |
| Material | Nylon |
| Colour | Grey |
| Sealing Ring | Neoprene O-ring |
| Compression Nut | Nylon with tapered dome to tighten the ferrule onto the conduit |
| Ferrule | Non-integral; provides conduit sealing and pullout protection |
| Operating Temperature | −34°C to +107°C (−30°F to +225°F) |
| Flammability | UL 94X-2 (as stated in the supplied specifications) |
| Certifications | CSA Certified; UL Listed, UL 50 Types 4X, 12 and 13 |
| RoHS Compliance Status | CM |
| Product Weight | 0.039 lb |
| UPC | 783585339115 |
