Hubbell 2-Pole 3-Wire 15A 125V Yellow Connector, Model HBL5969VY
Hubbell 2-Pole 3-Wire 15A 125V Yellow Connector, Model HBL5969VY
Pickup available at IES - Mississauga
Usually ready in 4 hours

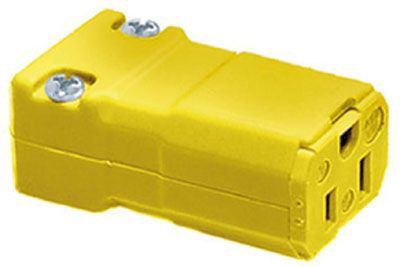

The Hubbell Wiring Device-Kellems Valise® HBL5969VY is a commercial/industrial-grade straight blade connector built for demanding job site and facility applications where quick identification and reliable performance matter. The high-visibility yellow nylon body makes it easy to distinguish dedicated circuits at a glance — a practical advantage in multi-circuit environments like construction sites, stages, and industrial plants. Rated 15 A at 125 VAC with a NEMA 5-15R configuration, it handles cord diameters from 0.22" to 0.66" and operates reliably across a wide temperature range of -40°C to 75°C. Screw terminals provide a secure, maintenance-friendly connection, and the IP20 enclosure rating keeps the internals protected from incidental contact. Rated for up to 1/2 hp motor loads, the HBL5969VY is a dependable choice for portable power distribution, temporary power setups, and equipment cord terminations.
Specifications
| Brand | Hubbell Wiring Device-Kellems (Valise®) |
| Type | Straight Blade Connector, Female Grounding, Cord Mount |
| NEMA Rating | 5-15R |
| Voltage Rating | 125 VAC |
| Amperage Rating | 15 A |
| Horsepower Rating | 1/2 hp |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Cord Diameter Range | 0.22" – 0.66" |
| Temperature Range | -40°C to 75°C |
| Enclosure Rating | IP20 |
| Terminal Type | Screw Terminal |
| Material | Nylon |
| Colour | Yellow |
| Tamper-Resistant | No |
| Dimensions | 2.68" x 1.32" x 2.68" |
| Grade | Commercial/Industrial |
| Manufacturer | Hubbell |
