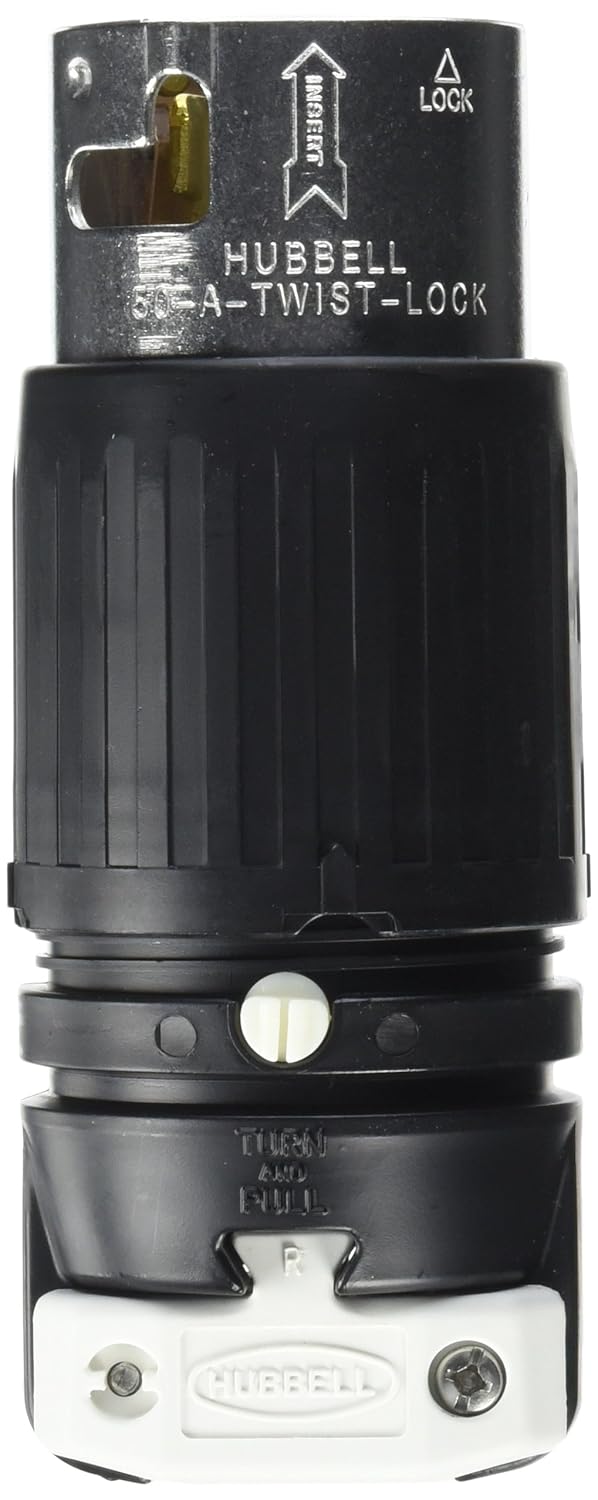

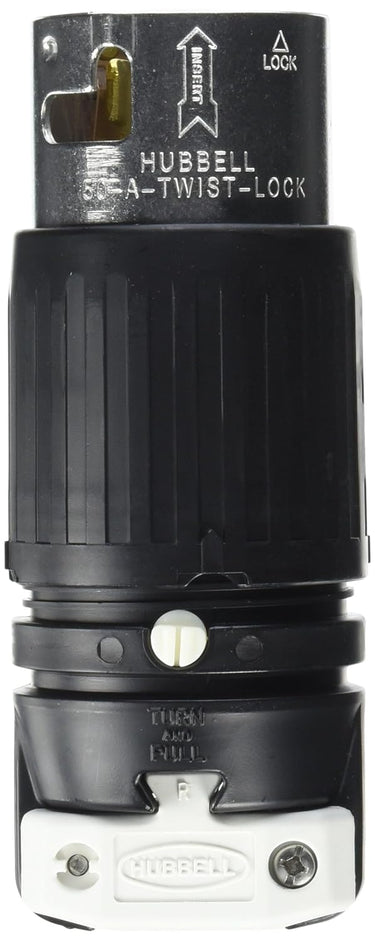

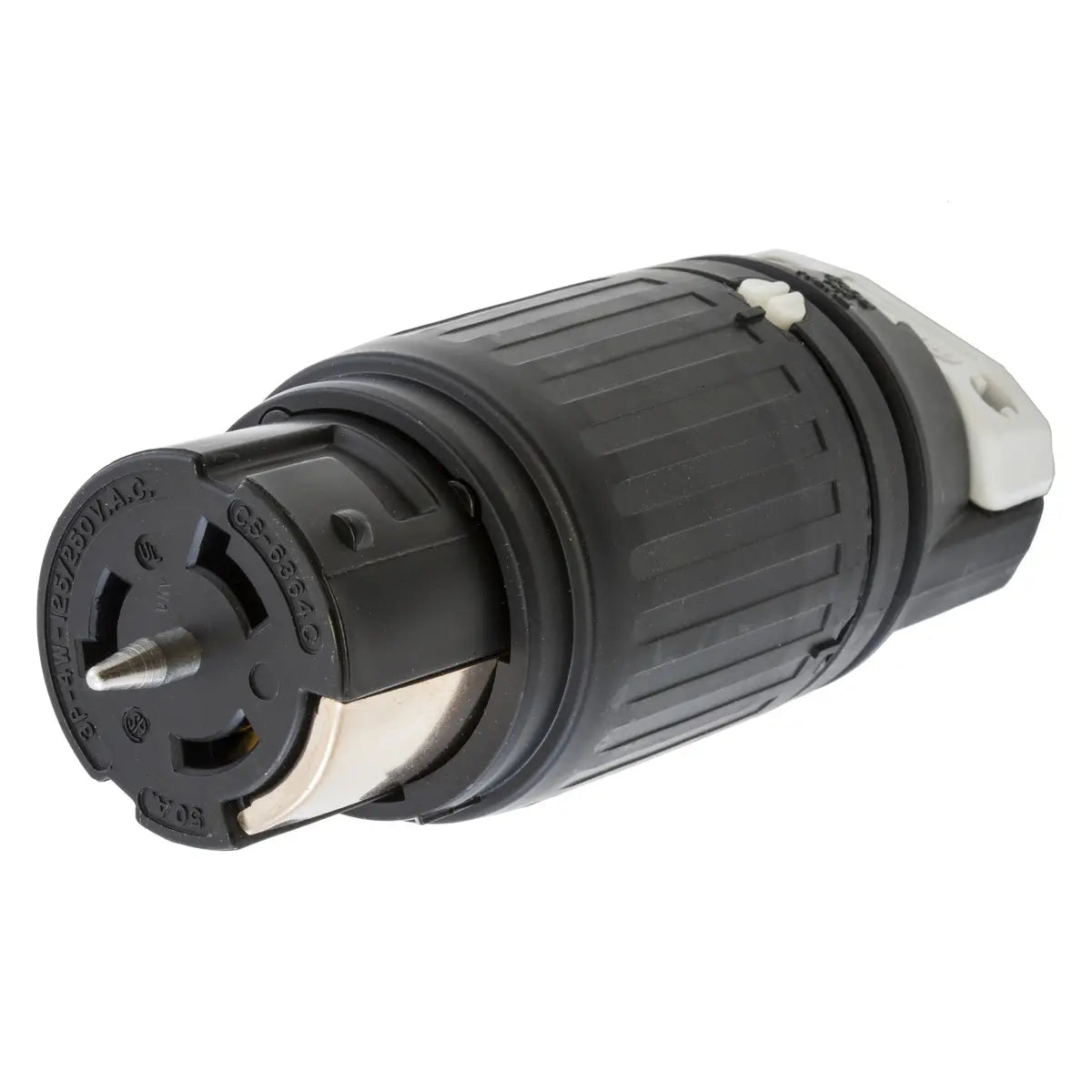

Hubbell 50 Amp 125/250V Industrial Grade Twist-Lock Female Connector Body, Model CS6364C
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This Hubbell industrial female Twist-Lock® connector provides a secure locking connection for 50A, 125/250V power distribution on demanding job sites. Its tough nylon housing resists impact, while the heavy-duty two-piece cord clamp provides strain relief for cord-mounted connections. Designed for indoor dry use unless protected by additional means, it features oversized brass contacts to help minimise operating temperature.
Specifications
| Brand | Hubbell Wiring Device-Kellems |
| Device Type | Industrial female Insulgrip Twist-Lock® connector body |
| Current Rating | 50 A |
| Voltage Rating | 125/250 VAC |
| Wiring Configuration | 3-pole, 4-wire grounding |
| Configuration Standard | Non-NEMA |
| Termination | Pressure terminal screws; box terminal with hex-socket threaded slug for high clamping pressure without damaging conductor strands |
| Wire Size | #10 AWG to #6 AWG stranded copper wire only |
| Cord Diameter Range | 0.830–1.250 in (21.08–31.75 mm) |
| Cord Clamp | Heavy-duty two-piece external clamp with offset gripping jaws for conductor and cord-jacket strain relief |
| Mounting | Cord mounted |
| Housing Material | Nylon; insulated body |
| Interior and Terminal Retainer | Thermoplastic polyester for heat resistance and impact strength |
| Contact Material | Brass; oversized contacts help minimise operating temperature |
| Cord Grip Material | Polyester |
| Terminal Screw Material | Stainless steel |
| Colour | Black and white |
| Environmental Conditions | Indoor dry unless protected by additional means |
| Operating Temperature | Minimum −40°C without impact; maximum continuous 75°C |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Flammability | HB or better |
| Construction | Rigid construction restricts contact distortion to minimise the possibility of mating dissimilar devices |
| Dimensions (L × W × H) | 6.50 × 2.56 × 2.50 in |
| Display Size | Standard |
| Weight | 1.05 lb |
| UPC | 783585827971 |
