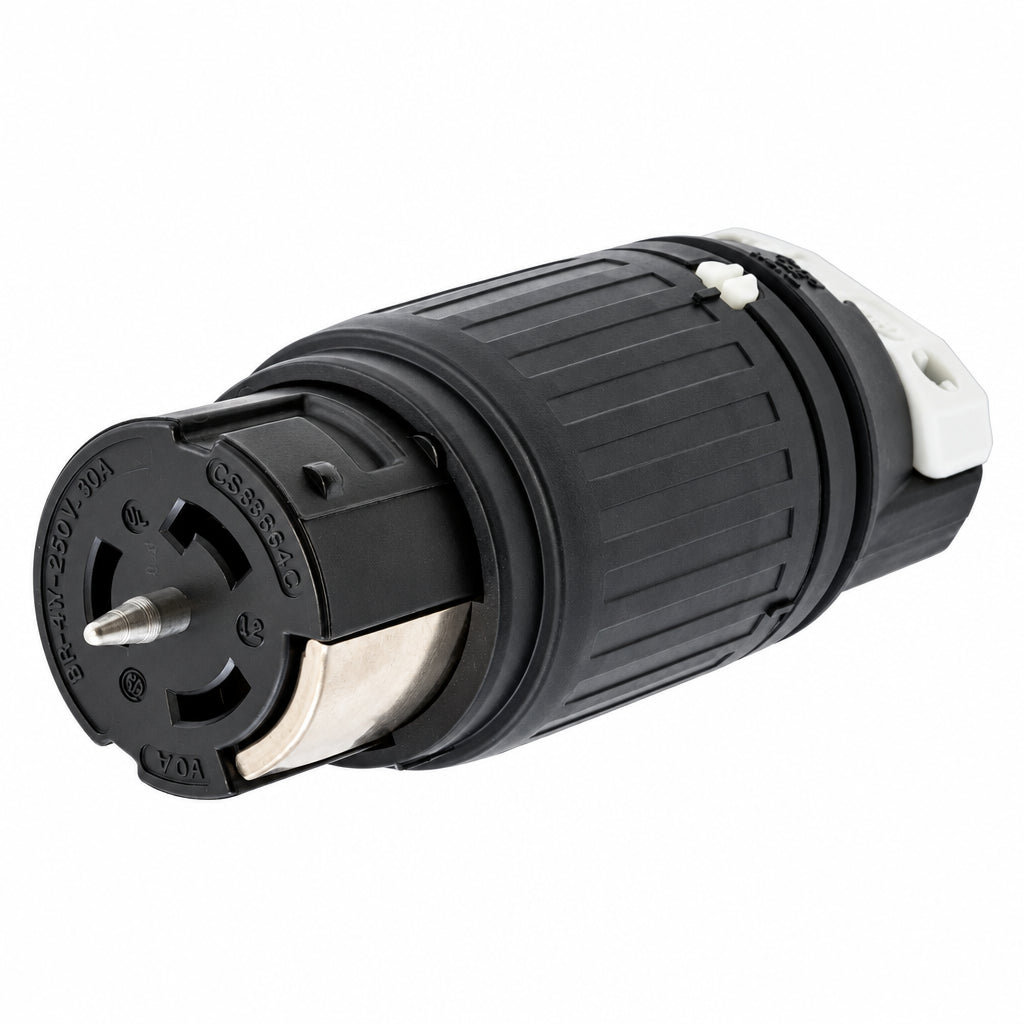

Hubbell 50 Amp 250V Twist-Lock Industrial Grade Female Connector Body, Model CS8364C
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This Hubbell Twist-Lock® female connector provides a secure locking connection for 50 A, 250 V three-phase delta industrial power applications. Its tough nylon housing resists impact, while the heavy-duty two-piece cord clamp provides strain relief for demanding job-site connections. Oversized brass contacts help minimise operating temperature, and box terminals allow high clamping pressure without damaging conductor strands.
Specifications
| Product Type | Industrial Insulgrip Twist-Lock® female connector body |
| Current Rating | 50 A |
| Voltage and Phase | 250 V AC, three-phase delta |
| Configuration | 3-pole, 4-wire grounding; non-NEMA |
| Termination | Pressure screw box terminals with hex socket threaded slug |
| Cord Diameter Range | 0.830–1.250 in |
| Mounting | Cord mounted |
| Housing | Insulated nylon body |
| Interior and Terminal Retainer | Thermoplastic polyester |
| Contacts | Oversized brass contacts |
| Terminal Screws | Stainless steel |
| Cord Grip | Polyester; heavy-duty two-piece external cord clamp |
| Environmental Conditions | Indoor dry unless protected by additional means |
| Operating Temperature | −40°C minimum without impact; 75°C maximum continuous |
| Dielectric Strength | Withstands 2,000 V minimum |
| Current Interrupting | Certified for current interrupting at full rated current |
| Flammability | HB or better |
| Dimensions (L × W × H) | 6.50 × 2.56 × 2.50 in |
| Weight | 1.1 lb |
