Hubbell 50 Amp 250V Industrial Grade Twist-Lock Male Plug, Model CS8365C
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

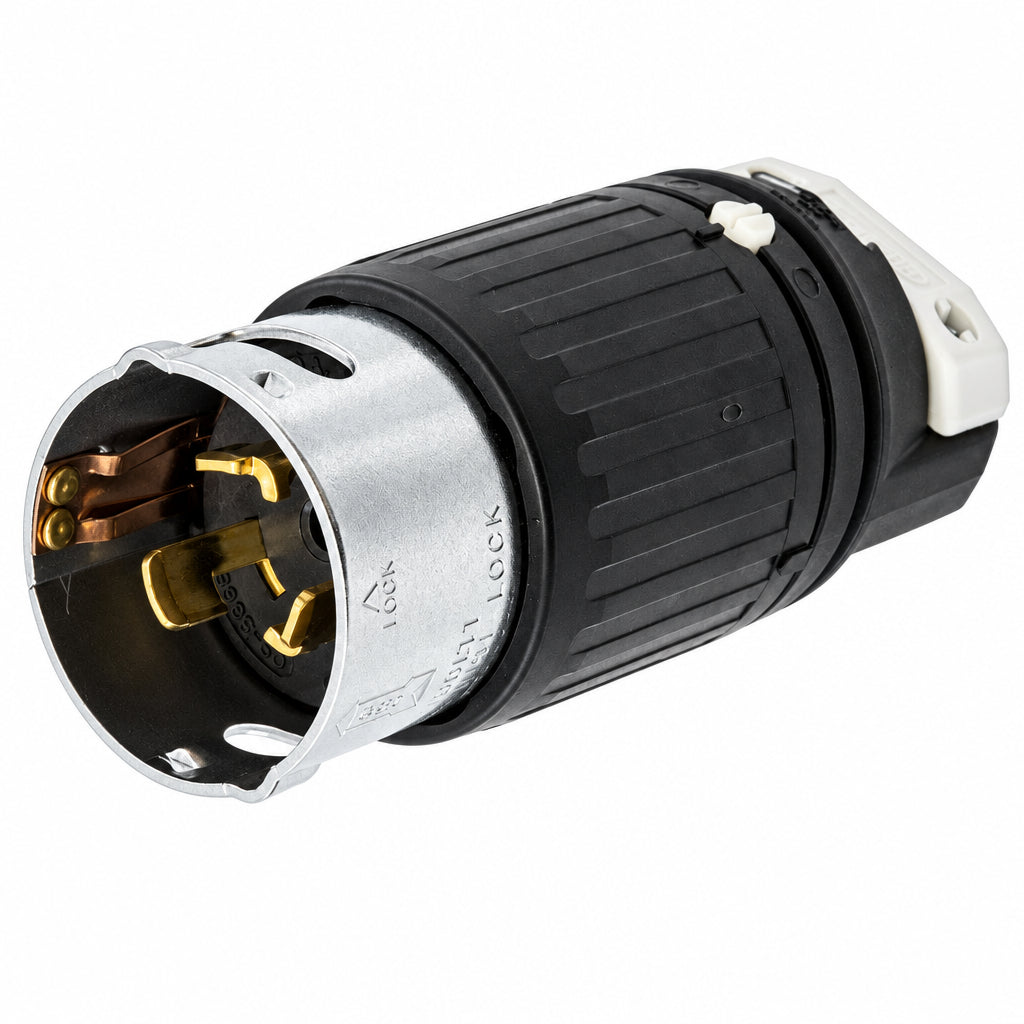

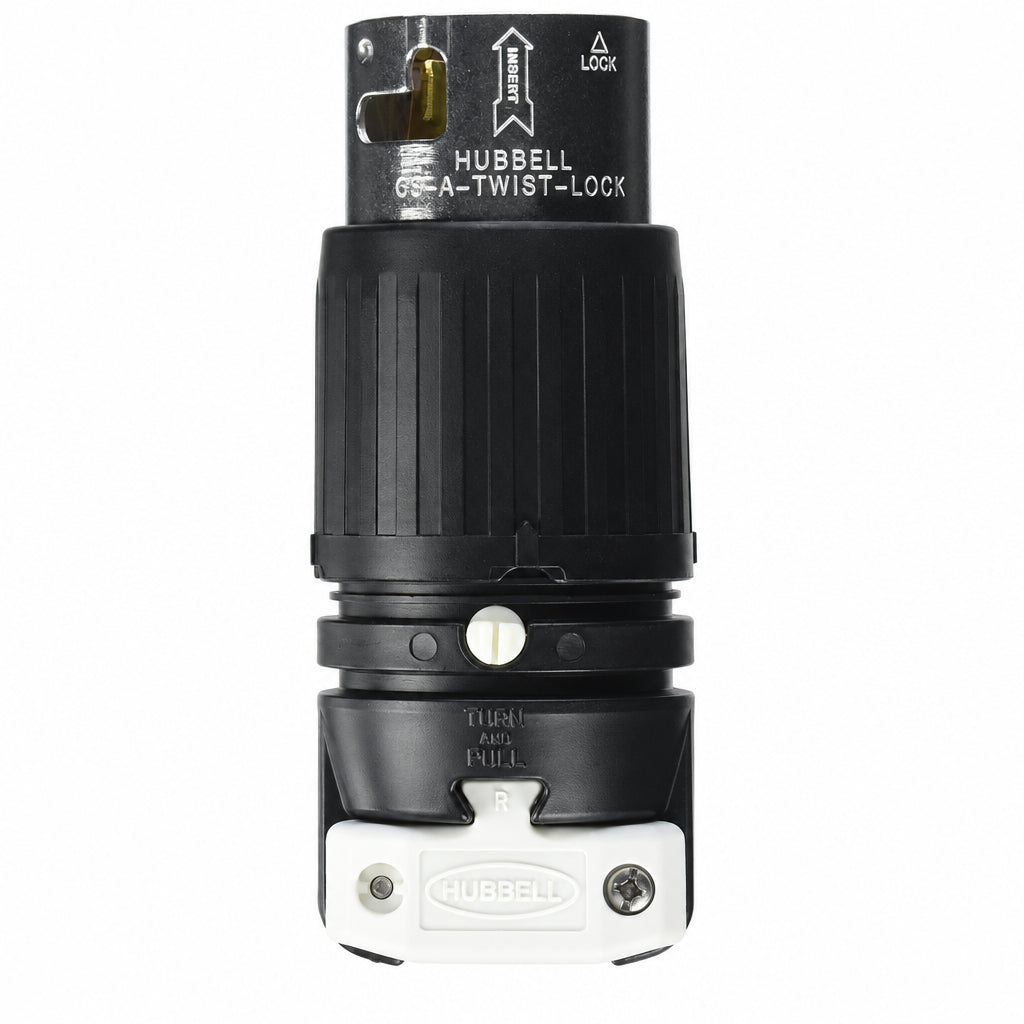

The Hubbell CS8365C is a heavy-duty 3-pole, 4-wire Insulgrip twist-lock plug rated for 50A at 250V, designed for demanding 3-phase industrial and commercial job sites. Its nylon housing, stainless steel shell, and brass blades deliver exceptional corrosion resistance and long-term durability in harsh environments. Ideal for powering high-draw equipment such as compressors, welders, and temporary power distribution panels on construction sites.
Specifications
| Catalogue Number | CS8365C |
| Item Type | Insulgrip Plug |
| Amperage | 50A |
| Voltage | 250V |
| Poles / Wires | 3-Pole, 4-Wire |
| Colour | Black |
| Material – Housing | Nylon |
| Material – Shell | Stainless Steel |
| Material – Blades | Brass |
| Material – Blade Holder & Cord Grip | Polyester |
| Material – Terminal Screws | Stainless Steel |
| Mounting | Cord Mounted |
| Cord Range | 0.830"–1.250" (21.08–31.75 mm) |
| Wire Accommodation | #10 AWG – #6 AWG stranded copper only |
| Operating Temperature | –40°C to +75°C continuous (without impact) |
| Dielectric Voltage | Withstands 2,000V minimum |
| Current Interrupting | Certified at full rated current |
| Flammability Rating | HB or better |
| RoHS Compliant | Yes (EU RoHS) |
| UPC | 783585829128 |
