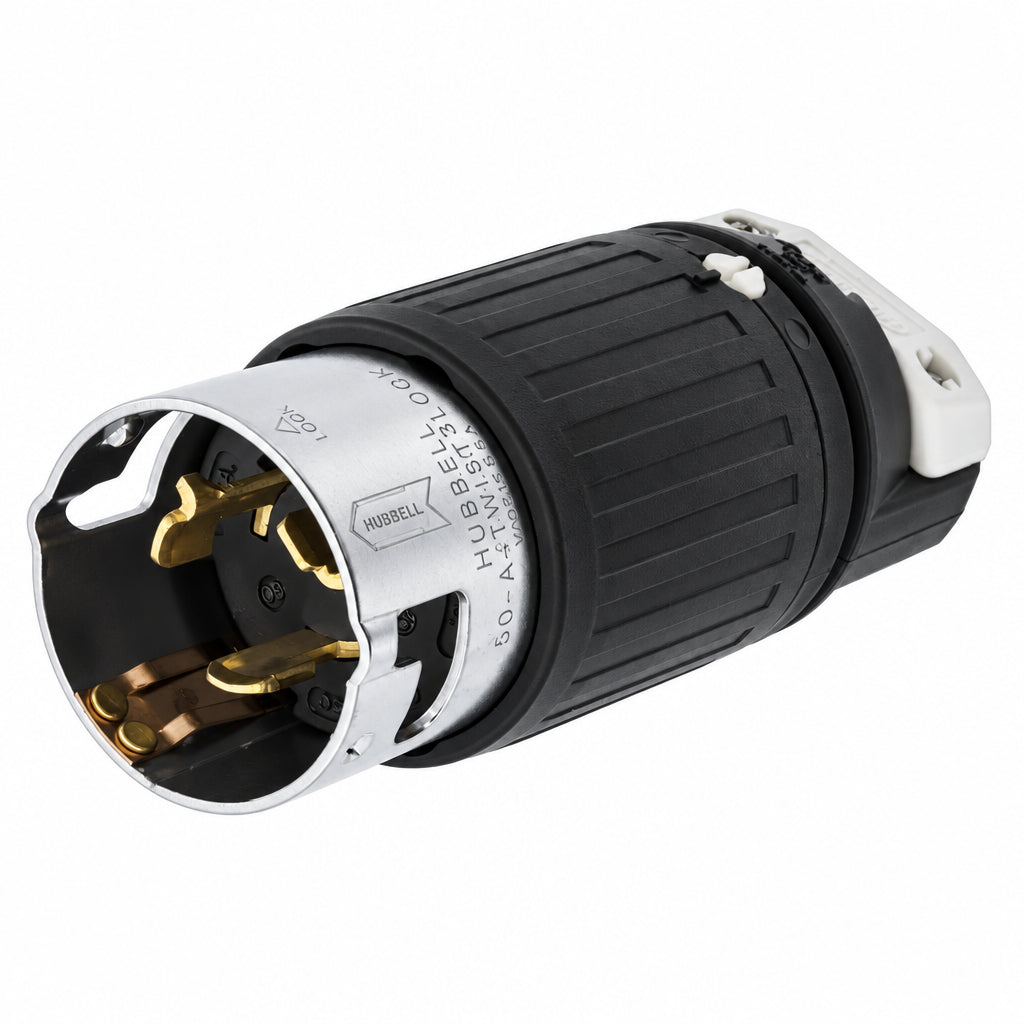

Hubbell 50 Amp 125/250V Industrial Grade Twist-Lock Male Plug, Model CS6365C
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Hubbell’s industrial Twist-Lock® male plug provides a secure locking connection for generators and temporary power distribution on demanding job sites. Its impact-resistant nylon housing and stainless steel shroud help protect the device and restrict mismating, while the heavy-duty two-piece cord clamp provides strain relief. High-pressure box terminals grip conductors without damaging strands.
Specifications
| Device Type | Industrial Insulgrip Twist-Lock® male plug |
| Current Rating | 50 A |
| Voltage Rating | 125/250 VAC, single phase |
| Configuration | 3-pole, 4-wire grounding; non-NEMA |
| Connection | Pressure screw terminals with hex-socket threaded slugs |
| Conductor Size | #10 AWG to #6 AWG, stranded copper wire only |
| Cord Diameter Range | 0.830–1.250 in (21.08–31.75 mm) |
| Mounting | Cord mounted |
| Housing | Impact-resistant nylon |
| Interior and Cord Grip | Thermoplastic polyester interior and blade holder; polyester cord grip |
| Blades | Brass |
| Shell and Terminal Screws | Stainless steel |
| Cord Clamp | Heavy-duty, two-piece external clamp with offset gripping jaws |
| Colour | Black and white |
| Environmental Conditions | Indoor dry locations unless protected by additional means |
| Operating Temperature | Maximum continuous 75°C; minimum −40°C without impact |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Flammability | HB or better |
| Dimensions (L × W × H) | 6.37 × 2.56 × 2.56 in |
| Weight | 1.25 lb |
