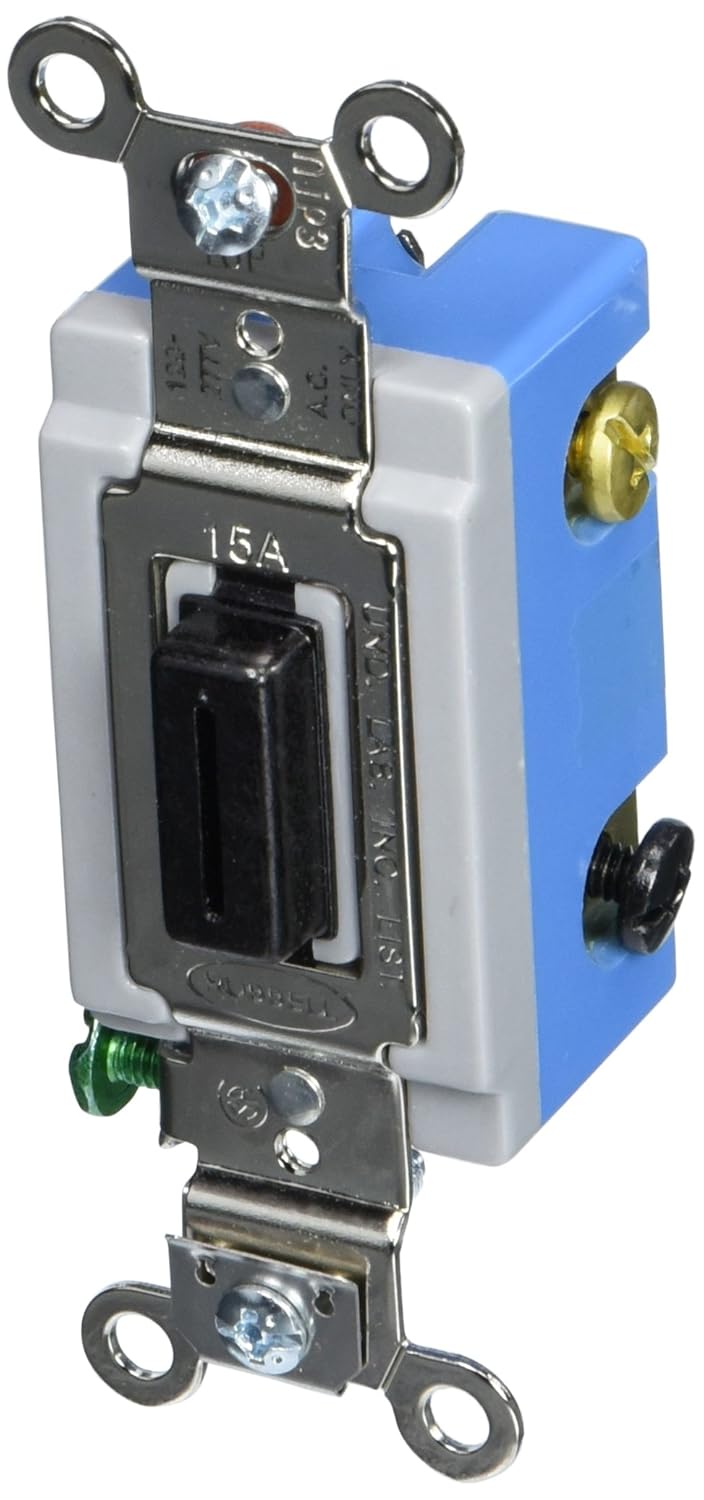

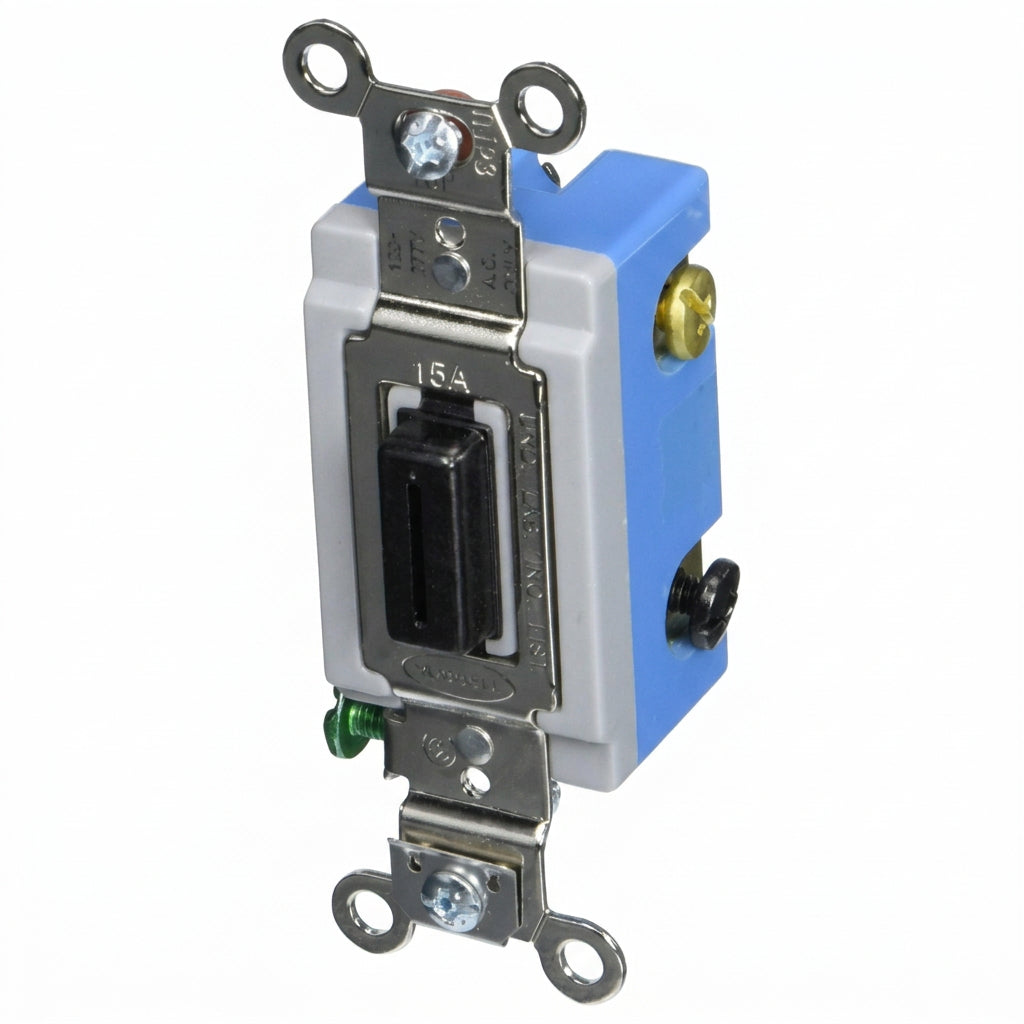

Hubbell Extra Heavy Duty Industrial Grade 3-Way Locking Toggle Switch (15A/ 120/277V AC), Model HBL1203L
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This Hubbell extra heavy duty industrial-grade locking toggle switch provides three-way control for general-purpose AC circuits. Its locking action lets you lock circuits on or off, while back and side wiring options and a built-in strip gauge help simplify installation.
Key Features
- Locking Control: Lock circuits on or off where controlled switching is needed.
- Three-Way Switching: SPDT action supports three-way general-purpose AC circuit control.
- Wiring Flexibility: Back and side wiring accommodate #14–#10 AWG solid or stranded copper conductors only.
- Installation Details: Large brass binding-head screws with deep slots and a strip gauge help with conductor preparation and termination.
- Industrial-Grade Construction: Thermoset top and base materials, silver-alloy contacts and brass terminal screws suit extra heavy duty switching applications.
Specifications
| Switch Type | Extra heavy duty industrial-grade locking toggle switch |
| Switching Configuration | Three-way; single-pole, double-throw (SPDT) |
| Current Rating | 15 A maximum continuous |
| Voltage Rating | 120/277 V AC; maximum working voltage 277 V AC |
| Wiring Method | Back and side wired |
| Conductor Compatibility | #14–#10 AWG solid or stranded copper wire only |
| Colour and Key Guide | Black; black metallic key guide |
| Body Materials | Thermoset top; blue thermoset base |
| Contacts and Screws | Silver-alloy contacts; brass terminal screws; brass ground screw with green finish |
| Operating Temperature | −40°C to 75°C continuous; minimum temperature rating applies without impact |
| Dielectric Strength | Withstands 1,500 V AC minimum for 1 minute |
| Overload Performance | Minimum 4.8 times rated current for 100 cycles |
| Temperature Rise | 30°C maximum at rated current |
| Flammability Rating | UL 94V-2 |
| Dimensions | 4.06 in L × 1.31 in W × 1.13 in H |
| Weight | 0.2 lb |
