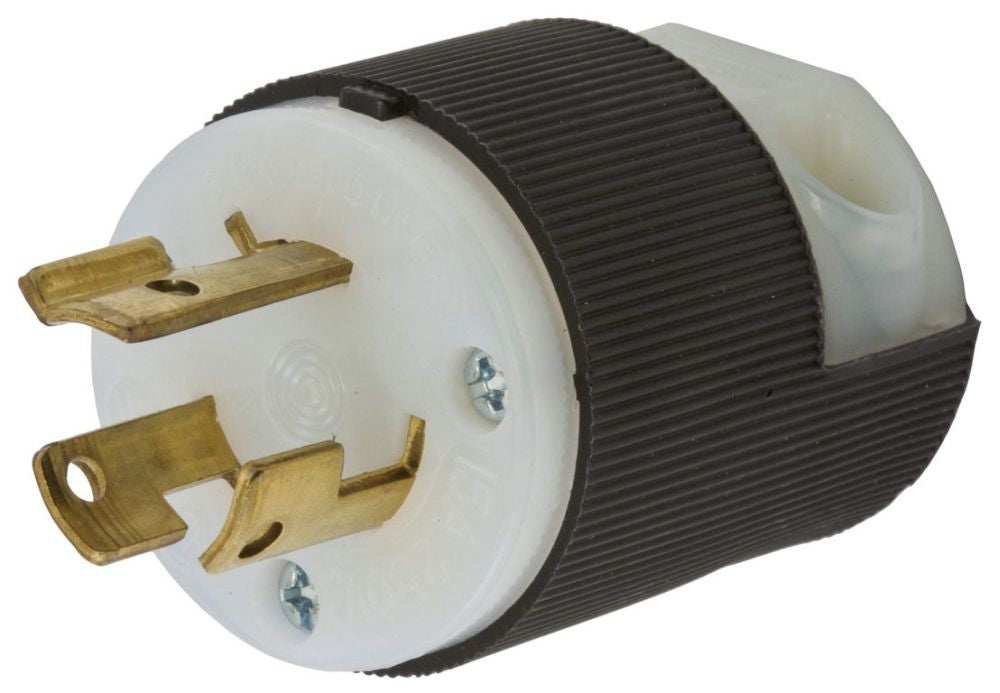

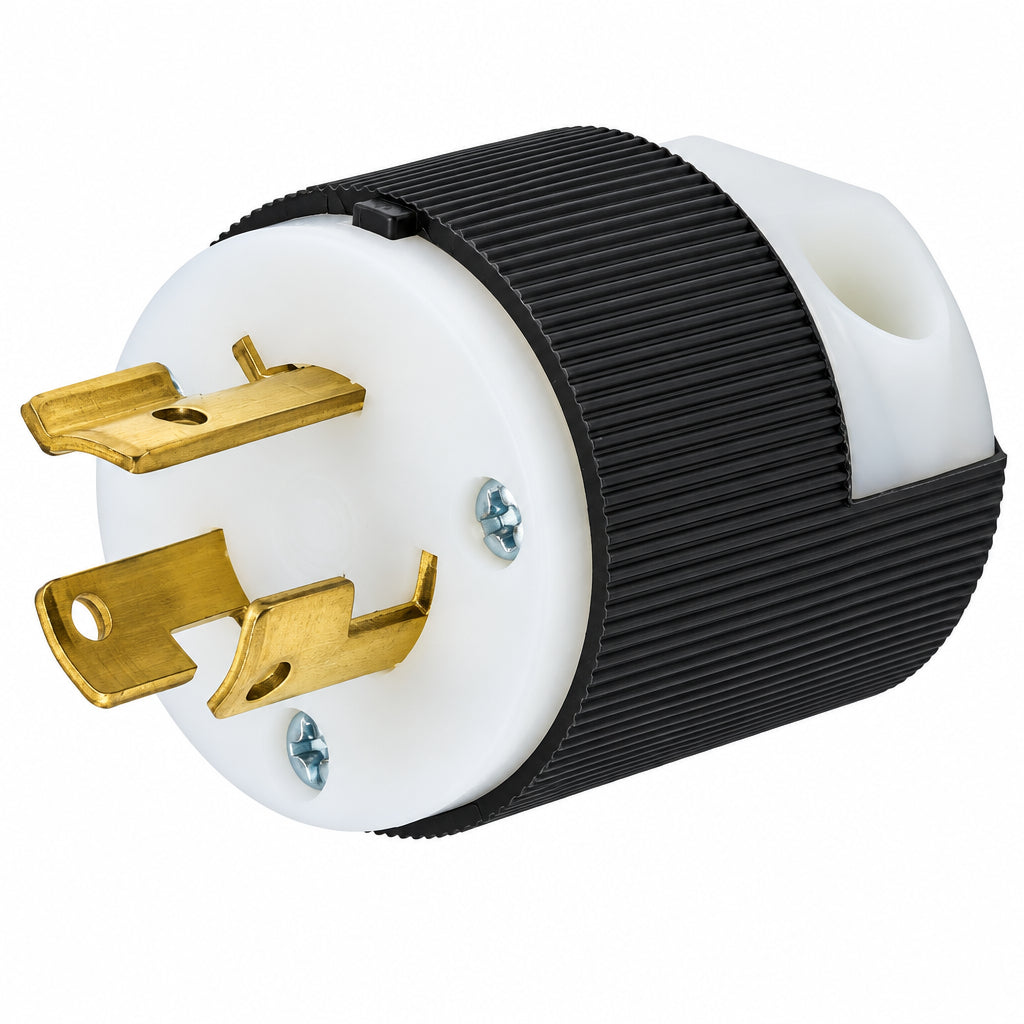

Hubbell 15 Amp 250V Industrial Grade Twist-Lock Male Plug, Model HBL4570C
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This Hubbell Twist-Lock® Insulgrip® male plug provides a locking connection for 15 A, 250 V industrial equipment in indoor dry environments unless protected by additional means. Its ribbed nylon housing offers a secure grip with impact and chemical resistance, while the roomy wiring chamber helps simplify cord wiring on the job site.
Specifications
| Brand | Hubbell Wiring Device-Kellems |
| Device Type | Industrial Twist-Lock® Insulgrip® male grounding plug |
| Current Rating | 15 A |
| Voltage Rating | 250 V |
| NEMA Configuration | L6-15P |
| Poles / Wires | 2-pole, 3-wire grounding |
| Phase | Single phase |
| Maximum Horsepower | 1.5 hp |
| Connection | Pressure terminal screws |
| Wire Size | #16 to #8 AWG, stranded copper wire only |
| Cord Diameter Range | 0.230–0.720 in |
| Mounting | Cord mounted |
| Colour | Black and white |
| Housing / Cord Clamp | Nylon; ribbed housing is impact and chemical resistant |
| Blade Construction | Brass blades with individually moulded face for each blade configuration |
| Assembly Screws | Nickel-plated steel |
| Terminal Clamp | Nickel-plated cold-rolled steel |
| Terminal Retainer | Clear polycarbonate |
| Terminal Screws | #8-32 brass; Phillips, slotted or Robertson drive |
| Terminal Identification | Identified in accordance with UL 498 |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Moisture Resistance | IP20 suitability |
| Environmental Conditions | Indoor dry unless protected by additional means |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C without impact |
| Size | Standard sized |
| Dimensions (L × W × H) | 1.53 × 1.53 × 1.97 in |
| Weight | 0.15 lb |
| UPC | 783585170008 |
