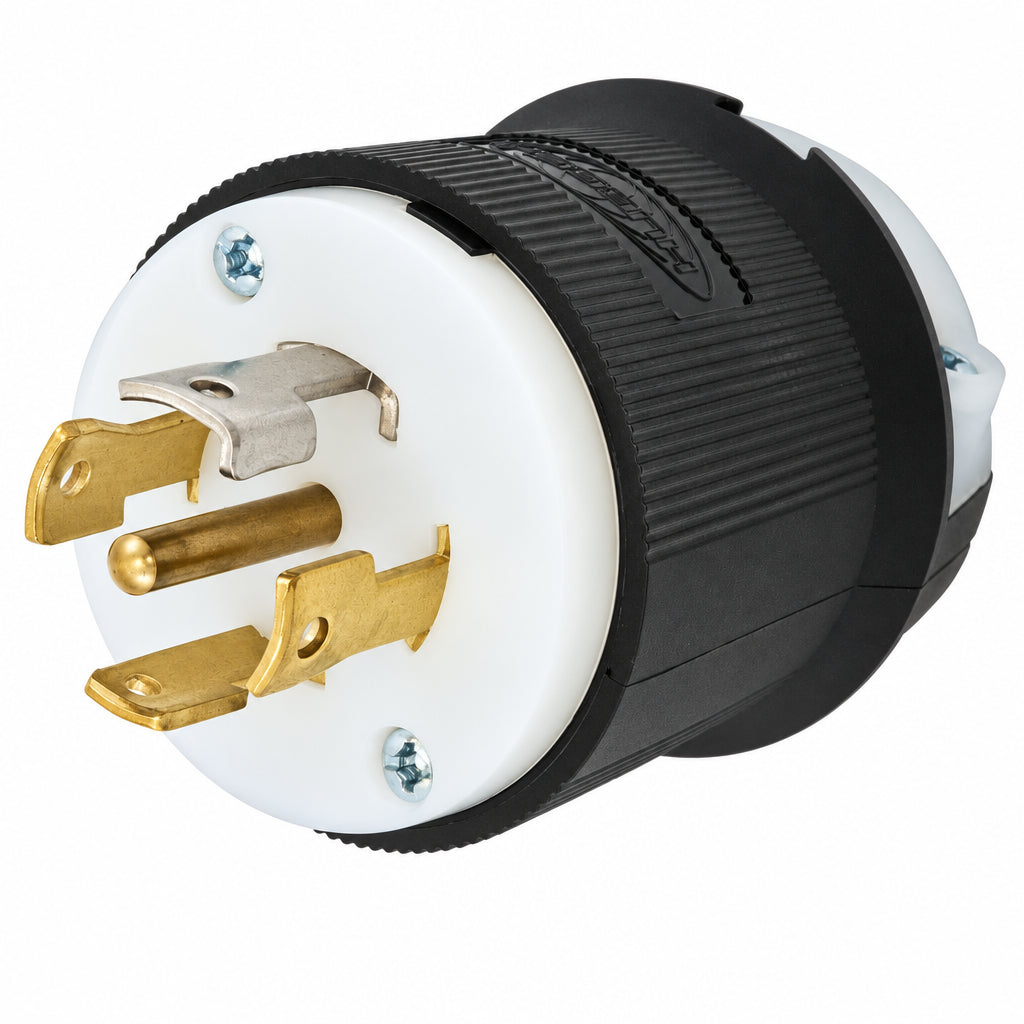

Hubbell 30 Amp 120/208V Industrial Grade Twist-Lock Male Plug, Model HBL2811
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Connect industrial equipment to 30A, 120/208V three-phase power with this Hubbell Twist-Lock® grounding male plug. Its ribbed nylon housing provides a secure grip and resistance to impact and chemicals, while the cord grip protects terminations from excess strain. Funnel-shaped wire entries simplify termination, and an integral dust shield helps keep contaminants out of the wiring chamber during indoor, dry-location installations.
Specifications
| Brand | Hubbell Wiring Device-Kellems |
| Device Type | Industrial Insulgrip® Twist-Lock® grounding male plug |
| NEMA Configuration | L21-30P |
| Current Rating | 30 A |
| Voltage and Phase | 120/208 V AC, three-phase WYE |
| Poles and Wires | 4-pole, 5-wire grounding |
| Termination | Pressure terminal screws; terminals identified in accordance with UL 498 |
| Conductor Size | #16 to #8 AWG stranded copper wire only |
| Cord Diameter Range | 0.350–1.150 in |
| Mounting | Cord-mounted |
| Colour | Black and white |
| Housing and Cord Clamp | Nylon; ribbed housing with impact and chemical resistance |
| Blades | Brass |
| Assembly Screws | Nickel-plated steel |
| Terminal Clamp | Nickel-plated cold-rolled steel |
| Terminal Retainer | Clear polycarbonate |
| Terminal Screws | #10-32 brass; Phillips, slotted or Robertson drive |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Flammability | HB or better per UL 94 / CSA 22.2 No. 0.17 |
| Moisture Resistance | IP20 suitability |
| Environmental Conditions | Indoor dry locations unless protected by additional means |
| Operating Temperature | Maximum continuous 75°C; minimum −40°C without impact |
| Dimensions (L × W × H) | 2.33 × 2.33 × 2.75 in; standard size |
| Weight | 0.35 lb |
| UPC | 783585039633 |
