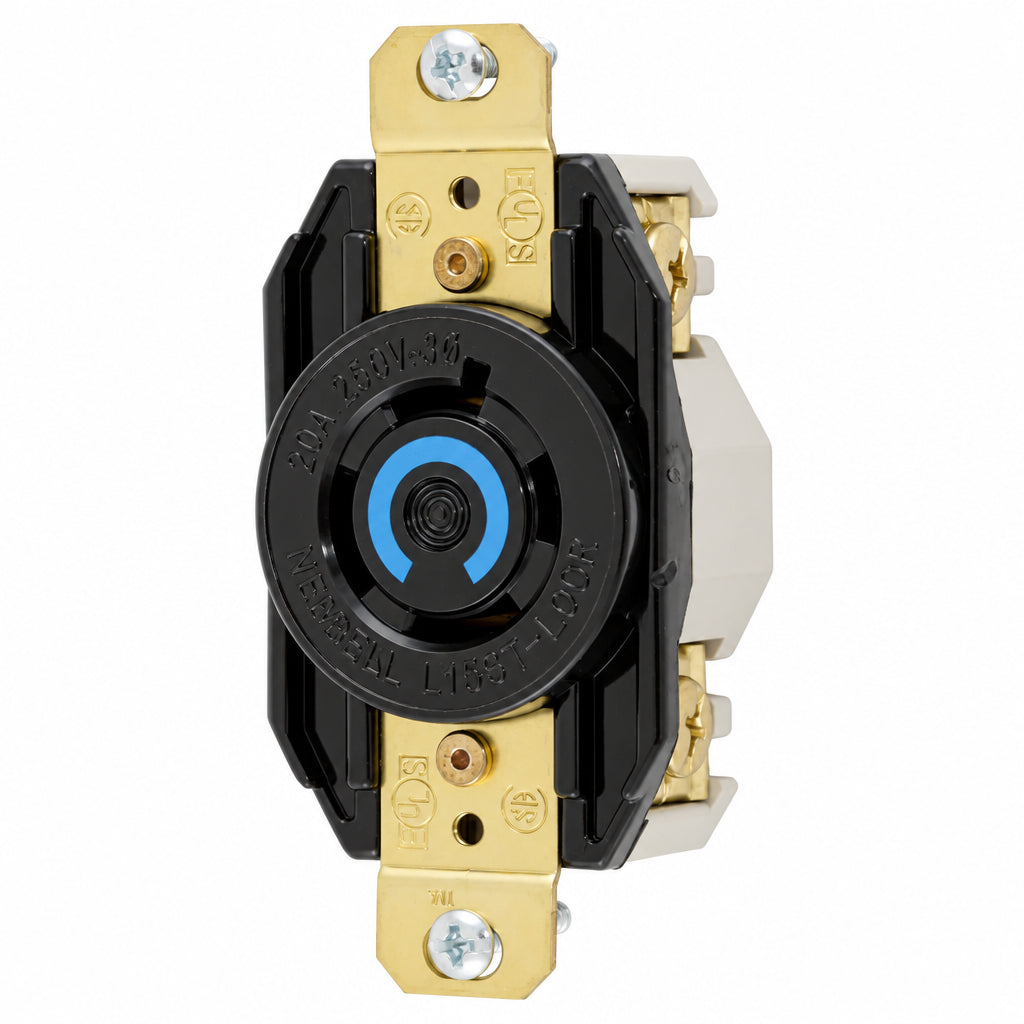

Hubbell 20 Amp 250V Industrial Grade Twist-Lock Flush Receptacle, Model HBL2420
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This industrial Twist-Lock® flush receptacle provides a locking connection for three-phase equipment in indoor dry work areas. Wire-restraint recesses help reduce terminal loosening, while voltage colour coding helps installers match compatible devices. Its all-brass mounting and grounding system offers a lower-resistance ground path and greater corrosion resistance than steel mounting systems.
Specifications
| Brand | Hubbell Wiring Device-Kellems |
| Device Type | Industrial Twist-Lock® single flush receptacle |
| Current Rating | 20 A |
| Voltage Rating | 250 V AC, three-phase |
| NEMA Configuration | L15-20R |
| Poles and Wires | 3-pole, 4-wire grounding |
| Maximum Horsepower | 3 hp |
| Wiring Method | Back and side wired; screw terminals with wire-restraint recesses |
| Conductor Compatibility | #16 to #8 AWG solid or stranded copper wire only |
| Colour | Black; face colour coding by voltage |
| Face Material | Nylon |
| Base Material | Glass-reinforced thermoplastic polyester (RTP) |
| Contacts and Mounting Strap | Brass |
| Terminal Screws | #10-32 brass |
| Mounting | Screw mounting; standard-sized product |
| Environmental Conditions | Indoor dry unless protected by additional means |
| Moisture Resistance | IP20 suitability |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C without impact |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Flammability | V2 or better per UL 94 / CSA 22.2 No. 0.17 |
| Terminal Identification | Terminals identified in accordance with UL 498 |
| Dimensions (L × W × H) | 3.28 × 1.7 × 1.23 in |
| Weight | 0.25 lb |
| UPC | 783585235752 |
