Hubbell 30 Amp 120/208V EdgeConnect Twist-Lock Receptacle w/ Spring Termination, Model HBL2810ST
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

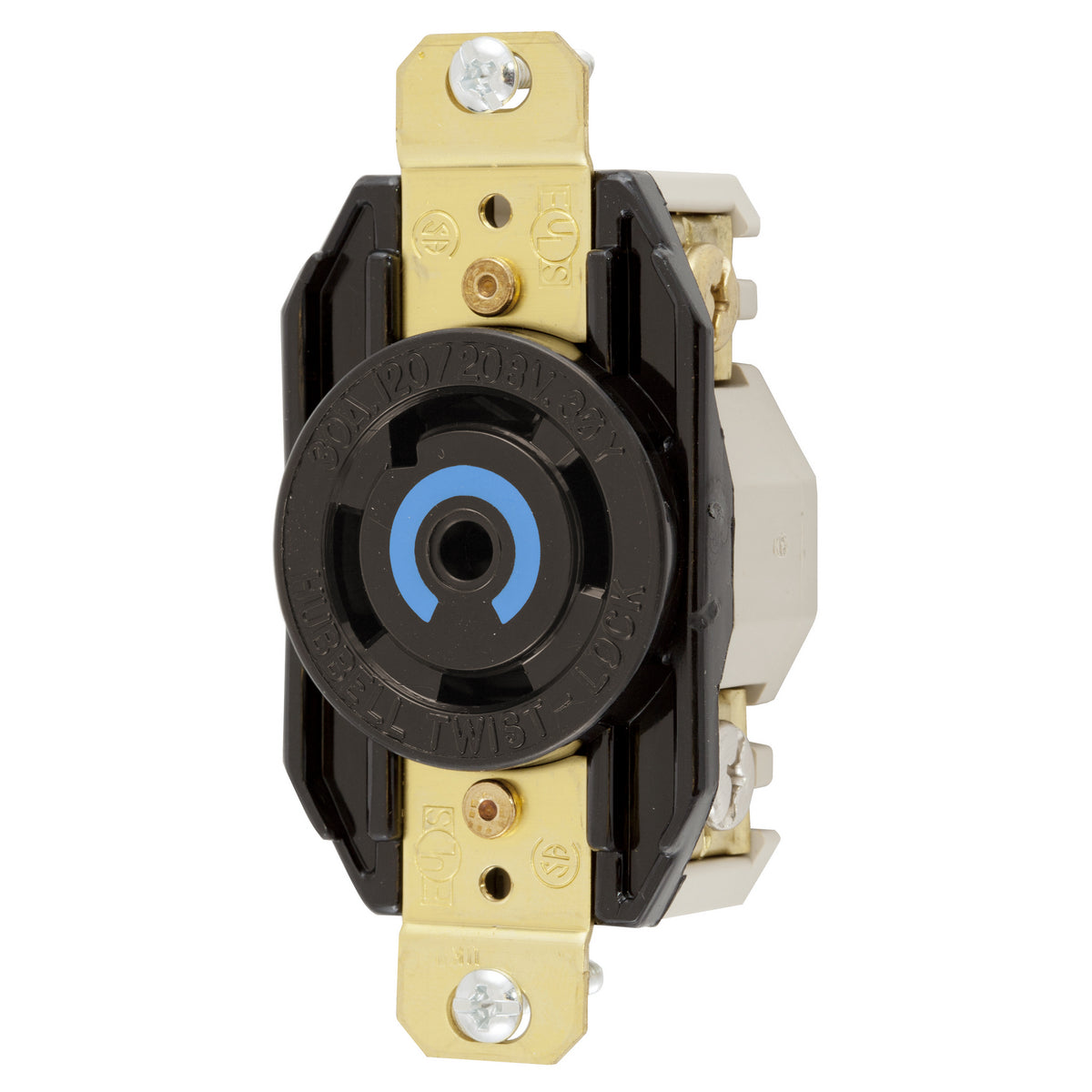

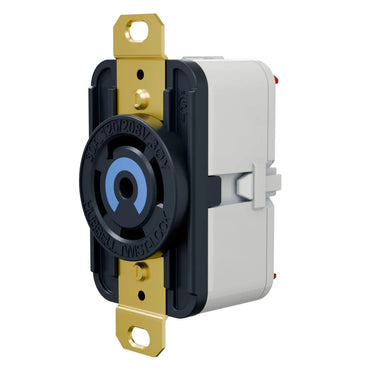

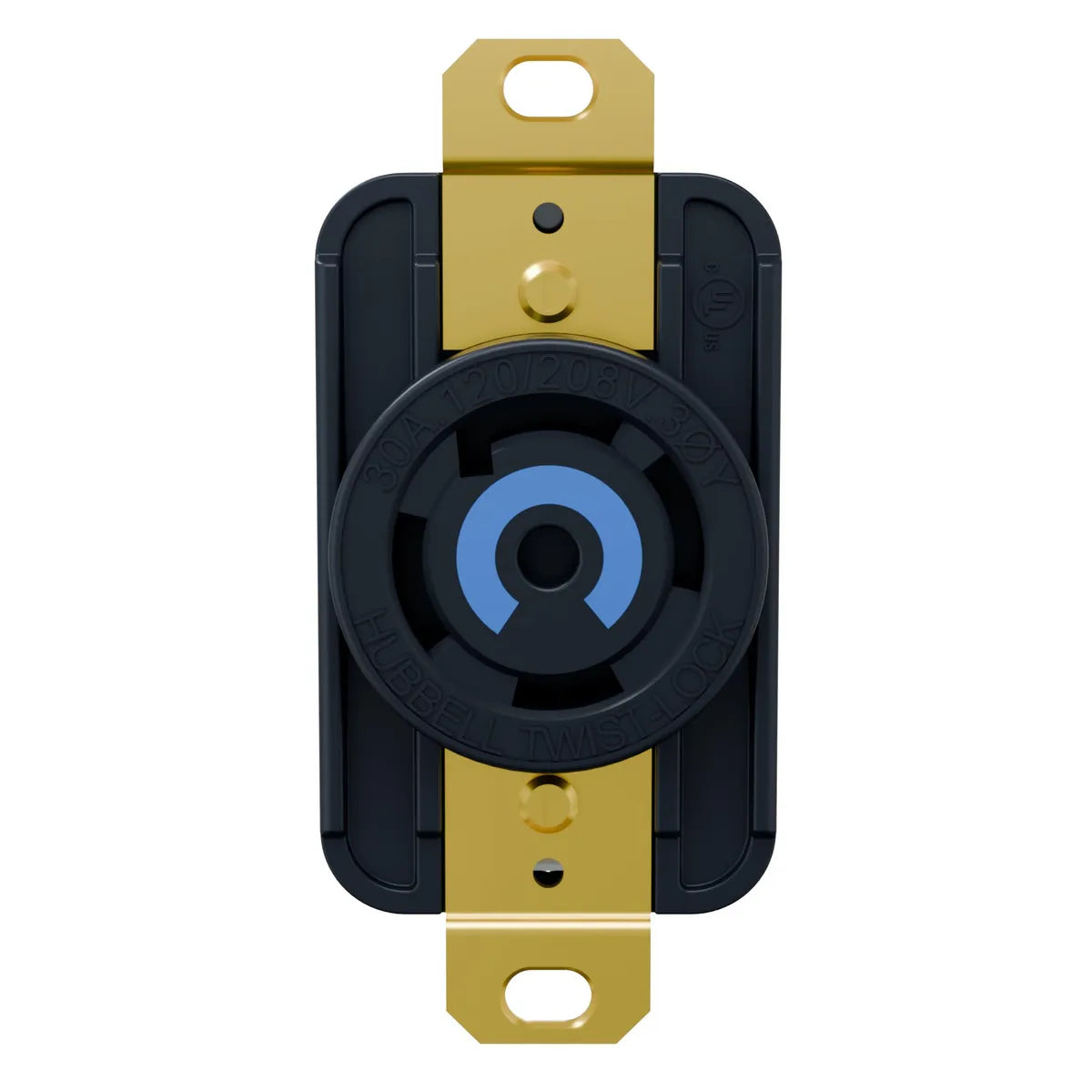

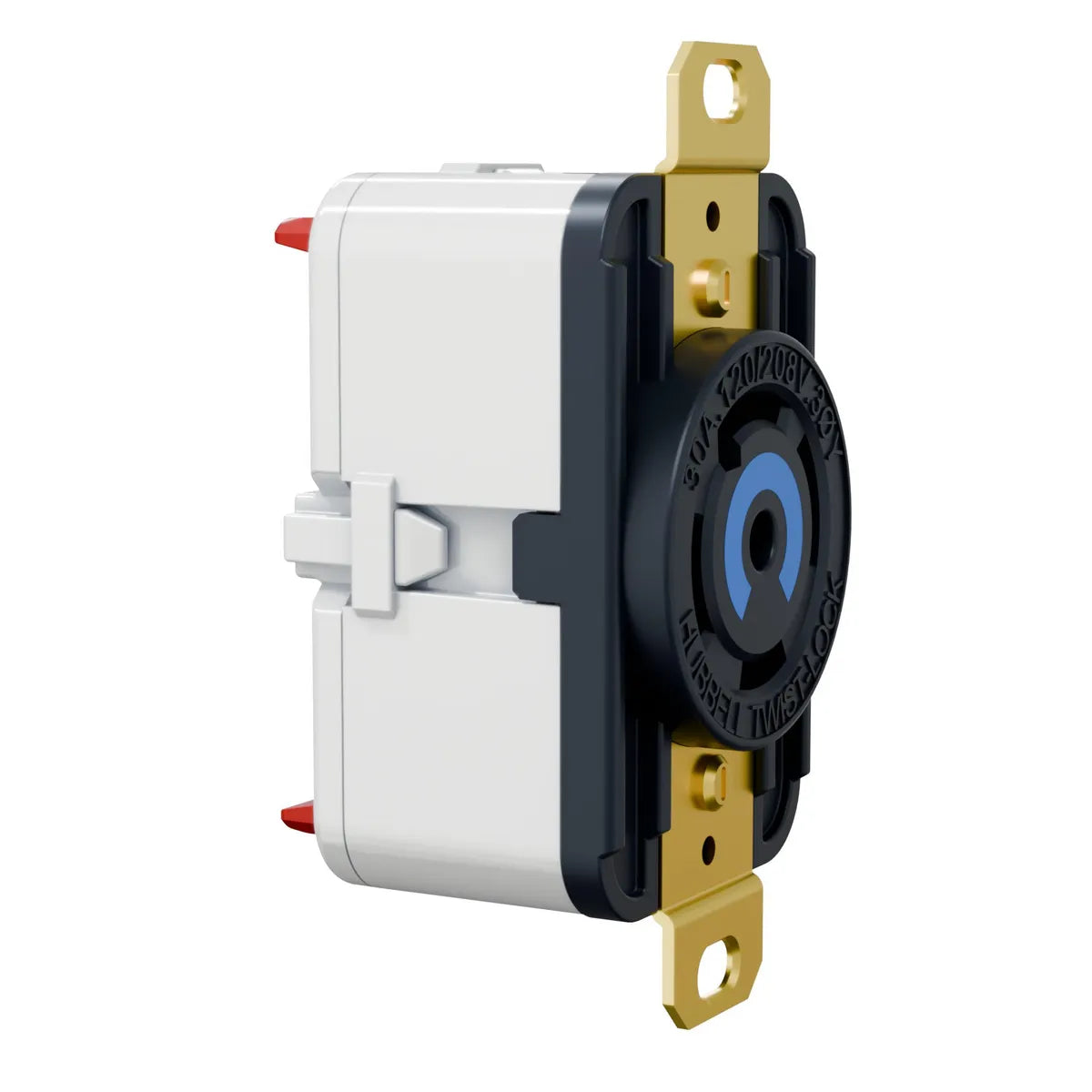

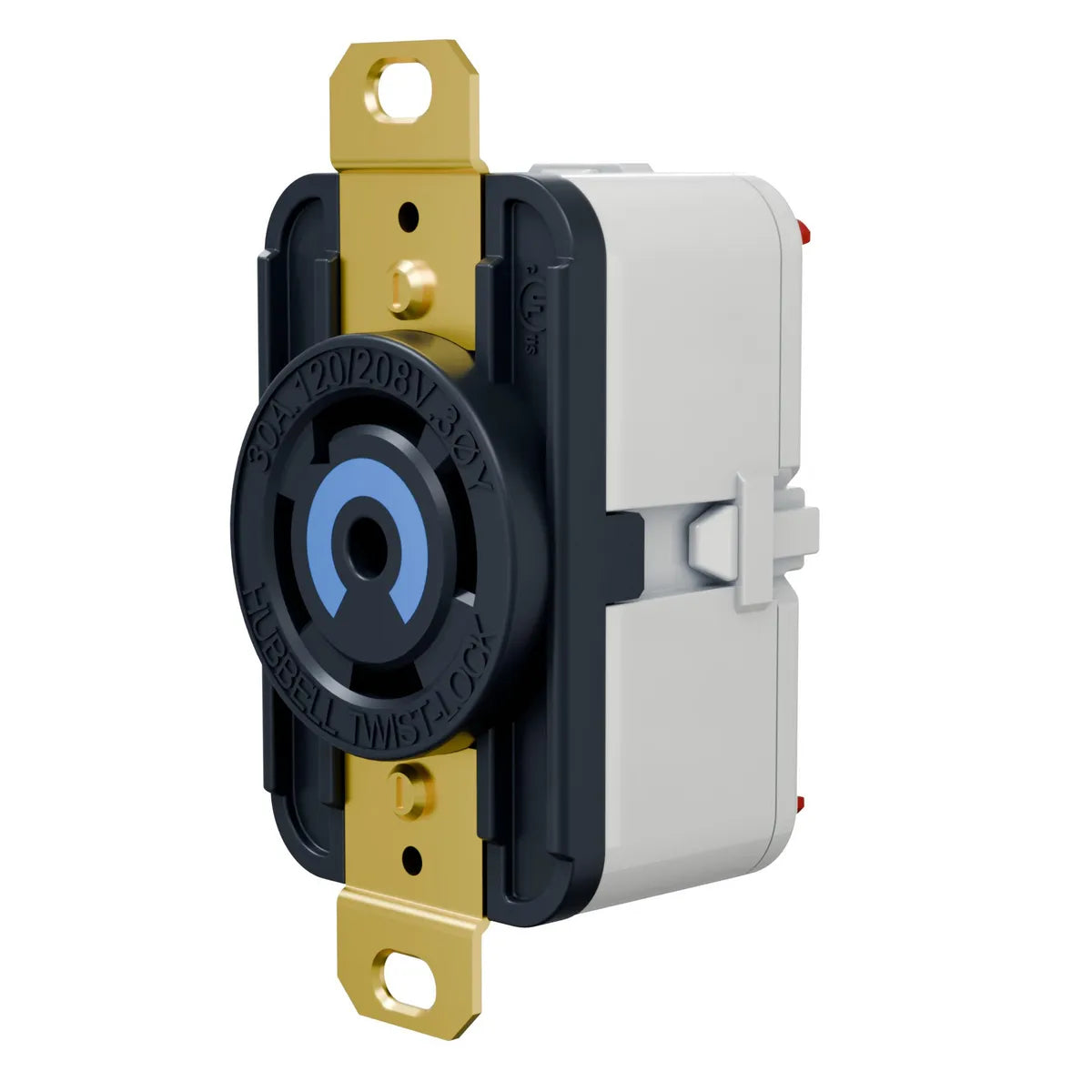

The Hubbell EdgeConnect™ Twist-Lock® receptacle speeds up termination for industrial and job-site electrical installations without requiring a screwdriver or torque wrench. Spring termination eliminates strand relaxation, while the high-impact, abuse-resistant nylon face helps withstand demanding use. Voltage-based face colour coding helps installers locate and mate the correct devices.
Specifications
| Brand | Hubbell |
| Product Type | EdgeConnect™ Twist-Lock® flush receptacle |
| Amperage Rating | 30 A |
| Voltage Rating | 120/208 V AC |
| Phase Configuration | 3-phase wye |
| NEMA Configuration | L21-30R |
| Poles / Wires | 4-pole, 5-wire grounding |
| Termination | Spring termination |
| Wire Size, Solid | 14–10 AWG |
| Wire Size, Stranded | 14–8 AWG, including compact stranded |
| Face Material | High-impact, abuse-resistant nylon |
| Colour | Black |
| Location Rating | Dry location |
| Dimensions (L × W × H) | 3.28 × 1.7 × 1.468 in |
| Weight | 0.36 lb |
| UPC | 783585788524 |
