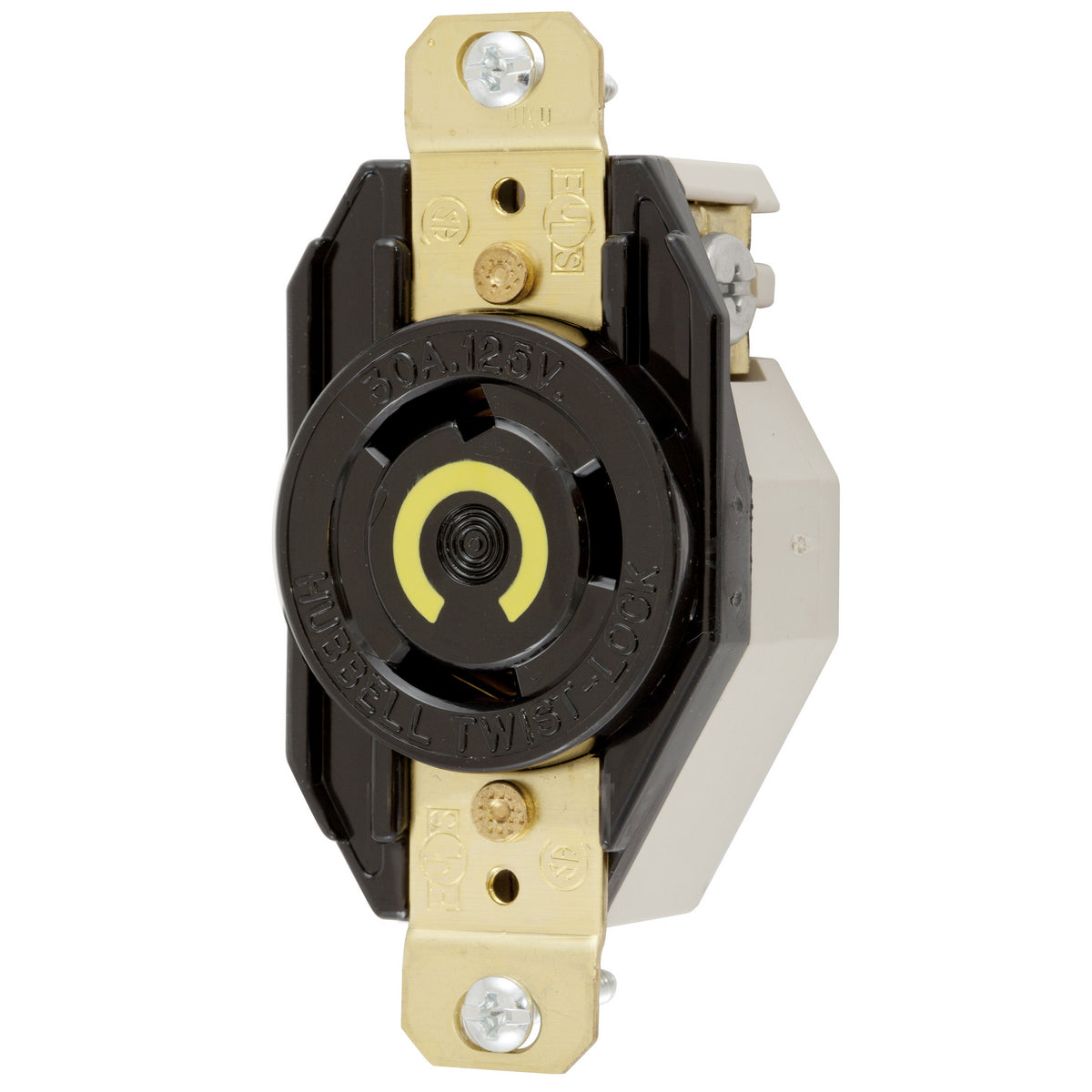

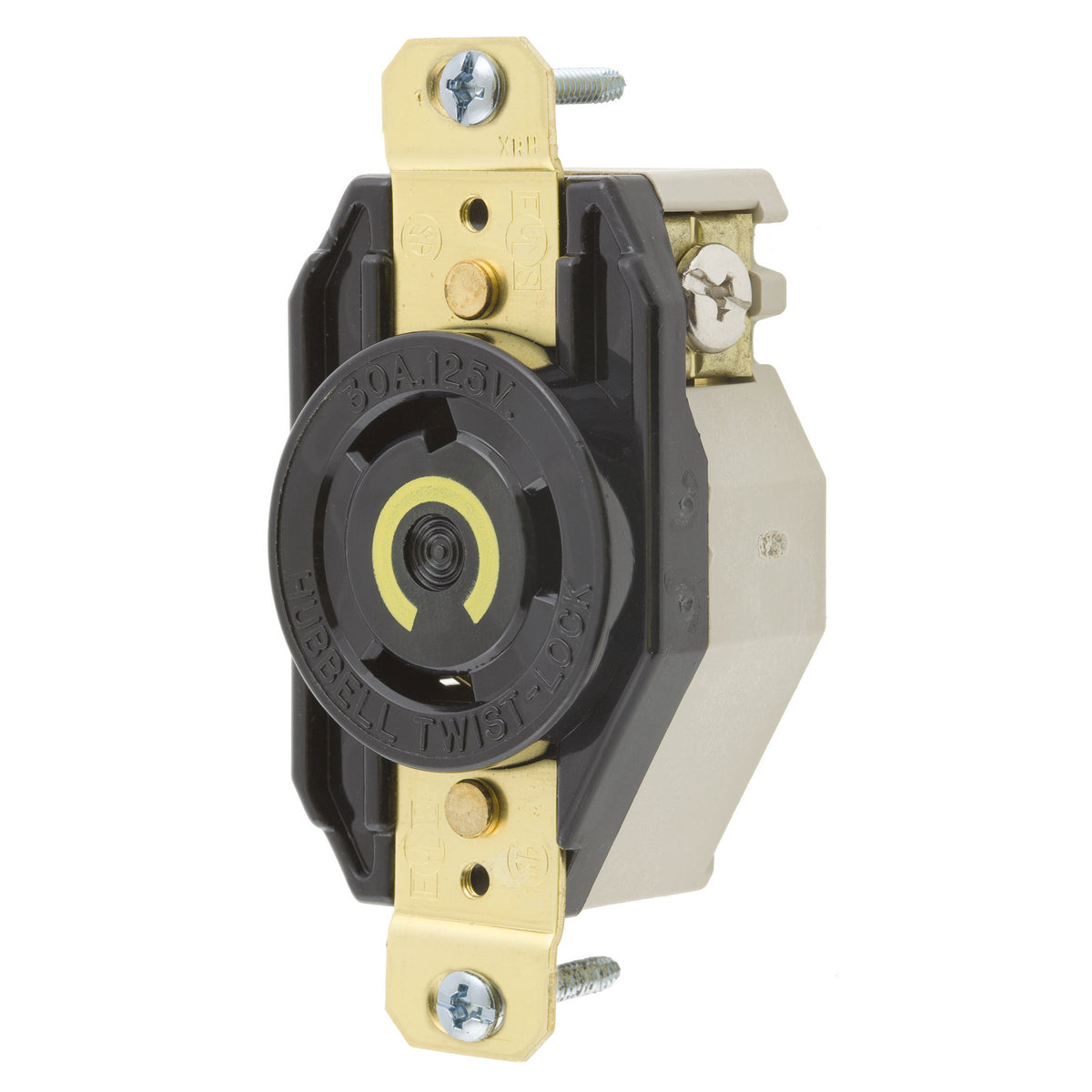

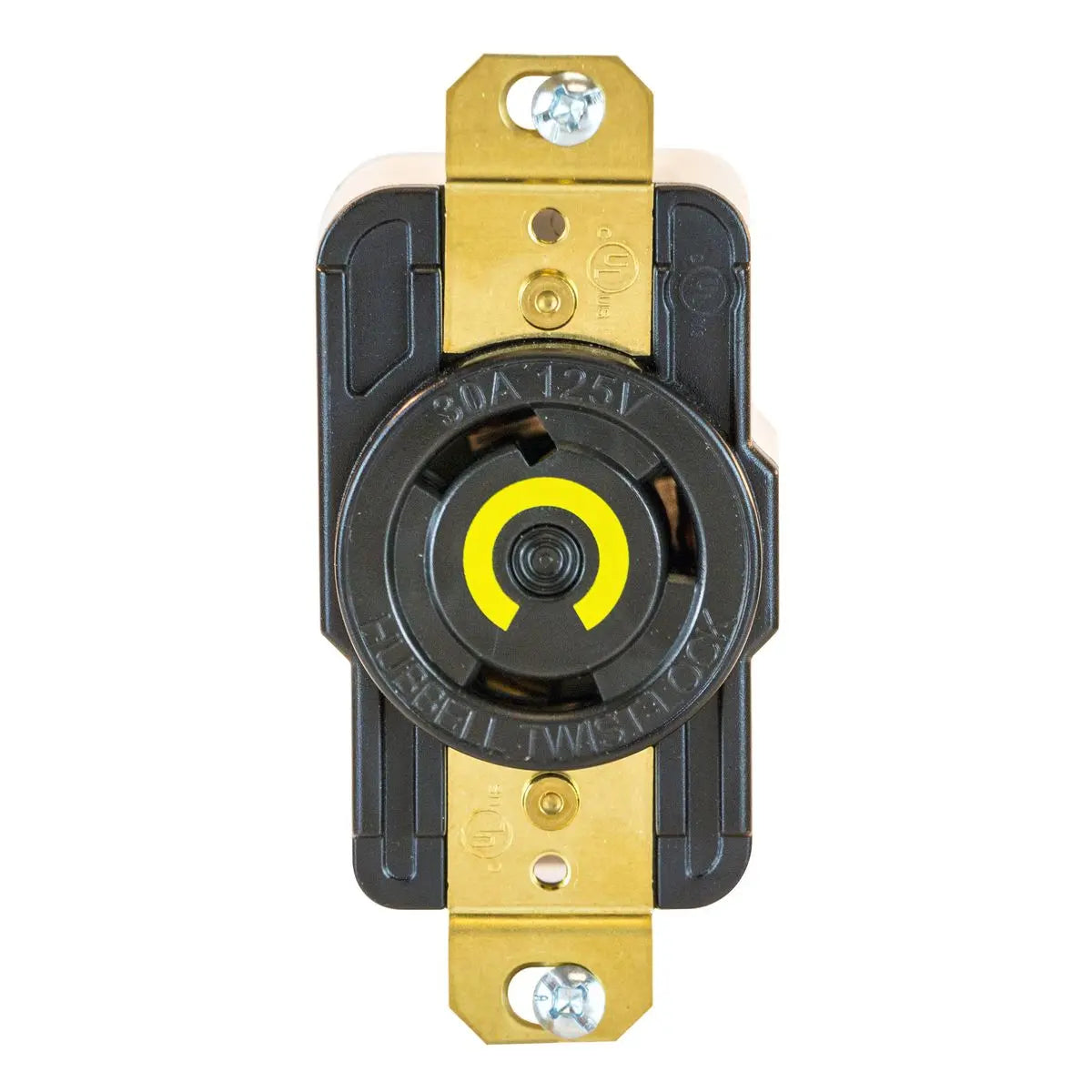

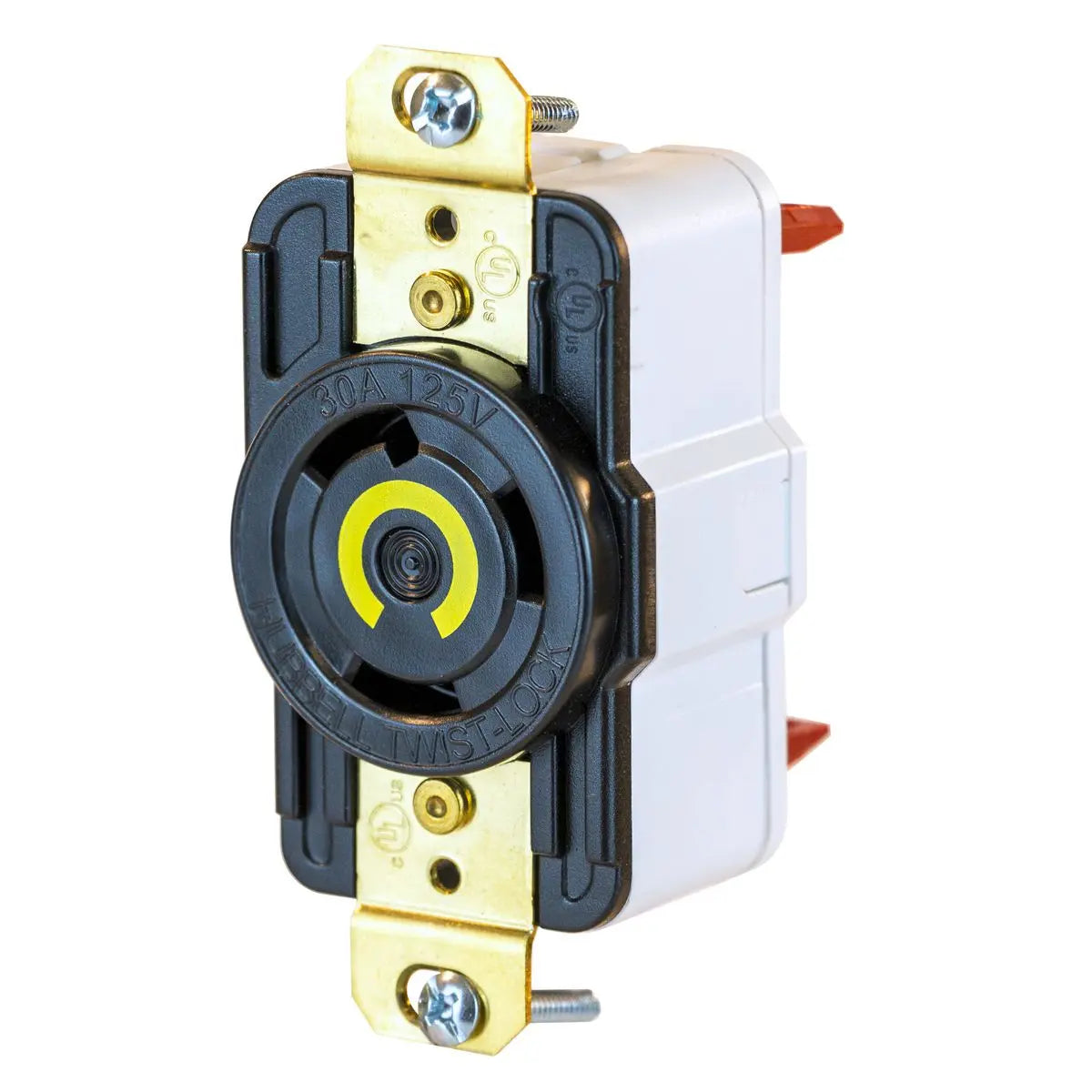

Hubbell 30 Amp 125V EdgeConnect Twist-Lock Receptacle w/ Spring Termination, Model HBL2610ST
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Speed up heavy-duty industrial installations with this Hubbell EdgeConnect™ Twist-Lock® receptacle, featuring spring termination that eliminates strand relaxation without requiring a screwdriver or torque wrench for termination. Its high-impact, abuse-resistant nylon face stands up to demanding job-site use, while voltage colour coding helps identify the correct mating device.
Specifications
| Receptacle Type | Single flush-mount Twist-Lock® receptacle |
| Application | Heavy-duty industrial |
| Current Rating | 30 A |
| Voltage Rating | 125 V |
| NEMA Configuration | L5-30R |
| Poles and Wires | 2-pole, 3-wire grounding |
| Phase | Single phase |

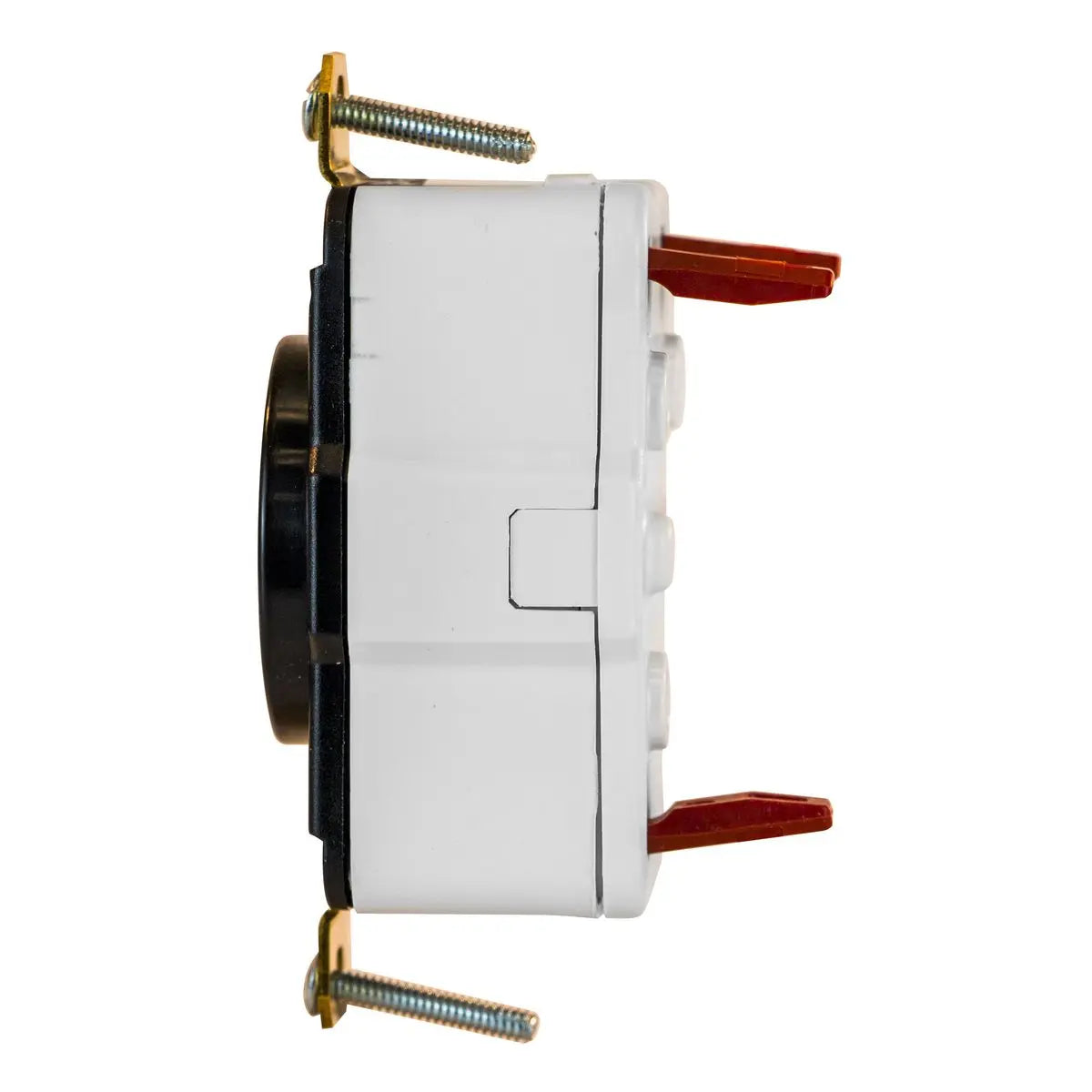

| Termination | EdgeConnect™ spring termination |
| Wire Size | 14–10 AWG solid; 14–8 AWG stranded, including compact stranded |
| Material | High-impact, abuse-resistant nylon face |
| Colour | Black |
| Mounting | Screw mount; standard size |
| Dimensions (L × W × H) | 3.28 × 1.70 × 1.47 in |
| Weight | 0.139 lb |
| Dielectric Strength | Withstands 2,000 V minimum |
| Temperature Rating | Maximum continuous: 75°C; minimum: -40°C without impact |
| Environmental Conditions | Indoor dry unless protected by additional means |
| Certifications and Ratings | UL Listed to UL 498; CSA Certified to Specification C22.2 No. 42; WR rating |
| UPC | 783585569567 |
