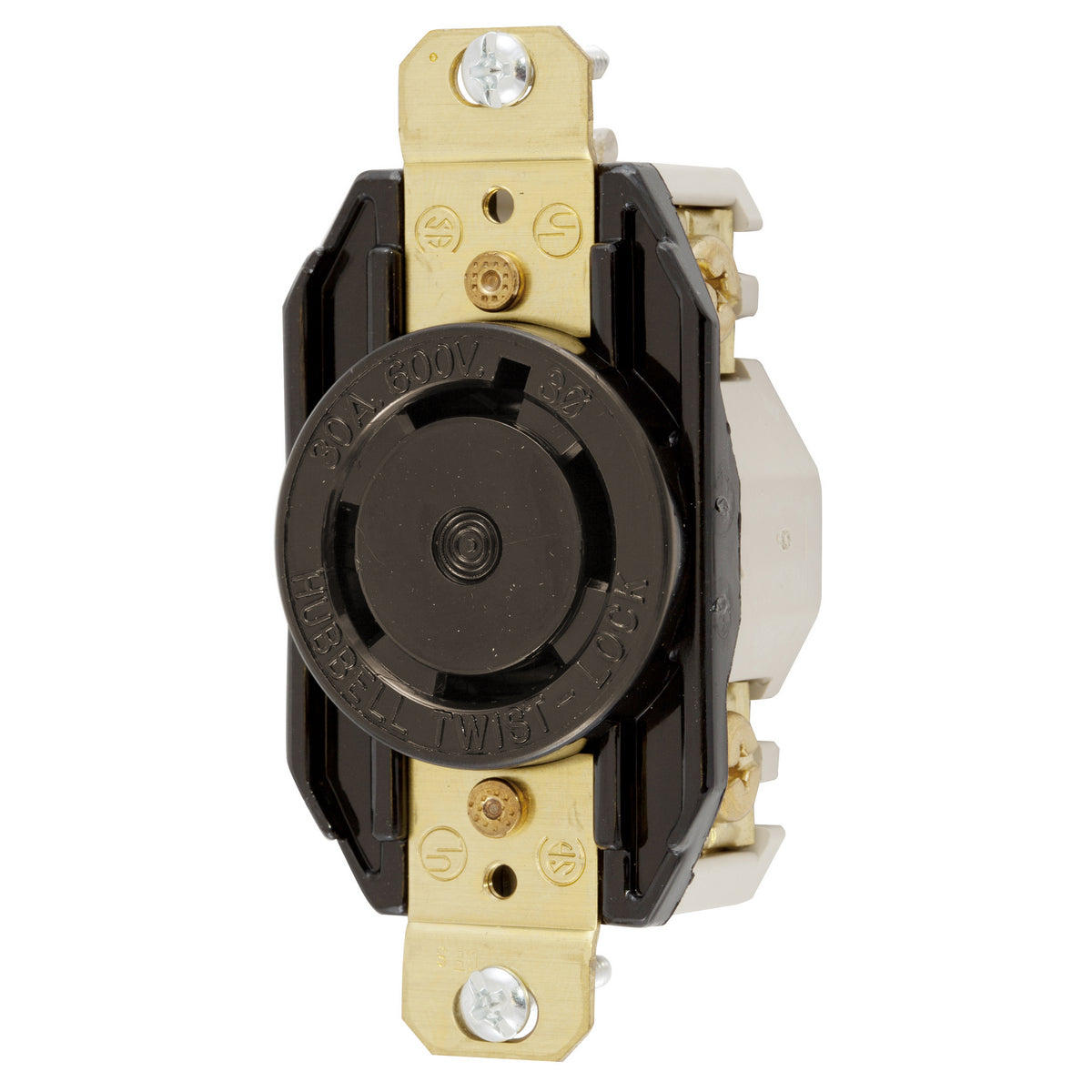

Hubbell 30 Amp 600V Industrial Grade Twist-Lock Flush Receptacle, Model HBL2740
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Built for industrial power connections, this Twist-Lock® flush receptacle supports 30A, 600V AC three-phase Delta circuits in indoor dry locations unless protected by additional means. Its high-impact, abuse-resistant nylon face and all-brass mounting and grounding system provide durability, a lower-resistance ground path and greater corrosion resistance than steel mounting systems. Back and side wiring with wire-restraint recesses helps reduce terminal loosening, while voltage-based face colour coding helps identify matching devices during installation and maintenance.
Specifications
| Brand | Hubbell Wiring Device-Kellems |
| Device Type | Industrial Twist-Lock® single flush receptacle |
| Current Rating | 30 A |
| Voltage and Phase | 600 V AC, three-phase Delta |
| NEMA Configuration | L17-30R |
| Poles and Wires | 3-pole, 4-wire grounding |
| Colour | Black |
| Wiring and Termination | Back and side wired screw terminals with wire-restraint recesses |
| Conductor Accommodation | #16 to #8 AWG, solid or stranded copper wire only |
| Face Material | High-impact, abuse-resistant nylon; voltage-based face colour coding |
| Base Material | Glass-reinforced thermoplastic polyester (RTP) |
| Contacts and Mounting Strap | Brass; all-brass mounting and grounding system |
| Terminal Screws | #10-32 brass |
| Mounting | Screw mounting; standard-sized product |
| Environmental Conditions | Indoor dry unless protected by additional means |
| Moisture Resistance | IP20 suitability |
| Operating Temperature | Maximum continuous: 75°C; minimum: -40°C without impact |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Flammability | V2 or better per UL94/CSA 22.2 No. 0.17 |
| Terminal Identification | In accordance with UL 498 |
| Dimensions (L × W × H) | 3.28 × 1.7 × 1.31 in |
| Weight | 0.25 lb |
| UPC | 783585236179 |
