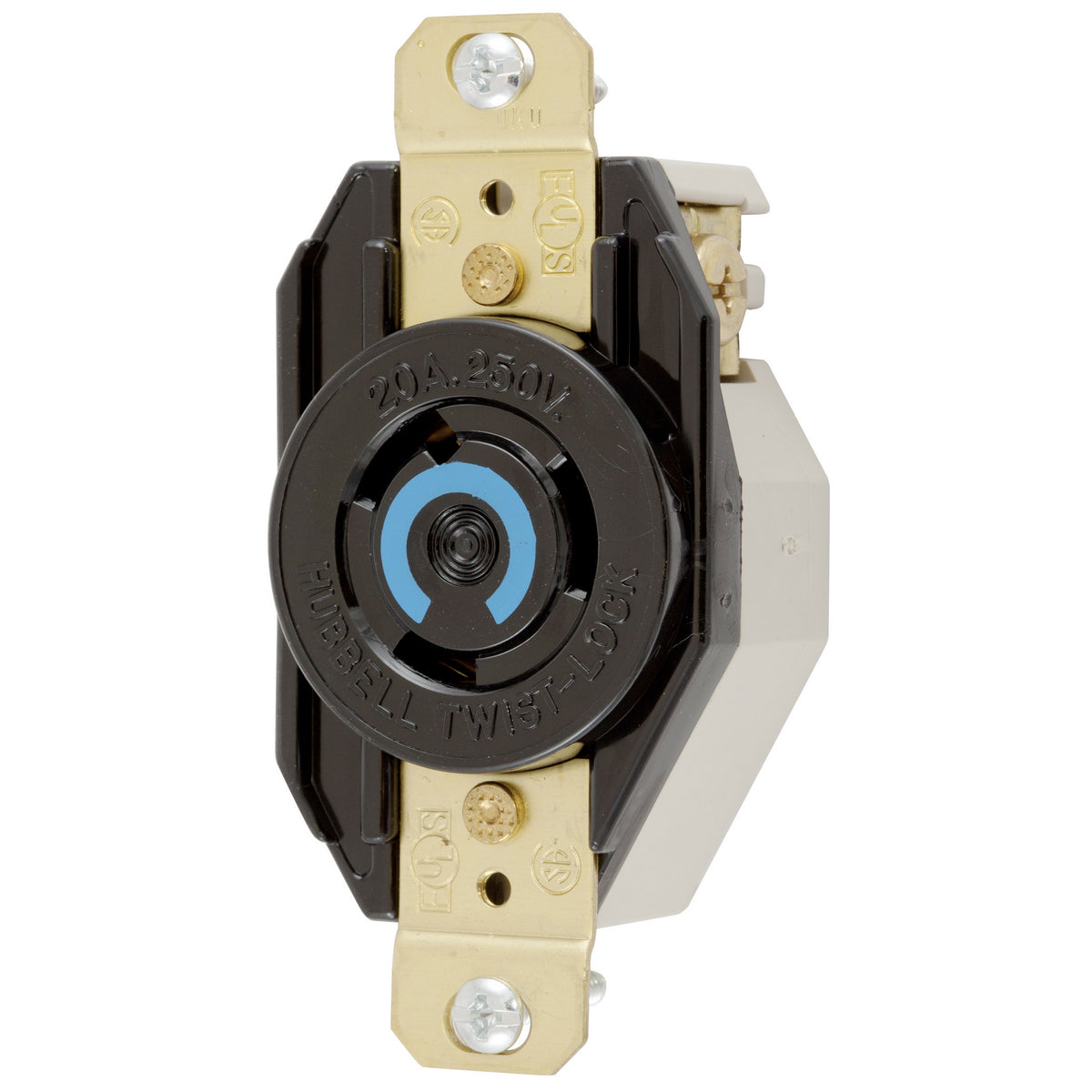

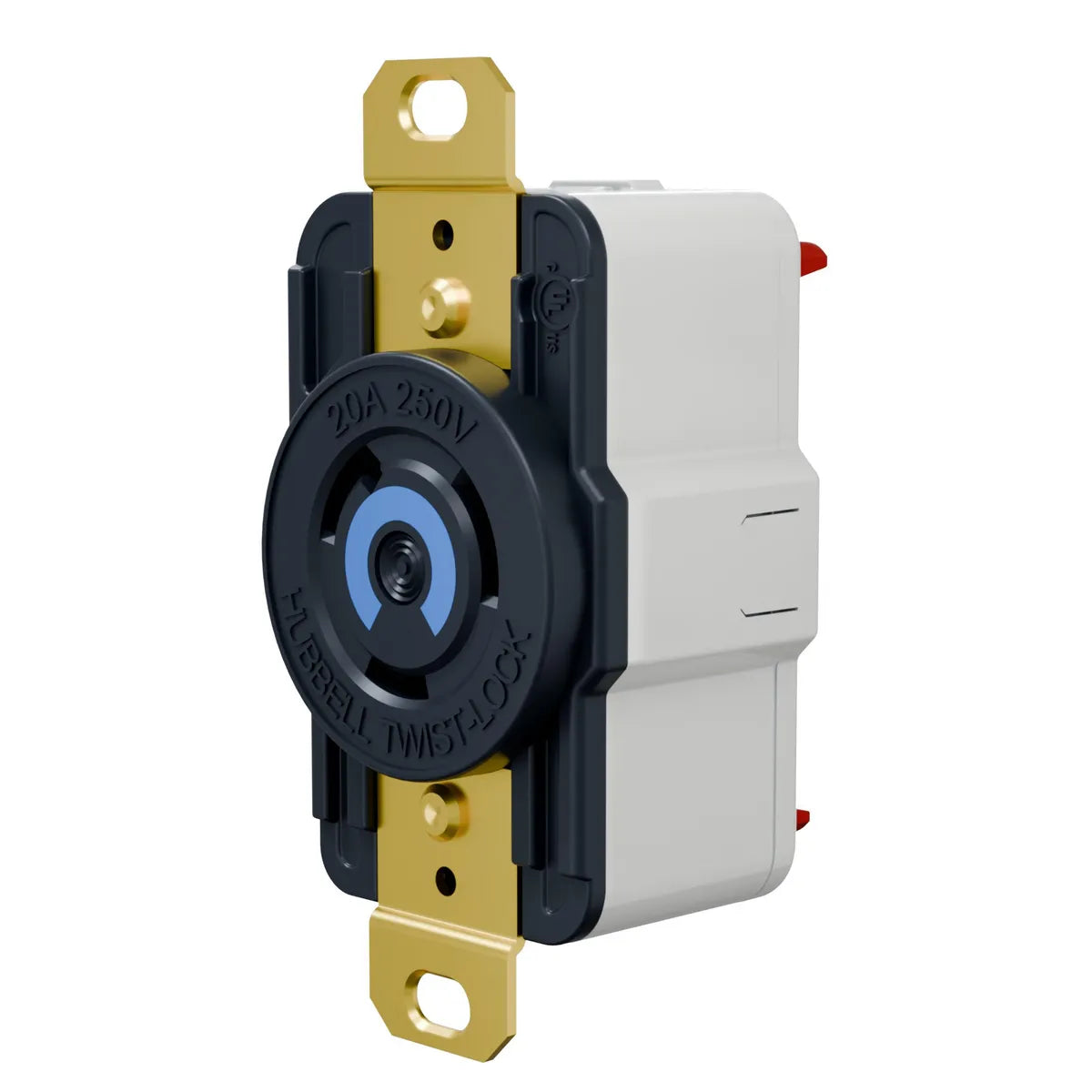

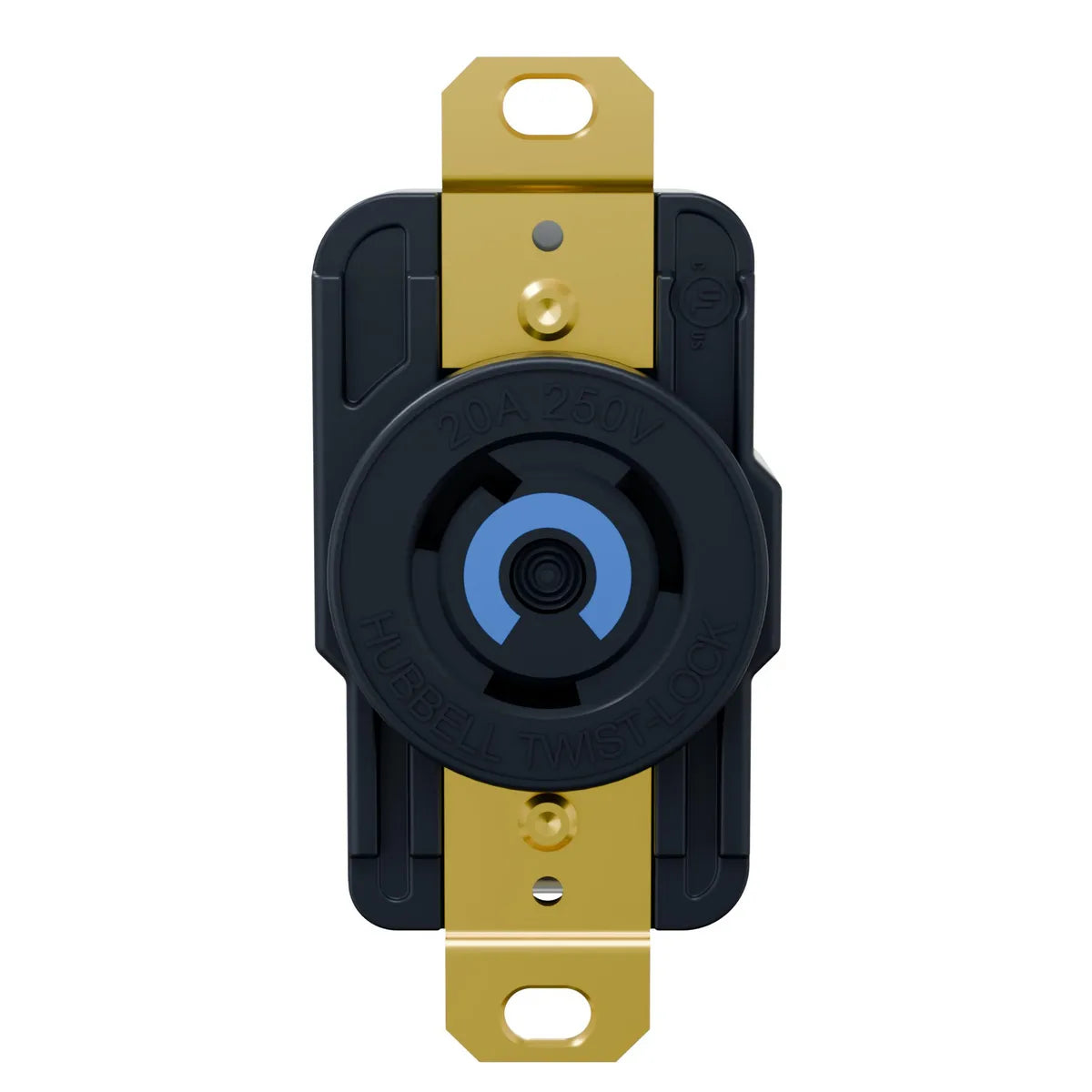

Hubbell 20 Amp 250V EdgeConnect Twist-Lock Receptacle w/ Spring Termination, Model HBL2320ST
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

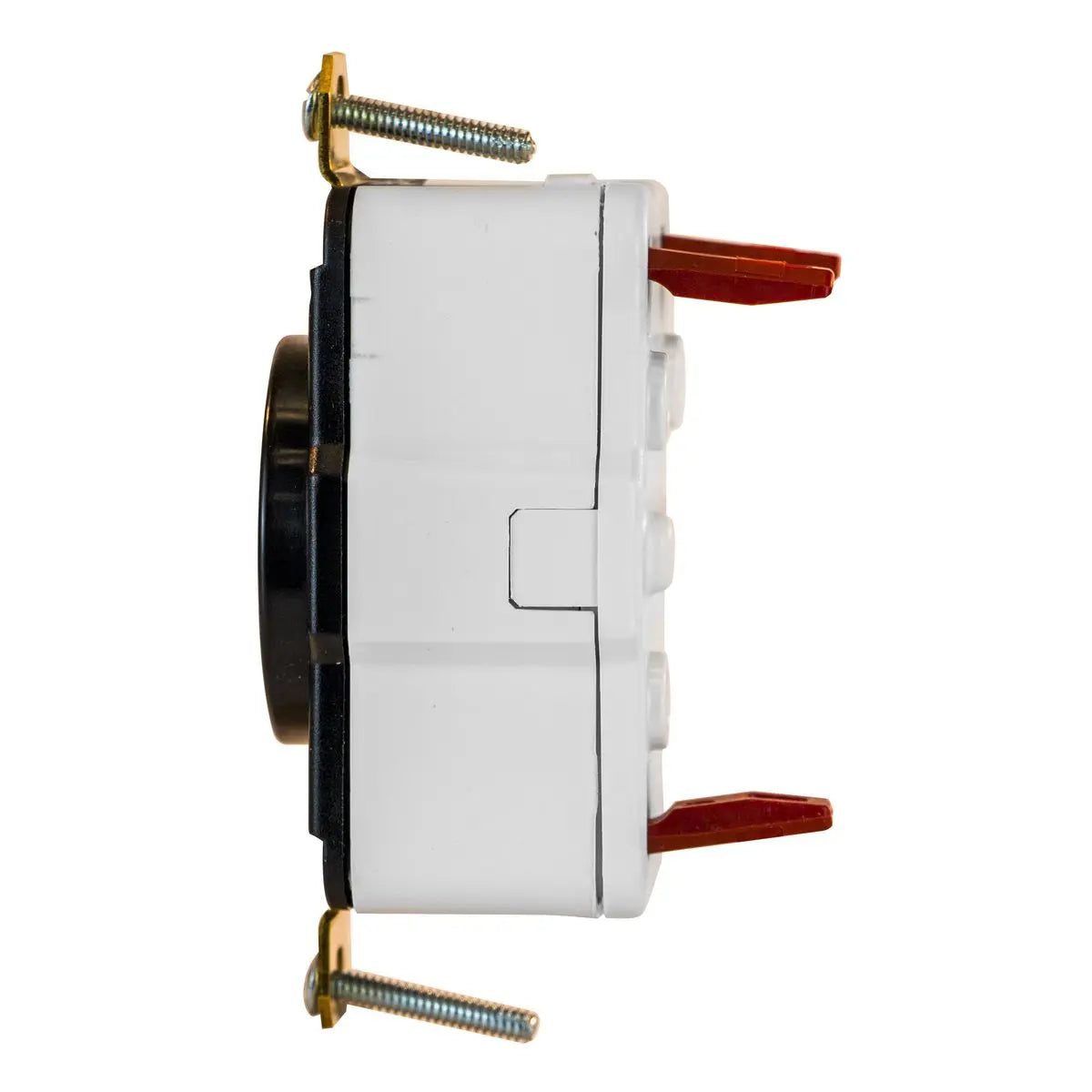

Speed up indoor equipment-power installations with Hubbell’s 20A, 250V EdgeConnect™ Twist-Lock® receptacle, featuring spring termination that eliminates the need for a screwdriver or torque wrench during conductor termination. Spring connections eliminate strand relaxation, while the high-impact, abuse-resistant nylon face stands up to demanding work environments. Voltage colour coding helps crews identify and mate the proper devices on the job site.
Specifications
| Device Type | Single flush Twist-Lock® receptacle |
| Current Rating | 20 A |
| Voltage Rating | 250 V AC |
| NEMA Configuration | L6-20R |
| Poles and Wires | 2-pole, 3-wire grounding |
| Phase | Single phase |

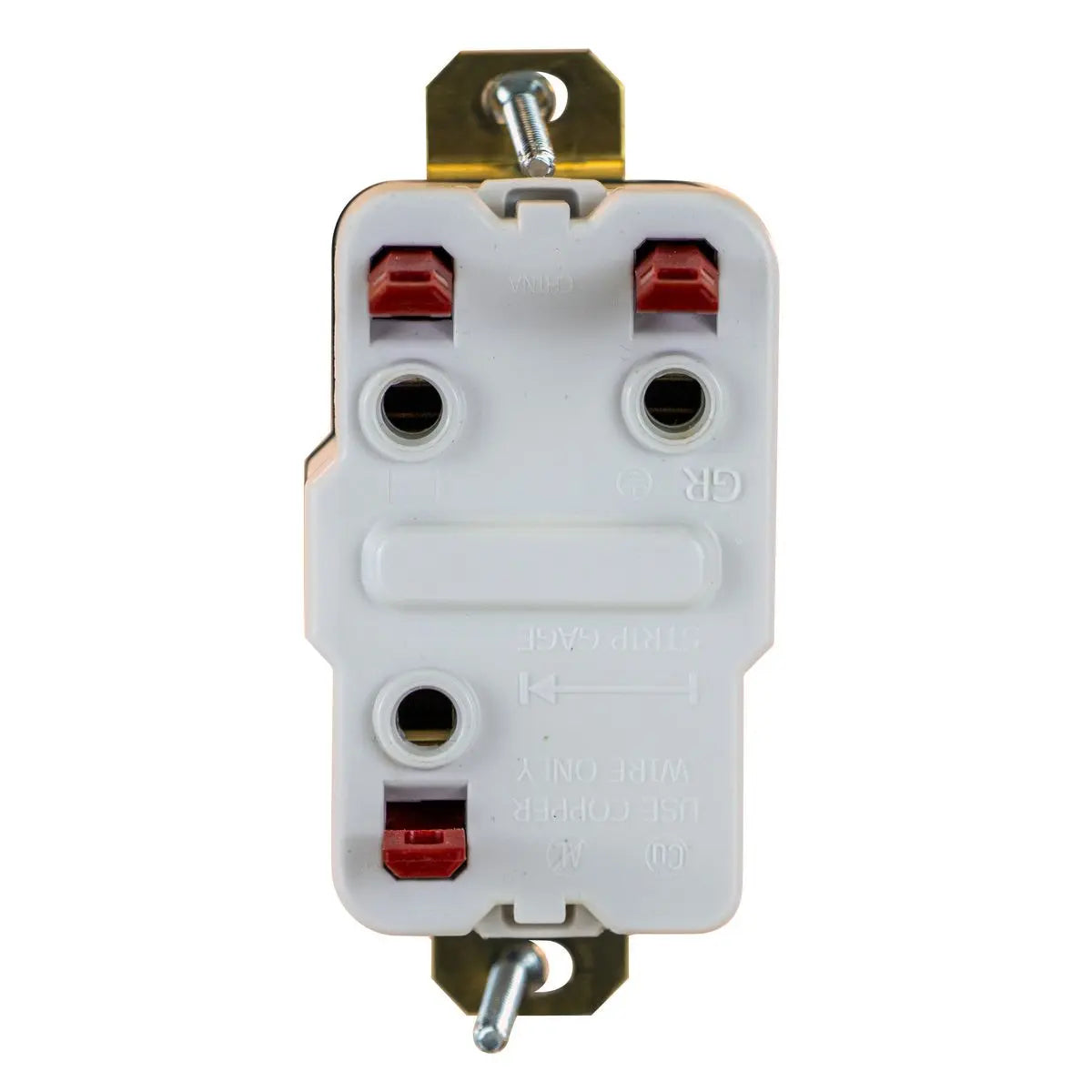

| Termination | EdgeConnect™ spring termination |
| Wire Size | 14–10 AWG solid; 14–8 AWG stranded, including compact stranded |
| Face Material | High-impact, abuse-resistant nylon |
| Colour | Black |
| Mounting | Screw mount |
| Size | Standard sized product |
| Dimensions (L × W × H) | 3.28 × 1.70 × 1.47 in |
| Weight | 0.3 lb |
| Dielectric Strength | Withstands 2,000 V minimum |
| Temperature Rating | Maximum continuous 75°C; minimum -40°C without impact |
| Environmental Conditions | Indoor dry unless protected by additional means |
| Certifications and Ratings | UL Listed to UL 498; CSA Certified to Specification C22.2 No. 42; WR rating |
