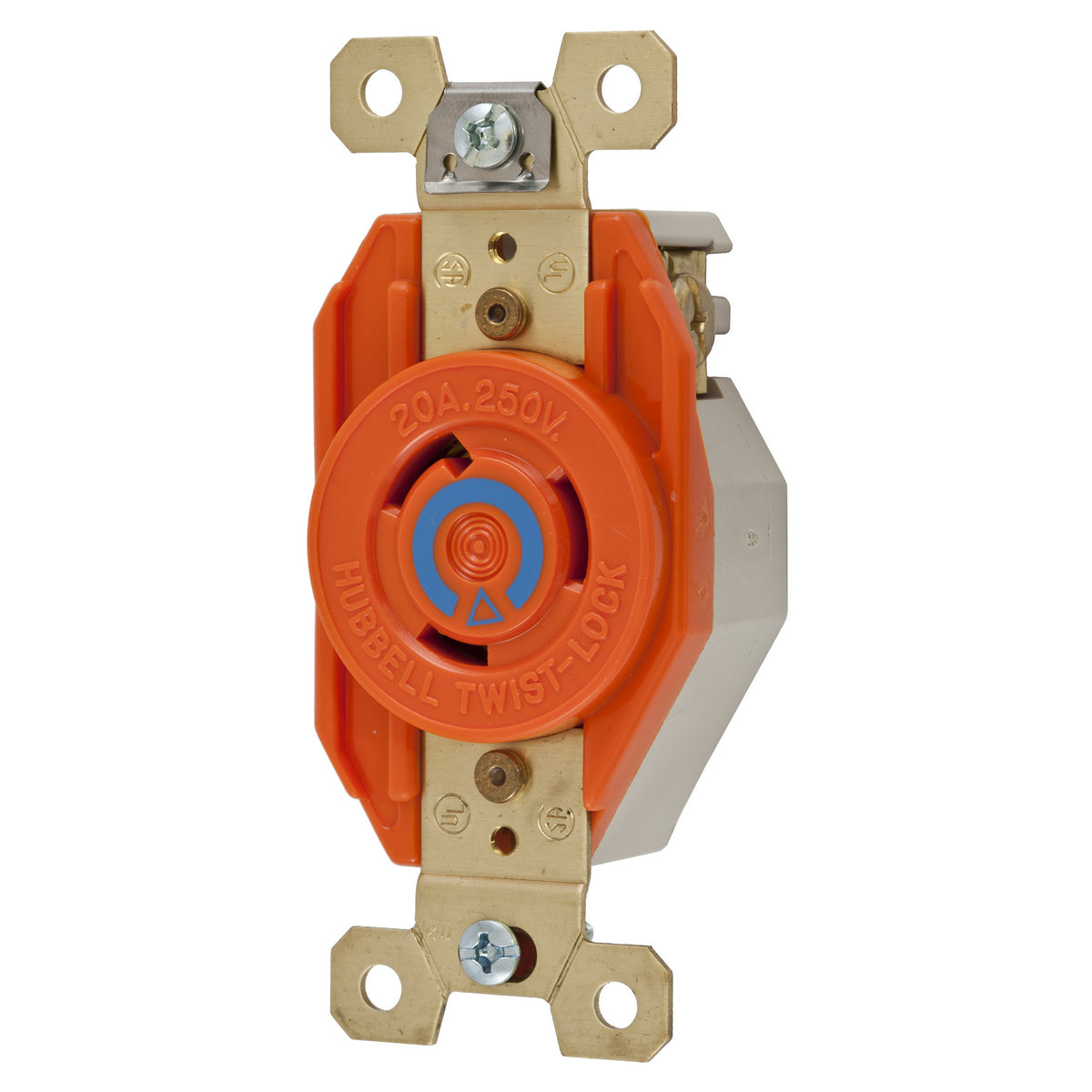

Hubbell 20 Amp 250V Industrial Grade Isolated Ground Twist-Lock Flush Receptacle, Model IG2320
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This Hubbell Twist-Lock® flush receptacle provides an isolated ground connection for installations where electrical noise is a concern. Its insulation barrier separates the ground contacts from the mounting strap, while the high-impact nylon face and brass mounting and grounding system offer durability and corrosion resistance. Back and side wiring with wire restraint recesses helps reduce the risk of loose terminal connections on indoor electrical installations.
Specifications
| Product Type | Single flush Twist-Lock® receptacle |
| Brand | Hubbell Wiring Device-Kellems |
| Current Rating | 20 A |
| Voltage Rating | 250 V AC |
| NEMA Configuration | L6-20R |
| Poles and Wires | 2-pole, 3-wire grounding |
| Grounding | Isolated ground; insulation barrier separates ground contacts from mounting strap |
| Phase | Single phase |
| Maximum Horsepower | 2 hp |
| Wiring Method | Back and side wired, with wire restraint recesses |
| Wire Size | #16 to #8 AWG solid or stranded copper wire |
| Colour | Orange |
| Face Material | High-impact, abuse-resistant nylon |
| Base Material | RTP |
| Contacts and Mounting Strap | Brass |
| Terminal Screws | #10-32 brass |
| Mounting Method | Screw mounting |
| Dielectric Strength | Withstands 2,000 V minimum |
| Current Interrupting | Certified at full rated current |
| Terminal Identification | In accordance with UL 498 |
| Flammability | V2 or better per UL 94 / CSA C22.2 No. 0.17 |
| Environmental Conditions | Indoor dry unless protected by additional means; IP20 suitability |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C without impact |
| Listings | UL 498; Federal Specification W-C-596; CSA C22.2 No. 42 |
| Dimensions (L × W × H) | 3.28 × 1.70 × 1.24 in; standard sized product |
| Weight | 0.25 lb |
| UPC | 783585872223 |
