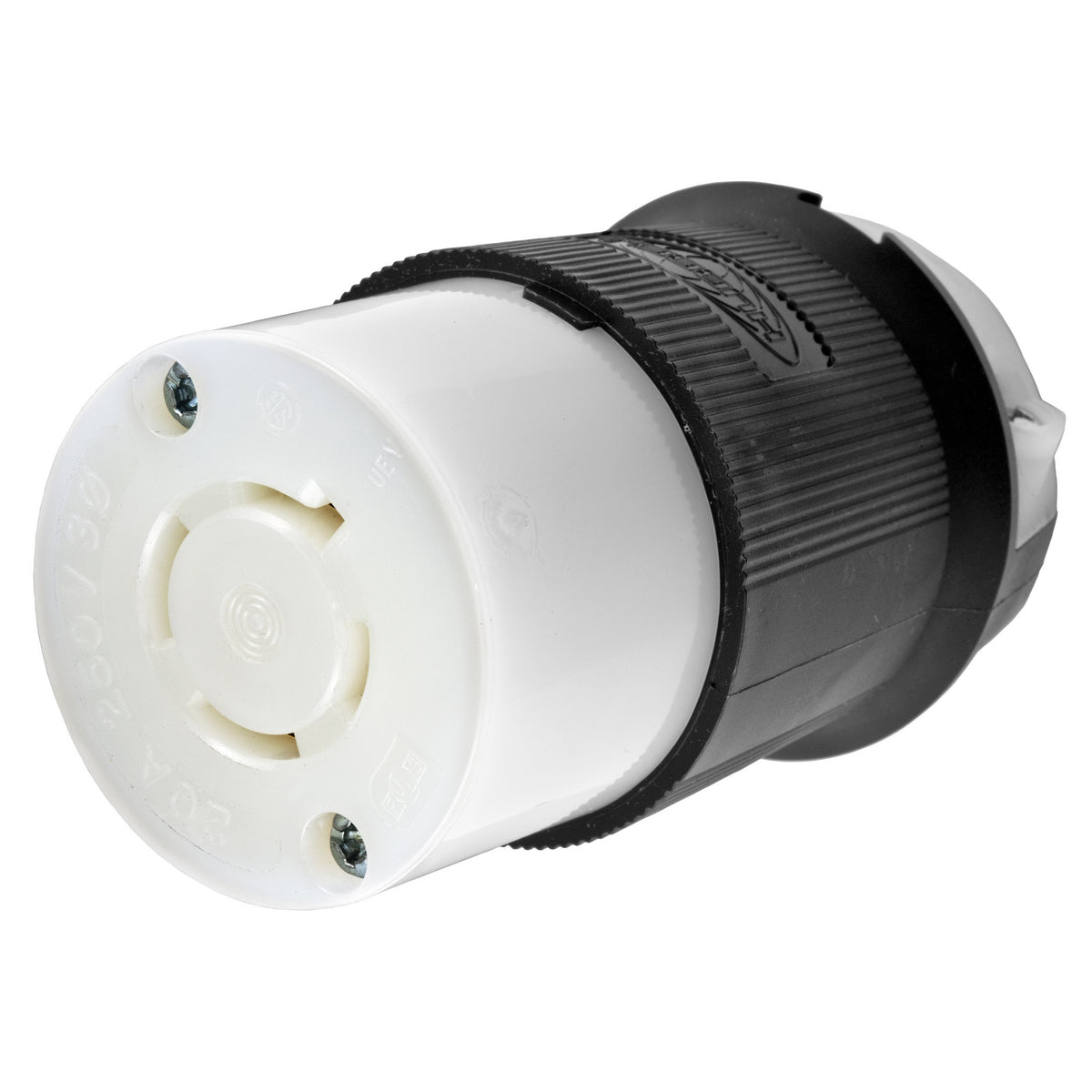

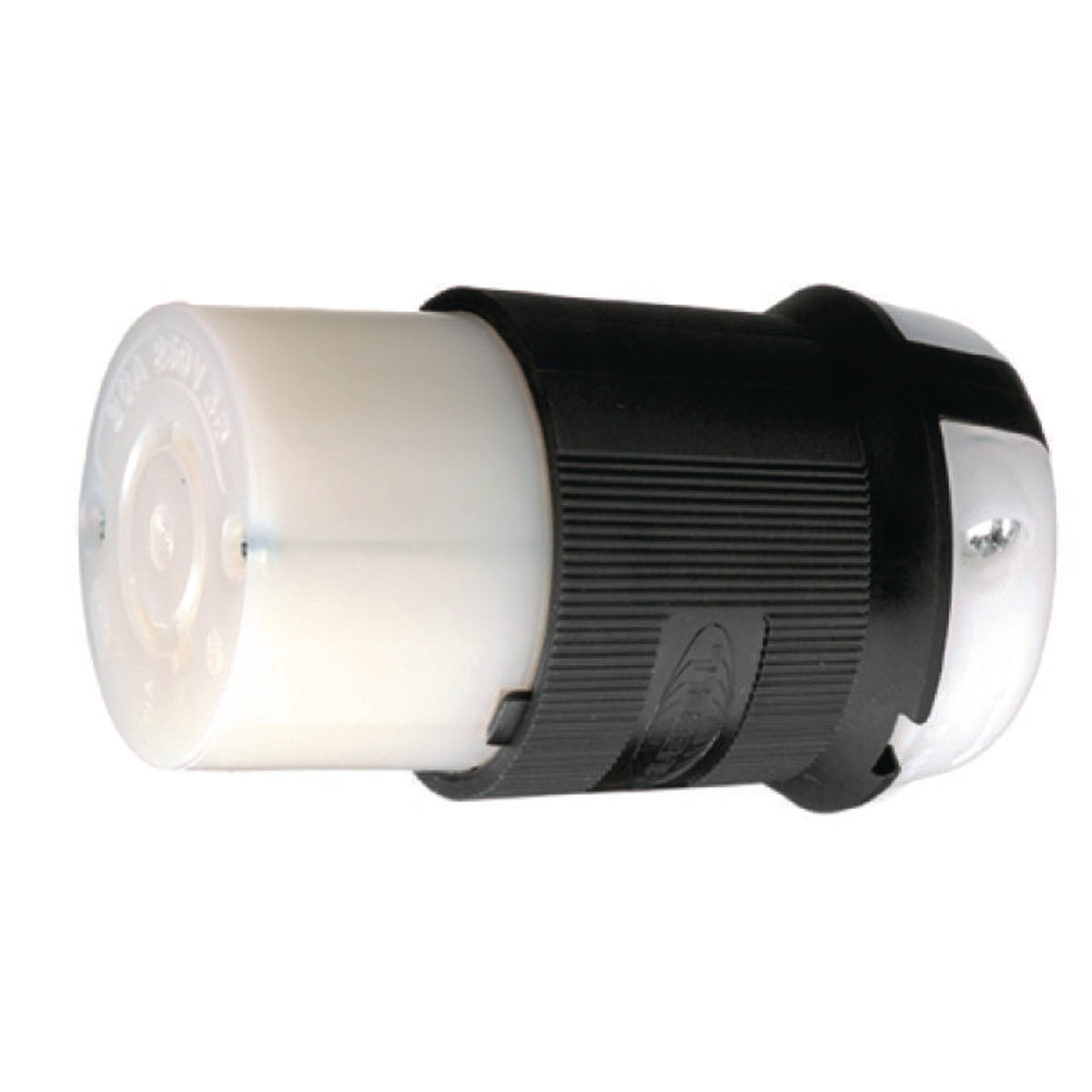

Hubbell 20 Amp 250V EdgeConnect Screwless Terminal Twist-Lock Female Connector Body, Model HBL2423ST
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This Hubbell EdgeConnect™ Twist-Lock® female connector provides a locking connection for 20 A, 250 V three-phase industrial equipment and cord assemblies. Screwless spring termination speeds wiring without a screwdriver or torque wrench, while funnel-shaped wire entries help guide conductors into place. The cord grip protects terminations from excess strain, and spring termination eliminates strand relaxation.
Specifications
| Product Type | Industrial female locking connector body |
| Brand | Hubbell |
| Series | EdgeConnect™ Twist-Lock® |
| Current Rating | 20 A |
| Voltage Rating | 250 V AC |
| Phase | Three-phase delta |
| NEMA Configuration | L15-20R |
| Poles and Wires | 3-pole, 4-wire grounding |
| Termination | EdgeConnect™ screwless spring termination |
| Wire Entry | Funnel-shaped |
| Cord Grip | Protects terminations from excess strain |
| Material | Nylon |
| Colour | Black and white |
| Mounting Type | Screw mount |
| Size | Standard-sized product |
| Environmental Suitability | IP20 |
| Temperature Rating | Maximum continuous: 75°C; minimum: -40°C without impact |
| Dielectric Strength | Withstands 3,000 V minimum |
| Listed Weight | 0.45 lb |
| Standards | Listed to UL 498; Federal Specification W-C-596; certified to CSA C22.2 No. 42 |
| UPC | 783585719092 |
