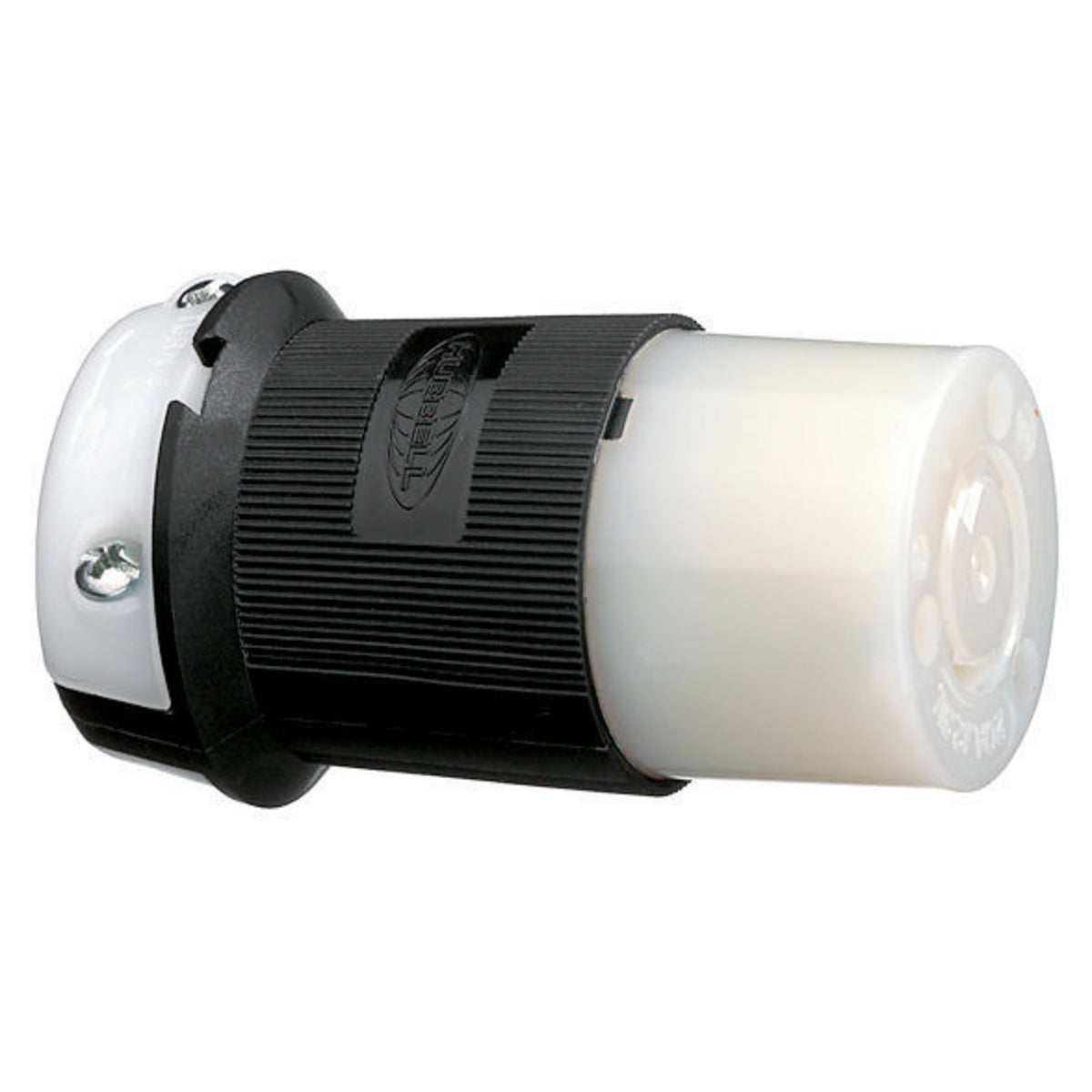

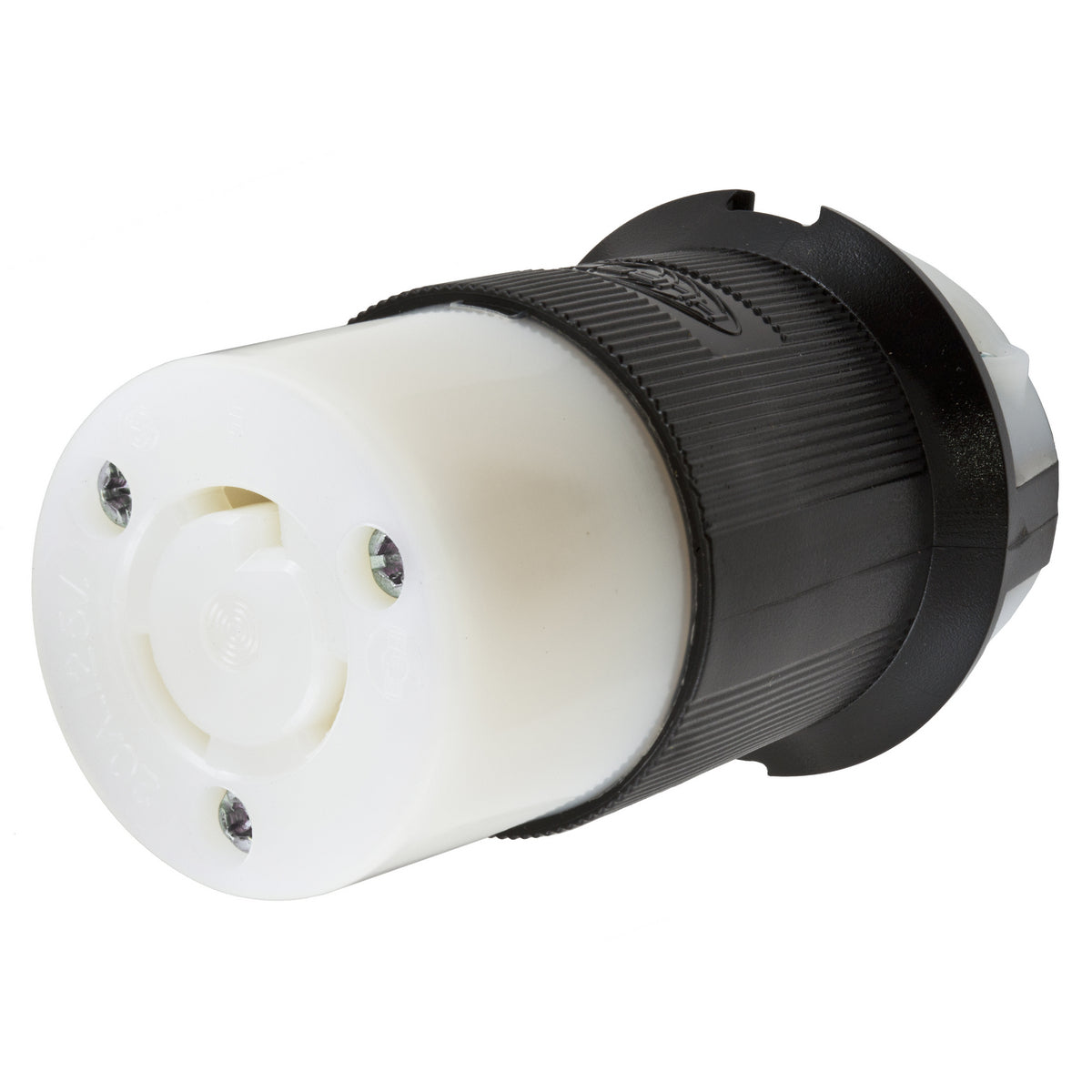

Hubbell 20 Amp 125V Twist-Lock Industrial Grade Female Connector Body, Model HBL2313
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This industrial-grade Hubbell Twist-Lock® female connector provides a grounding connection for 20A, 125V cord-connected equipment in indoor dry work areas. Its ribbed nylon housing offers a secure grip with impact and chemical resistance, while the cord grip protects terminations from excess strain. Funnel-shaped wire entries simplify termination, and an integral dust shield helps protect the wiring chamber from contaminants.
Specifications
| Product type | Industrial Insulgrip® female Twist-Lock® connector body |
| Brand | Hubbell Wiring Device-Kellems |
| Current rating | 20 A |
| Voltage rating | 125 V AC |
| NEMA configuration | L5-20R |
| Poles and wires | 2-pole, 3-wire grounding |
| Termination | Pressure terminal screws |
| Wire accommodation | #16 to #8 AWG stranded copper wire only |
| Cord diameter range | 0.360–0.930 in (9–24 mm) |
| Mounting | Cord mounted |
| Housing and cord clamp | Nylon; insulated body |
| Colour | Black and white |
| Environmental conditions | Indoor dry unless protected by additional means |
| Moisture resistance | IP20 suitability |
| Temperature rating | Maximum continuous 75°C; minimum -40°C without impact, -25°C with impact |
| Maximum horsepower | 1 hp |
| Current interrupting | Certified for current interrupting at full rated current |
| Dielectric strength | Withstands 2,000 V minimum |
| Flammability | HB or better per UL 94 or CSA 22.2 No. 0.6 |
| Terminal identification | In accordance with UL 498 |
| Contacts | Brass |
| Assembly screws | Nickel-plated steel |
| Terminal clamp | Nickel-plated cold-rolled steel |
| Terminal retainer | Clear polycarbonate |
| Terminal screws | #10-32 brass; Phillips, slotted or Robertson drive |
| Dimensions (L × W × H) | 2.26 × 2.26 × 3.86 in |
| Display size | Standard |
| Weight | 0.3 lb |
| UPC | 783585037745 |
