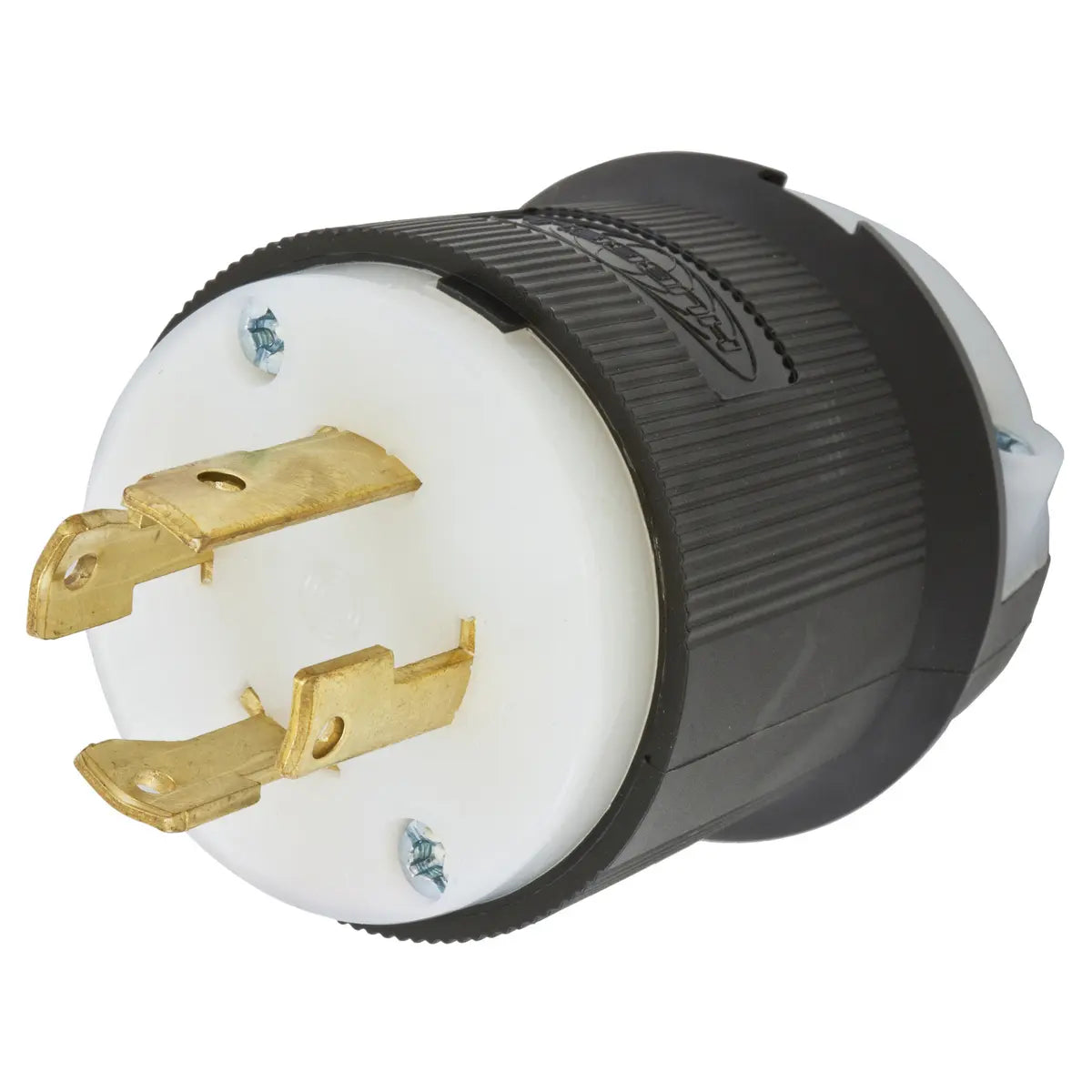

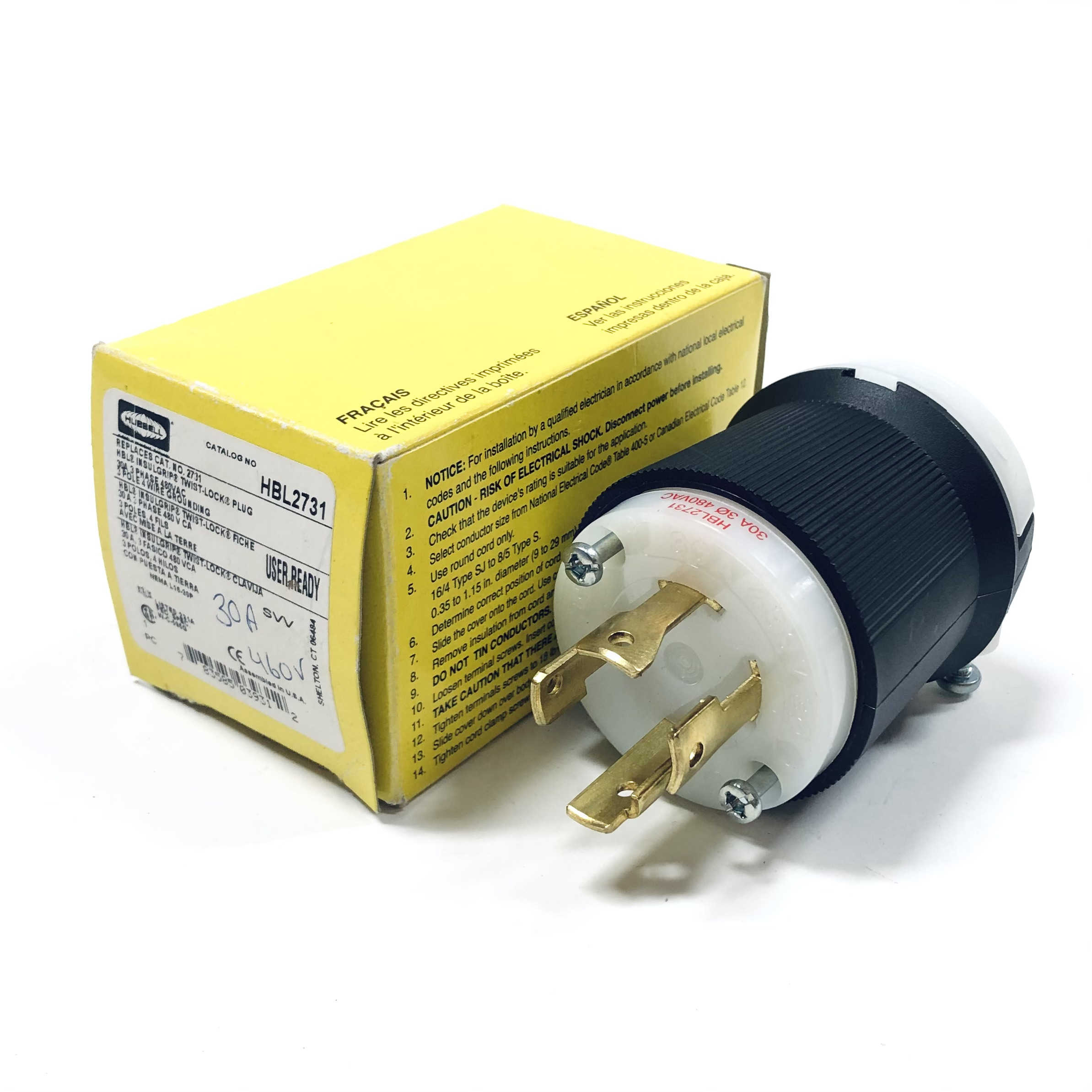

Hubbell 30 Amp 480V Industrial Grade Twist-Lock Male Plug, Model HBL2731
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

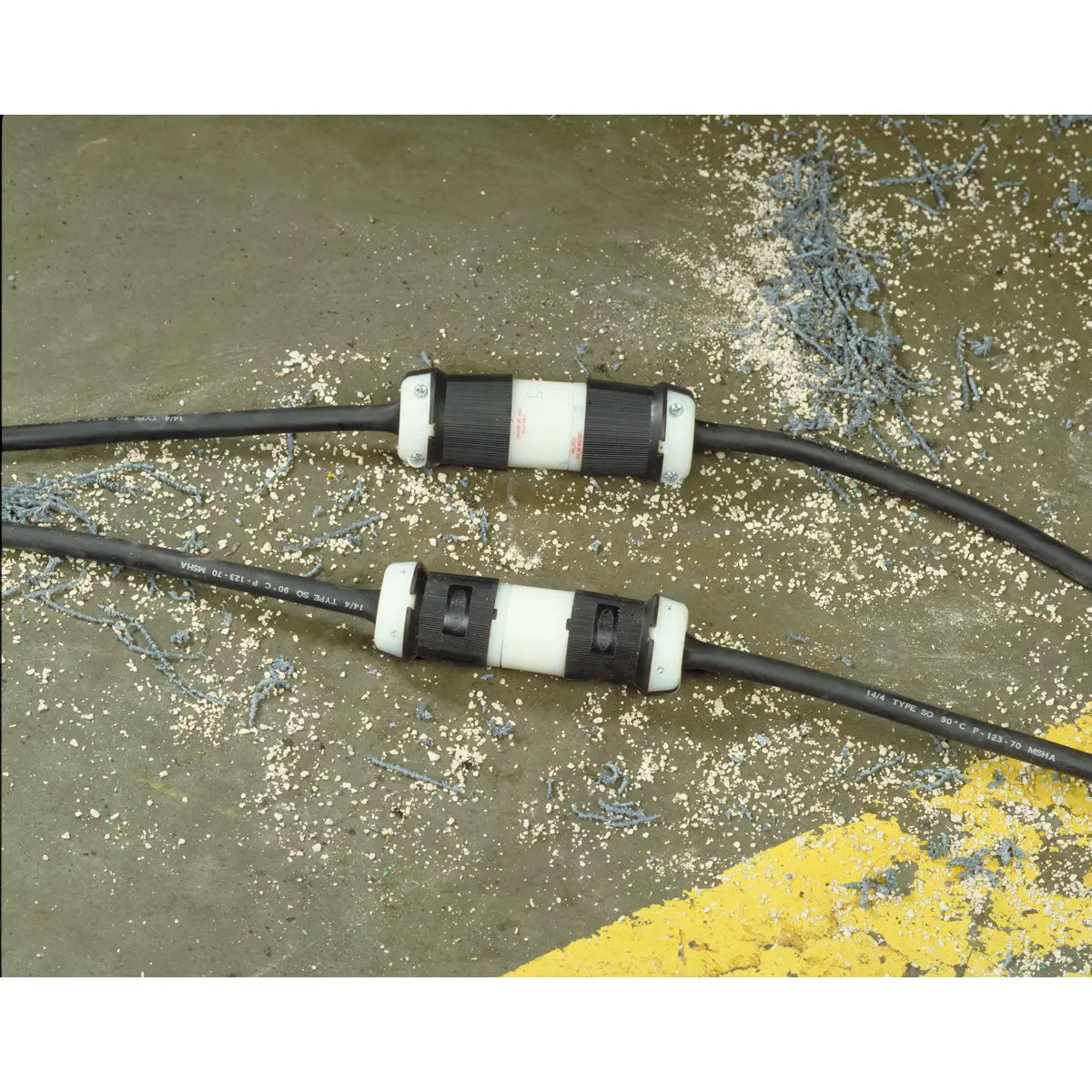

Connect industrial equipment to three-phase power with this Hubbell Twist-Lock® grounding male plug. Its ribbed nylon housing provides a secure grip with impact and chemical resistance, while the cord grip protects terminations from excess strain. Funnel-shaped wire entries simplify termination, and an integral dust shield helps protect the wiring chamber during equipment installation and maintenance.
Specifications
| Brand | Hubbell Wiring Device-Kellems |
| Product Type | Industrial Twist-Lock® Insulgrip® grounding male plug |
| Current Rating | 30 A |
| Voltage Rating | 480 V AC |
| Phase | Three-phase |
| NEMA Configuration | L16-30P |
| Poles and Wires | 3-pole, 4-wire grounding |
| Maximum Horsepower | 10 hp |
| Termination | Pressure terminal screws |
| Conductor Accommodation | #16 AWG to #8 AWG, stranded copper wire only |
| Cord Diameter Range | 0.350–1.150 in (9–29 mm) |
| Mounting | Cord-mounted |
| Housing and Cord Clamp | Nylon |
| Colour | Black and white |
| Blades | Brass |
| Assembly Screws | Nickel-plated steel |
| Terminal Clamp | Nickel-plated cold-rolled steel |
| Terminal Retainer | Clear polycarbonate |
| Terminal Screws | #10-32 brass; Phillips, slotted or Robertson drive |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Flammability | HB or better per UL 94 / CSA 22.2 No. 0.17 |
| Moisture Resistance | IP20 suitability |
| Environmental Conditions | Indoor dry locations unless protected by additional means |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C without impact |
| Terminal Identification | In accordance with UL 498 |
| Dimensions (L × W × H) | 2.33 × 2.33 × 2.75 in |
| Size | Standard |
| Weight | 0.3 lb |
| UPC | 783585039312 |
