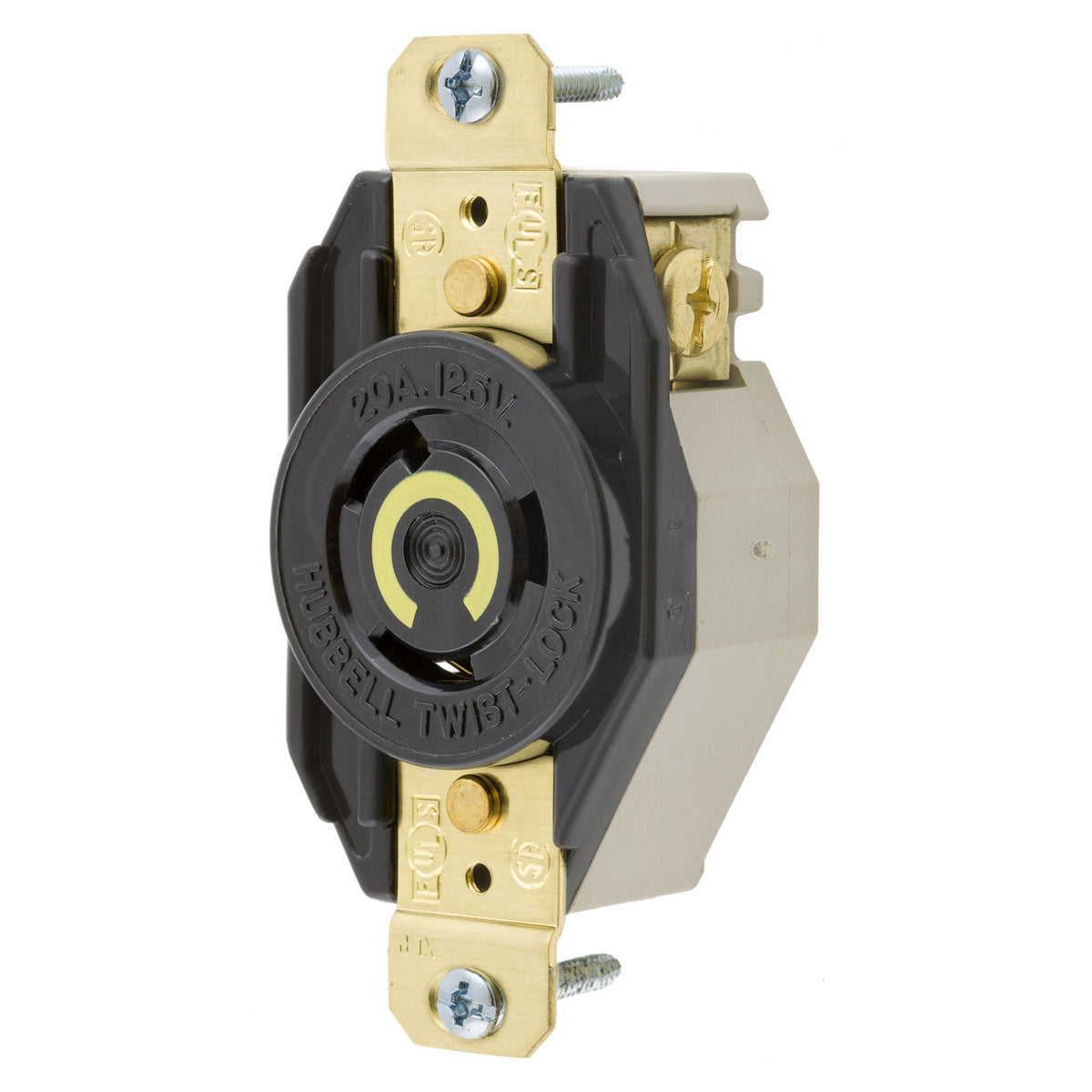

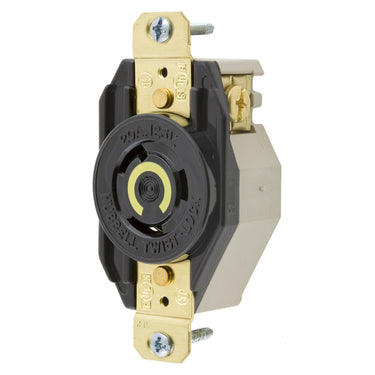

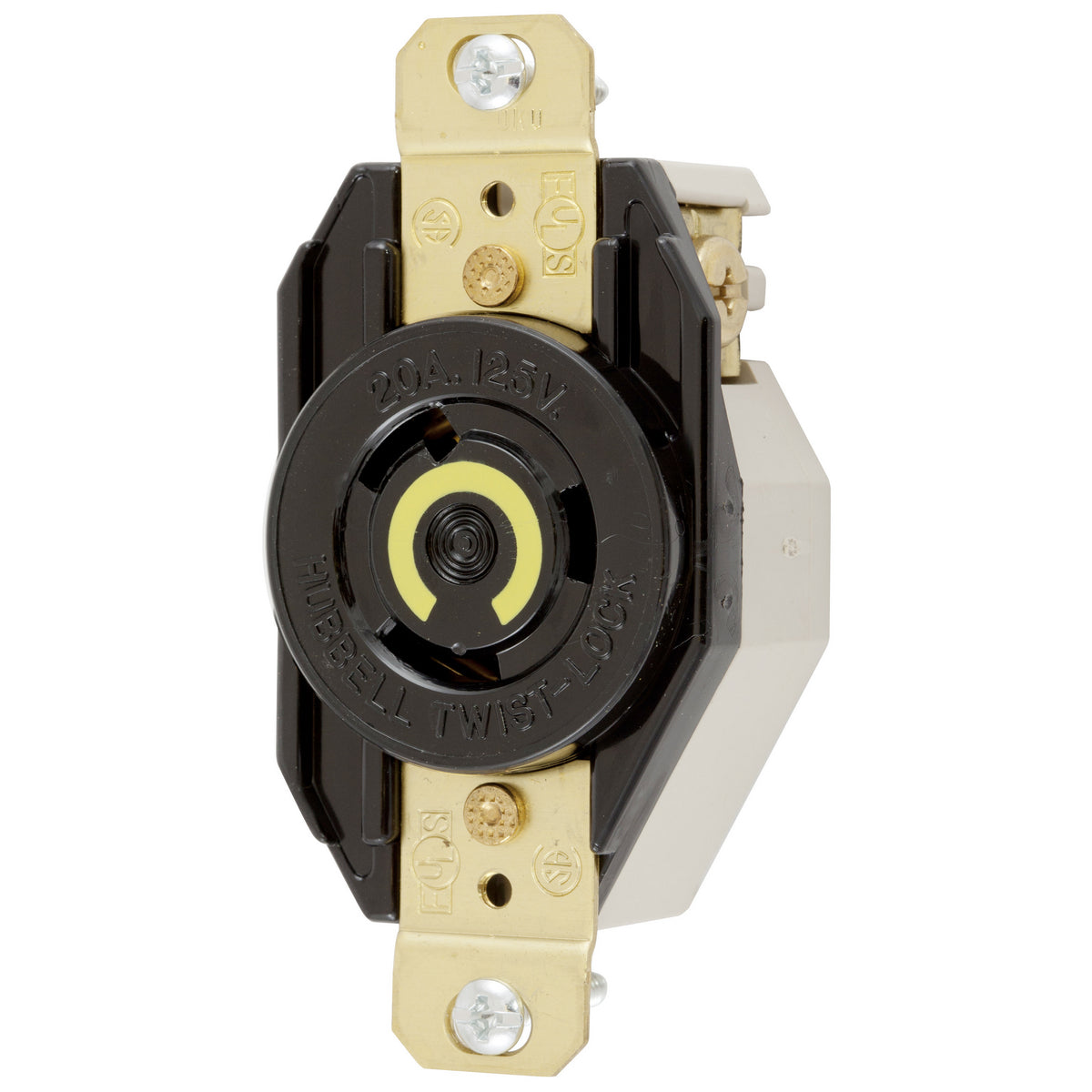

Hubbell 20 Amp 125V Industrial Grade Twist-Lock Flush Receptacle, Model HBL2310
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This Hubbell Twist-Lock® flush receptacle provides a locking connection for 20 A, 125 V industrial equipment in indoor dry locations. Its high-impact nylon face stands up to demanding work environments, while back and side wiring with wire-restraint recesses helps reduce terminal loosening. An all-brass mounting and grounding system provides a low-resistance ground path and greater corrosion resistance than steel mounting systems.
Specifications
| Type | Industrial single flush locking receptacle |
| Current Rating | 20 A |
| Voltage Rating | 125 VAC |
| NEMA Configuration | L5-20R |
| Poles and Wires | 2-pole, 3-wire grounding |
| Phase | Single phase |
| Wiring | Back and side wired; screw terminals with wire-restraint recesses |
| Conductor Range | #16 AWG to #8 AWG solid or stranded copper wire only |
| Colour | Black |
| Face Material | High-impact, abuse-resistant nylon |
| Base Material | Glass-reinforced thermoplastic polyester (RTP) |
| Contacts and Mounting Strap | Brass |
| Terminal Screws | #10-32 brass |
| Mounting | Screw mounting |
| Maximum Horsepower | 1 hp |
| Current Interrupting | Certified for current interrupting at full rated current |
| Dielectric Strength | Withstands 2,000 V minimum |
| Flammability | V2 or better per UL94/CSA 22.2 No.0.17 |
| Moisture Resistance | IP20 suitability |
| Location Conditions | Indoor dry unless protected by additional means |
| Operating Temperature | Maximum continuous 75°C; minimum -40°C without impact |
| Terminal Identification | In accordance with UL 498 |
| Dimensions (L × W × H) | 3.28 × 1.70 × 1.23 in |
| Weight | 0.25 lb |
