TECHSPAN
MFR #TKMC050A075
UPC #77685634376

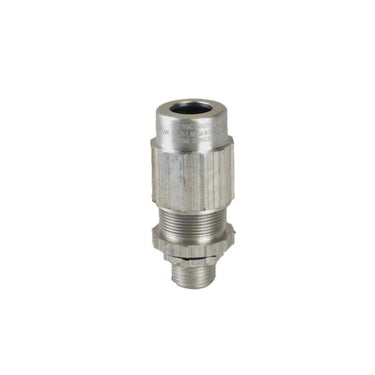

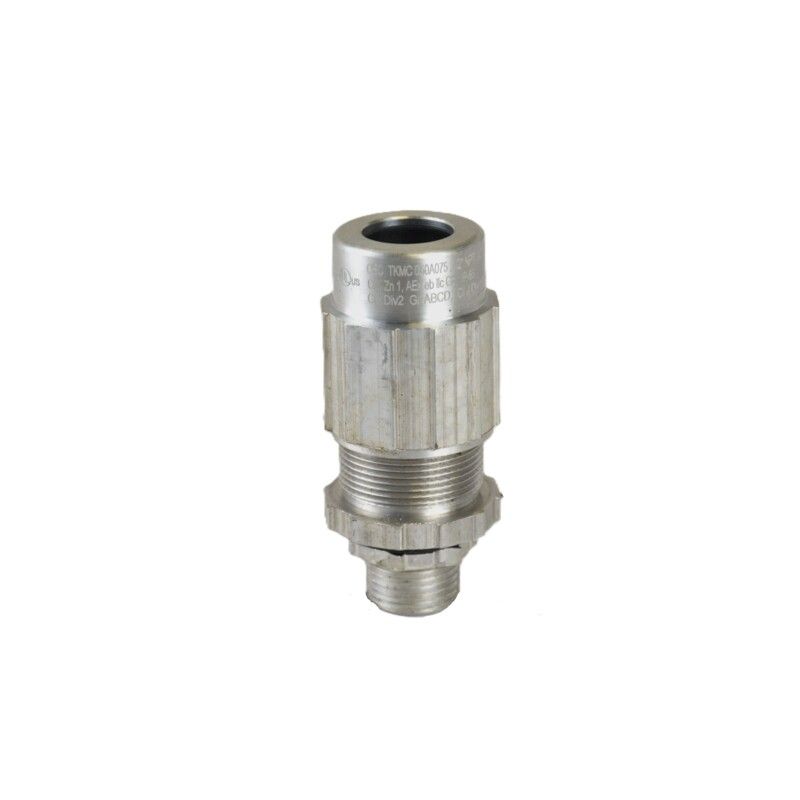

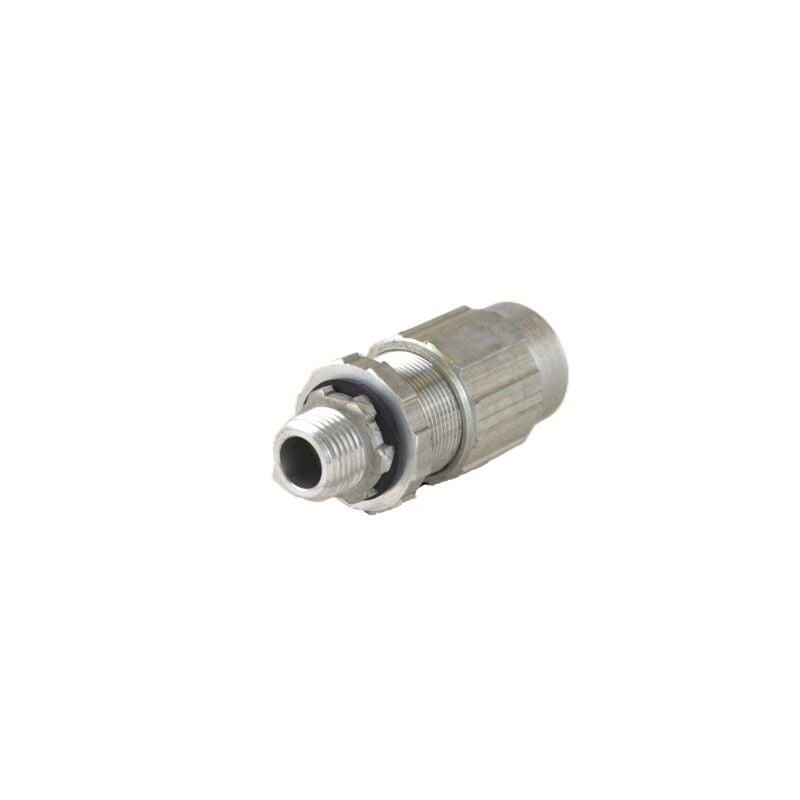

1/2" Spring Ground Teck Connector - 0.52" to 0.72" Cable OD, TKMC050A075
$15.44
/
Shipping within Ontario only. Rates calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories
This 1/2" NPT aluminium Teck connector provides 360° stainless steel spring grounding for MCC, MC-HL and TECK cable with outer jacket diameters from 0.520" to 0.720", helping contractors match the connector to the cable for installation.
- 1/2" NPT hub with a 0.520"–0.720" cable outer jacket range.
- 360° stainless steel spring ground for MCC, MC-HL and TECK cable.
- IP66 rating and an operating temperature range of -50°C to +85°C.
Specifications
| Hub Size | 1/2" NPT (12.70 mm) |
| Material | Aluminium |
| Cable Types | MCC, MC-HL, TECK |
| Grounding | 360° stainless steel spring ground |
| Outer Jacket Diameter Range | 0.520"–0.720" (13.21–18.3 mm) |
| Outer Armour Diameter Range | 0.440"–0.610" (11.18–15.5 mm) |
| Maximum Through Bore | 0.520" (13.21 mm) |
| Width | 1.496" (38 mm) |
| Thread Length | 0.78" |
| Cable Strip Length | 1.65" |
| IP Rating | IP66 |
| Operating Temperature | -50°C to +85°C |
| UL Standards | UL 514B, UL 2225 |
| Shipping Dimensions | 3.8 L × 8.3 W × 3.9 H cm |
| Shipping Weight | 0.1160 kg |
