TECHSPAN
MFR #L15-20C
UPC #77685634268

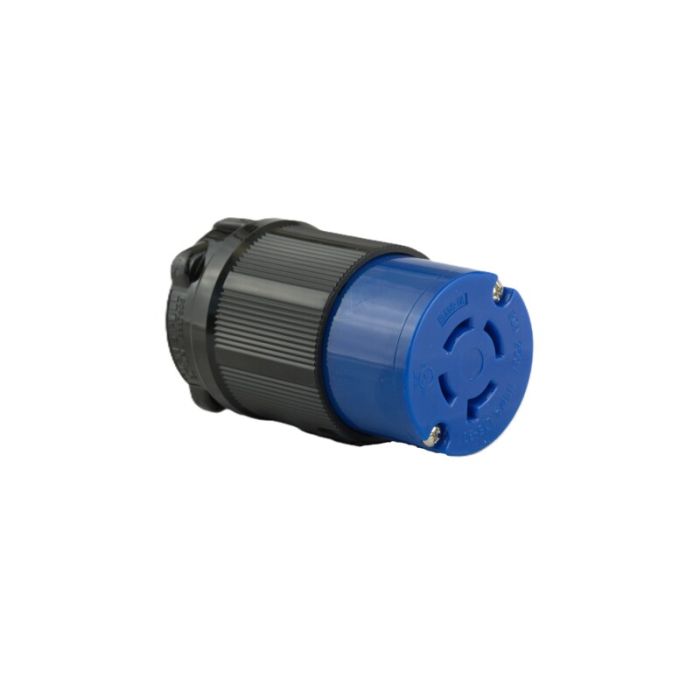

L15-20C 20A 250V Twist-Lock Connector Body, Blue
$26.05
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories
This NEMA L15-20 female twist-lock connector body is built for reliable 3-phase power connections on industrial job sites, delivering a secure, vibration-resistant locking engagement rated for 20A at 250VAC. Its blue polycarbonate blade holder and black nylon body offer excellent chemical and impact resistance in demanding environments. A practical choice for temporary power distribution, equipment hookups, and generator connections on commercial construction projects.
Specifications
| Type | Female Connector Body |
| NEMA Configuration | L15-20 |
| Amperage | 20A |
| Voltage | 250VAC |
| Phase | 3-Phase |
| Poles / Wires | 2P3W |
| Grounding | Yes |
| Colour | Blue |
| Material – Body | Black Nylon |
| Material – Blade Holder | Polycarbonate |
| Material – Terminal Retainer | Clear Polycarbonate |
| Material – Contacts | Brass |
| Cable Range | .375" to 1.156" OD |
| Standards | cULus |
| Shipping Dimensions (L × W × H) | 6.0 × 6.1 × 10.1 cm |
| Shipping Weight | 0.192 kg |
L15-20C 20A 250V Twist-Lock Connector Body, Blue
$26.05
/
