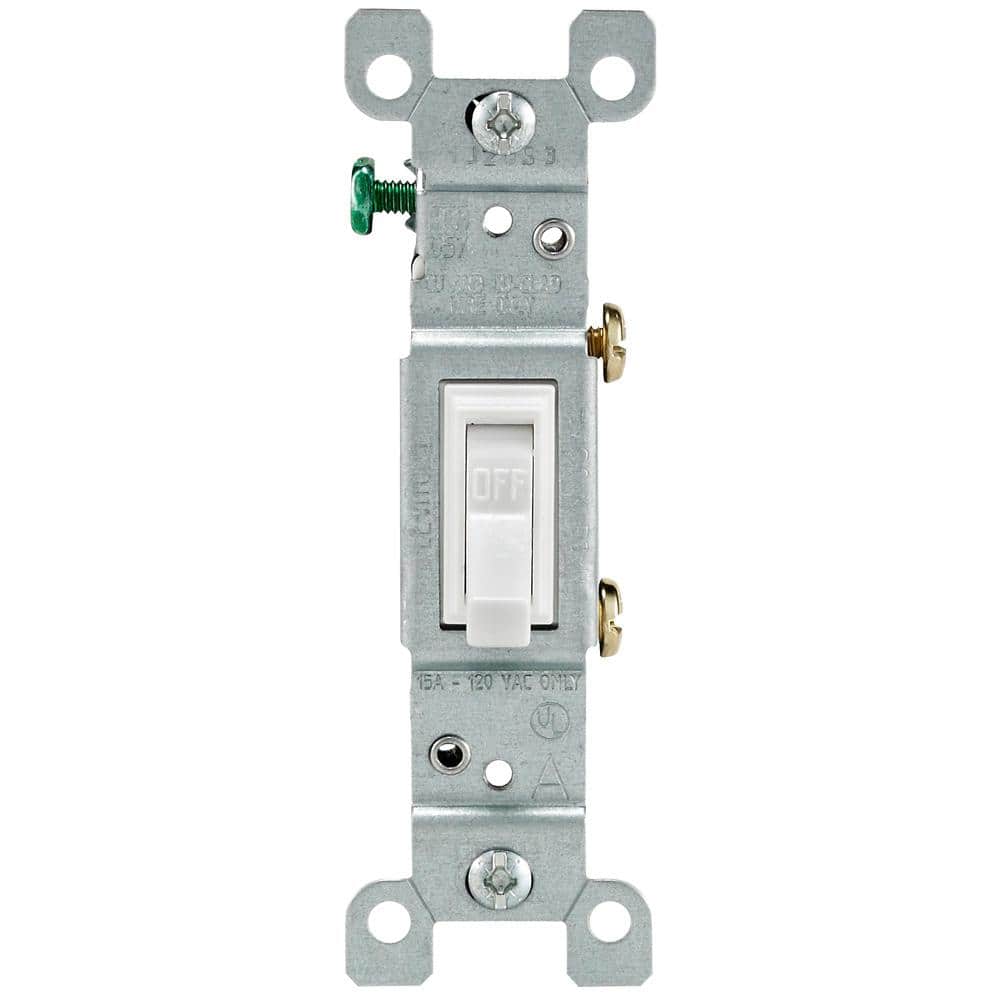

Single-Pole Toggle Switch 15 Amp, White, Model 1451-2W
Single-Pole Toggle Switch 15 Amp, White, Model 1451-2W
Pickup available at IES - Mississauga
Usually ready in 4 hours
The Leviton 1451-2W is a 15A single-pole toggle switch built for the demands of professional electricians and contractors on residential and light commercial job sites. Rated at 120 VAC with a ½ HP motor rating, it handles everyday switching loads with confidence — from lighting circuits to small motor applications. The framed thermoplastic body and steel strap provide the durability needed for rough-in work, while the white finish delivers a clean, finished look. Dual termination options — Quickwire push-in and side-wiring — let you work the way you prefer, and the wide AWG acceptance (#10–#14 CU) keeps it compatible with the wire gauges you already have on the truck. UL/CSA listed and backed by a 2-year limited warranty.
Specifications
| Type | Toggle Switch |
| Pole | 1 |
| Amperage | 15 A |
| Max. Amperage | 12 A |
| Voltage | 120 VAC |
| HP Rating | 1/2 HP – 120V |
| Colour | White |
| Feature | Framed |
| Grounding | Grounding |
| Actuator Material | Thermoplastic |
| Body Material | Thermoplastic |
| Strap Material | Steel |
| Termination | Quickwire Push-In & Side |
| Terminal Accommodation | Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire; Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only |
| Torque Range | 14 – 18 in.-lbs |
| Standards & Certifications | UL/CSA |
| Warranty | 2-Year Limited |
