Schneider Electric
MFR #CHOMT2020
UPC #785901897354
Tandem 20A Breaker for Homeline Panel, Model CHOMT2020
$31.74
/
In Stock
Shipping within Ontario only. Rates calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
ONTARIO
Ontario-wide Delivery
In-stock items typically ship next business day.
Free Shipping on Eligible Orders Over $150
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free Warehouse Pickup
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns & Exchanges
Returns available on eligible items.

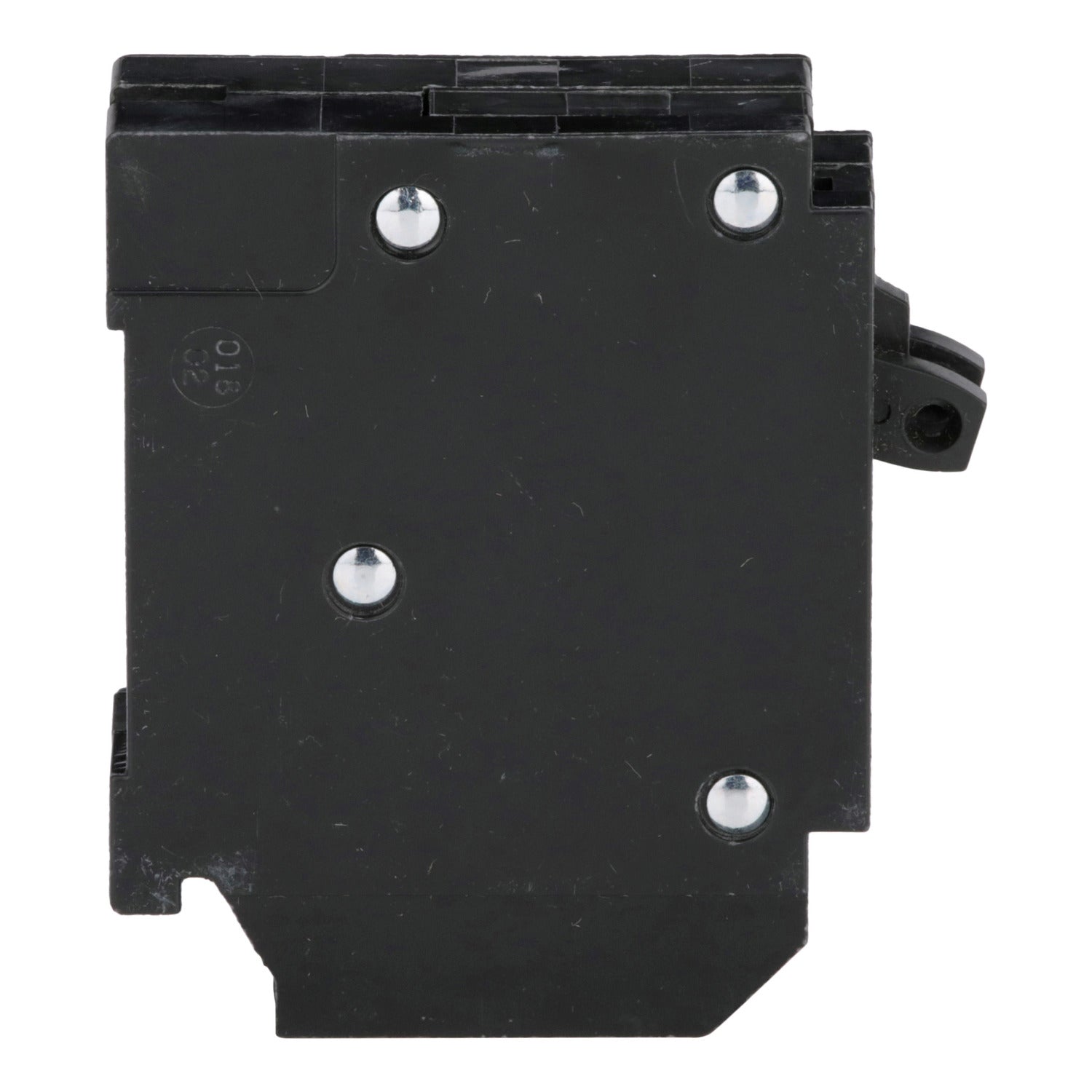

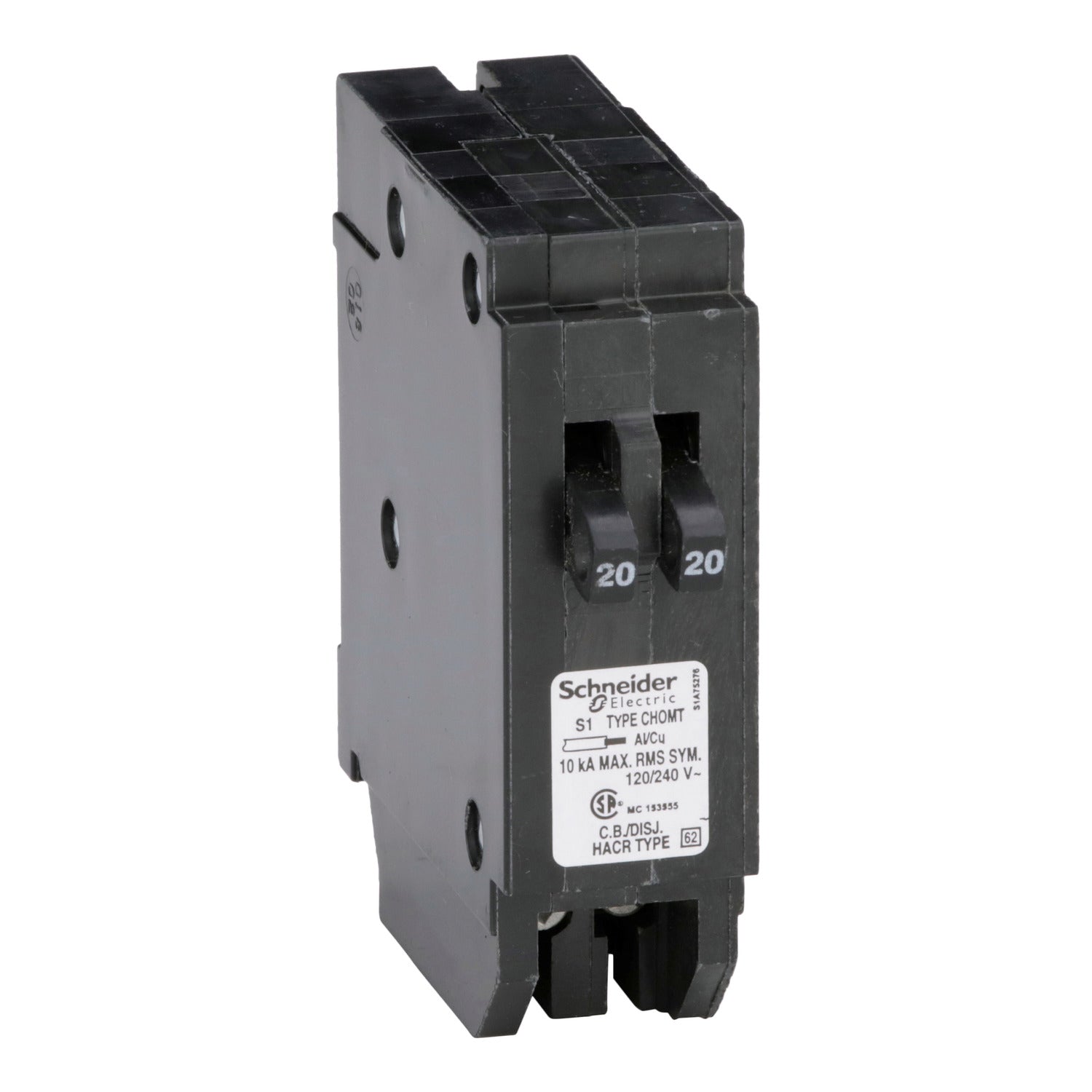

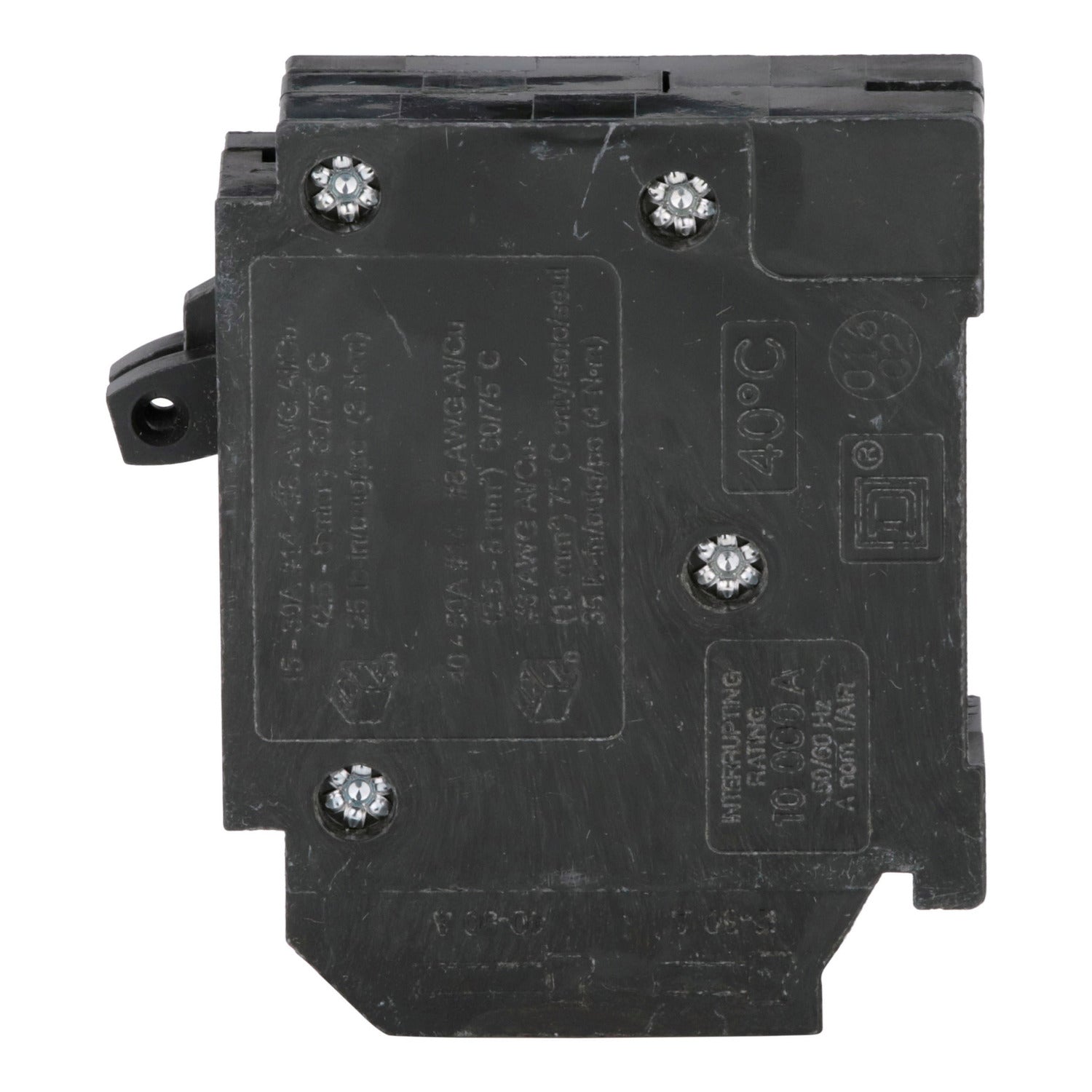

Tandem 20A Breaker for Homeline Panel, Model CHOMT2020
$31.74
/
The Schneider Electric CHOMT2020 is a tandem miniature circuit breaker engineered for Homeline load centres, offering single-pole space-saving design with individual switching and tripping action for each pole, rated at:
- 20A / 20A at 120/240V AC
- 10 kA breaking capacity
- CSA certified, accepts 14–8 AWG copper or aluminium wire
Specifications
| Amperage | 20A / 20A |
| Voltage Rating | 120/240V AC |
| Breaking Capacity | 10 kA |
| Number of Poles | 2 (Tandem — occupies 1 pole space) |
| Wire Range | 14–8 AWG copper or aluminium |
| Mounting Type | Plug-in (Homeline load centres) |
| Trip Type | Thermal-magnetic, individual per pole |
| Dimensions (H × W × D) | 3.13" × 1.00" × 2.98" |
| Weight | 0.43 lb |
| Certification | CSA |
| Compatible Panel Series | Schneider Electric Homeline |
