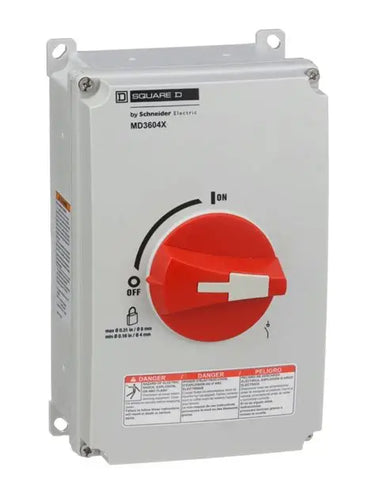

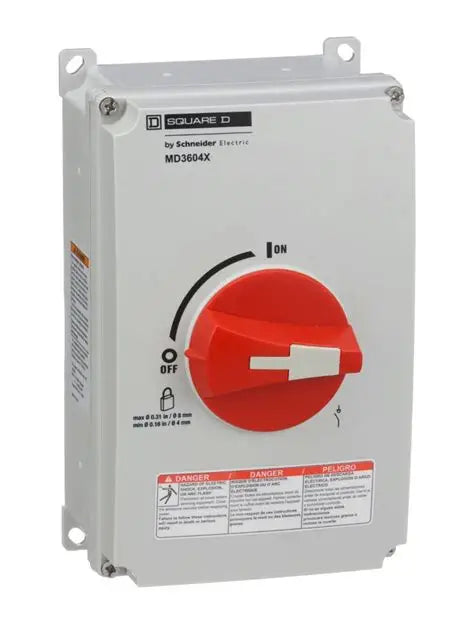

60A Motor Disconnect Switch 3-Pole, Type 4X, Model MD3604X
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
The Schneider Electric MD3604X Motor Disconnect Switch delivers reliable motor isolation for heavy-duty industrial applications where a robust, weatherproof enclosure is essential. Rated at 60 A with a NEMA 4X corrosion-resistant housing, this three-pole switch supports motors up to 40 hp at 440/480 V AC and 600 V AC — making it the right choice for pumping stations, refrigeration compressors, industrial HVAC systems, and process equipment exposed to washdown or outdoor conditions. The lockable handle provides a clear visual off indication and supports padlocking for lockout/tagout (LOTO) compliance, meeting the safety requirements expected on Canadian job sites. UL Listed and CSA Certified, the MD3604X is built to the standards your inspectors and project specs demand.
Specifications
| Product Type | Motor Disconnect Switch |
| Current Rating | 60 A |
| Poles | 3 Pole |
| Motor Power (Horsepower) | 20 hp @ 220/240 V AC, 40 hp @ 440/480 V AC, 40 hp @ 600 V AC |
| Enclosure Rating | NEMA 4X |
| Product Certifications | UL Listed, CSA Certified |
| Standards | IEC 60947-3 |
| Width | 4.94 in |
| Height | 8.27 in |
| Depth | 4.37 in |
| Net Weight | 0.96 kg |
| Range of Product | MD |
| Country of Origin | Tunisia |
| Sustainable Offer Status | Green Premium product |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
