Motor Disconnect Switch 30A 3-Pole Type 4X, Model MD3304X
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.

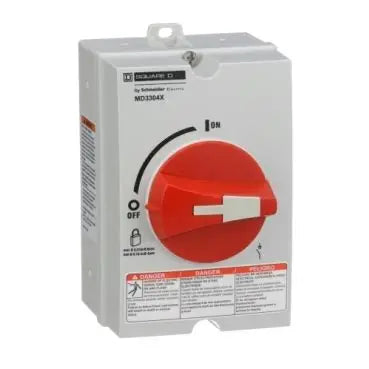

The Schneider Electric MD3304X Motor Disconnect Switch is built for demanding industrial and commercial motor circuits where reliable isolation and personnel safety are non-negotiable. Rated at 30 A with a NEMA 4X enclosure, this three-pole switch handles motors up to 25 hp at 600 V AC, making it well-suited for pump stations, HVAC equipment, compressors, and process machinery in washdown or corrosive environments. The lockable handle provides a clear visual off indication and supports padlocking for lockout/tagout (LOTO) compliance — a critical requirement on any Canadian job site. UL Listed and CSA Certified, the MD3304X meets the standards your inspectors expect.
Specifications
| Product Type | Motor Disconnect Switch |
| Current Rating | 30 A |
| Horsepower Rating | 7.5 hp @ 220/240 V AC, 20 hp @ 440/480 V AC, 25 hp @ 600 V AC |
| Enclosure Rating | NEMA 4X |
| Product Certifications | UL Listed, CSA Certified |
| Width | 3.90 in |
| Height | 6.38 in |
| Depth | 4.37 in |
| Net Weight | 0.68 kg |
| Range of Product | MD |
| Warranty | 18 months |
| Sustainable Offer Status | Green Premium product |
| RoHS Compliant | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
