Square D30A Motor Starter, 2‑Pole, 575VAC, NEMA 1 Enclosure, Model 2510KG1
Square D30A Motor Starter, 2‑Pole, 575VAC, NEMA 1 Enclosure, Model 2510KG1
Pickup available at IES - Mississauga
Usually ready in 4 hours
The Square D Class 2510 Type K manual motor starter (Model 2510KG1) provides straightforward ON/OFF control of single or three-phase AC motors in applications where overload protection is not required or is provided separately. Rated at 30 A with a 2-pole, single-toggle operator, it handles up to 2 HP at 115/230VAC and up to 3 HP at 460/575VAC — making it a versatile choice for compressors, fans, pumps, and general-purpose machinery in commercial and industrial settings. The compact NEMA 1 enclosure is designed for indoor surface-mount installations in control panels, machine rooms, and equipment enclosures where protection from accidental contact is required. Pre-punched 1/2" and 3/4" knockouts on the top and bottom simplify conduit entry and speed up installation. UL, CSA, and CE listed for broad compliance across Canadian and North American job sites.
Specifications
| Model | 2510KG1 |
| Class / Type | Class 2510, Type K |
| Brand | Square D by Schneider Electric |
| Phase | Single Phase (1PH) |
| Number of Poles | 2 |
| Amperage Rating | 30 A |
| Horsepower Rating | 2 HP @ 115/230VAC | 3 HP @ 460/575VAC |
| Enclosure Type | NEMA 1 (indoor) |
| Operator Type | Single toggle |

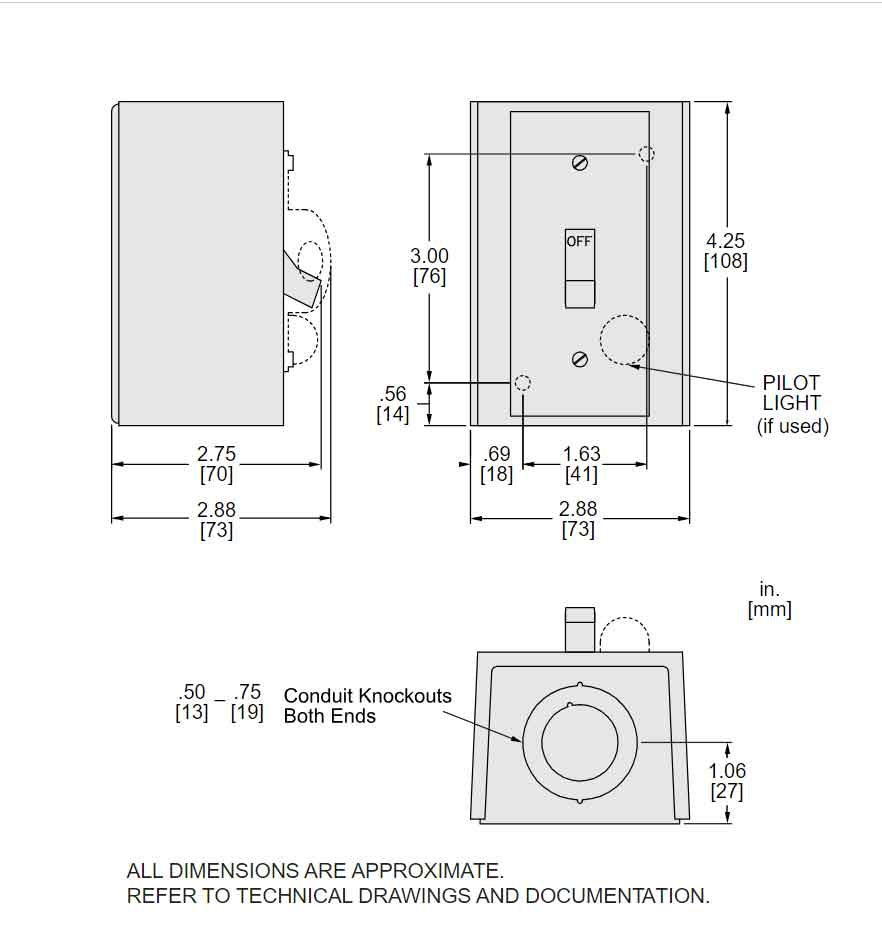

| Knockouts | 1/2" and 3/4" (top and bottom) |
| Overload Protection | Not included (provide separately if required) |
| Colour | Grey |
| Certifications | UL, CSA, CE |
| Manufacturer | Schneider Electric (Square D) |
