Schneider Electric Homeline AFCI 200A Panel Package
$721.00
$1,005.37
/

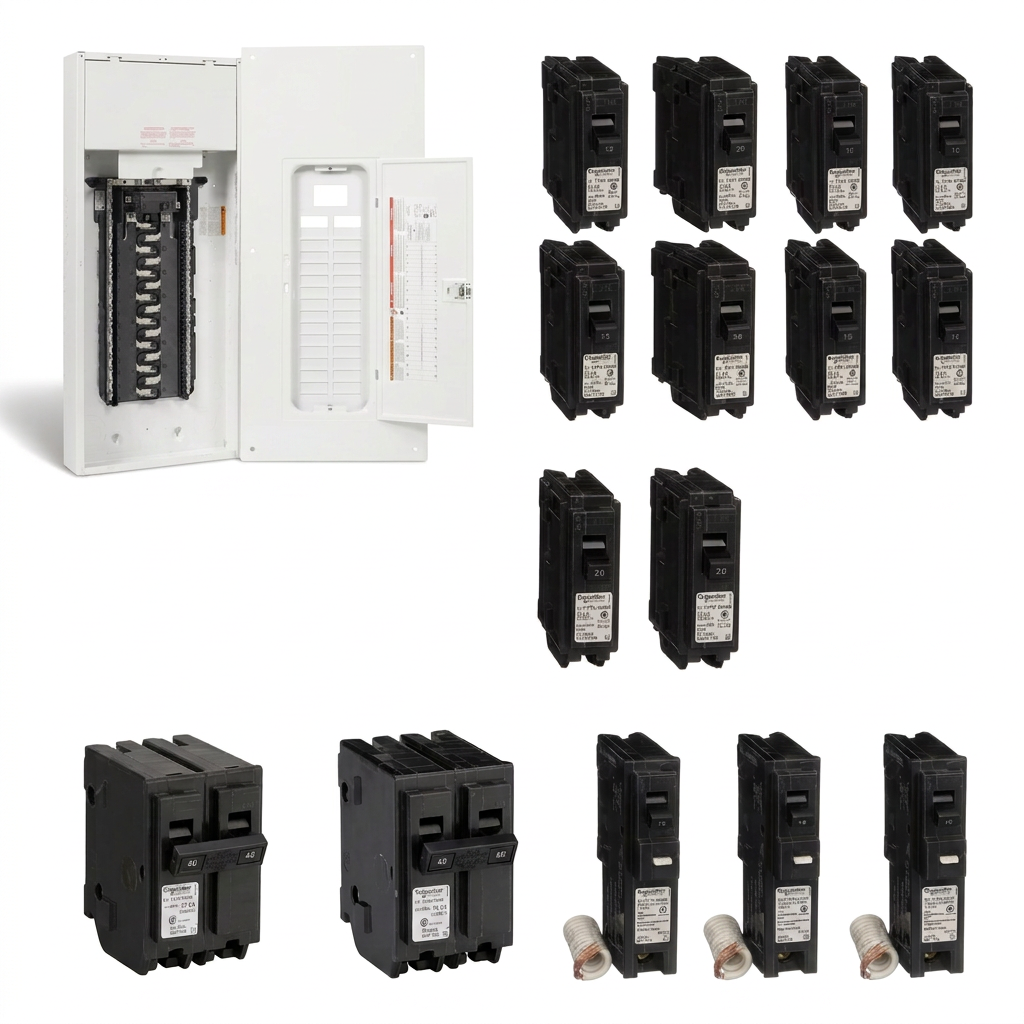

This Schneider Electric Homeline panel package combines a 200 A main-breaker loadcentre with 15 branch circuit breakers, including three 15 A combination arc-fault breakers with pigtail neutrals. Designed for indoor, single-phase 120/240 V distribution, the 30-space panel accommodates up to 60 circuits and brings key components together in one bundle.
Key Features
- Panel and 15 Breakers Together: Includes a 200 A Homeline main-breaker loadcentre, twelve standard breakers and three combination AFCI breakers.
- Three Arc-Fault Breakers: Included 15 A single-pole combination AFCIs provide overload, short-circuit and arc-fault protection, with pigtail neutral connections.
- Standard Branch Circuit Selection: Eight 15 A and two 20 A single-pole breakers, plus one 30 A and one 40 A double-pole breaker, cover a mix of circuit ratings.
- 30-Space Panel Capacity: Accommodates up to 60 circuits using suitable tandem breakers, with capacity for 30 tandems; tandem breakers are not included.
- Flexible Indoor Installation: A white combination flush/surface cover supports either installation style, and a grounding bar is supplied separately for installation.
Specifications
| Product range | Schneider Electric Homeline |
| Panel type / rated current | Main-breaker loadcentre / 200 A |
| Panel voltage / wiring | 120/240 V AC, single-phase, 3-wire |
| Spaces / maximum circuits | 30 / 60 |
| Tandem breaker capacity | 30; tandem breakers not included |
| Package contents | 1 main-breaker loadcentre and 15 branch circuit breakers |
| Standard single-pole breakers | 8 × 15 A; 2 × 20 A |
| Standard double-pole breakers | 1 × 30 A; 1 × 40 A |
| Combination AFCI breakers | 3 × 15 A, single-pole, with pigtail neutrals |
| Branch breaker mounting | Plug-in |
| Arc-fault protection coverage | Provided by the three combination AFCI breakers, not the twelve standard breakers |
| Panel short-circuit current rating | 22 kA (panel specification; not an assembled-bundle rating) |
| Panel connection / conductor range | Lugs for 4 AWG–250 kcmil aluminum or copper conductors |
| Mounting / cover | Wall mount; white combination flush/surface cover |
| Grounding bar | Included, not installed |
| Busbar / enclosure | Tin-plated aluminum busbar; welded sheet-steel enclosure |
| Panel enclosure / certification | NEMA 1, indoor; CSA certified |
| Panel operating temperature | −5 to 40 °C |
