Homeline 200A panel and 14-breaker bundle
Schneider Electric Homeline 200A Panel Package with 14 breakers
$421.00 $588.25

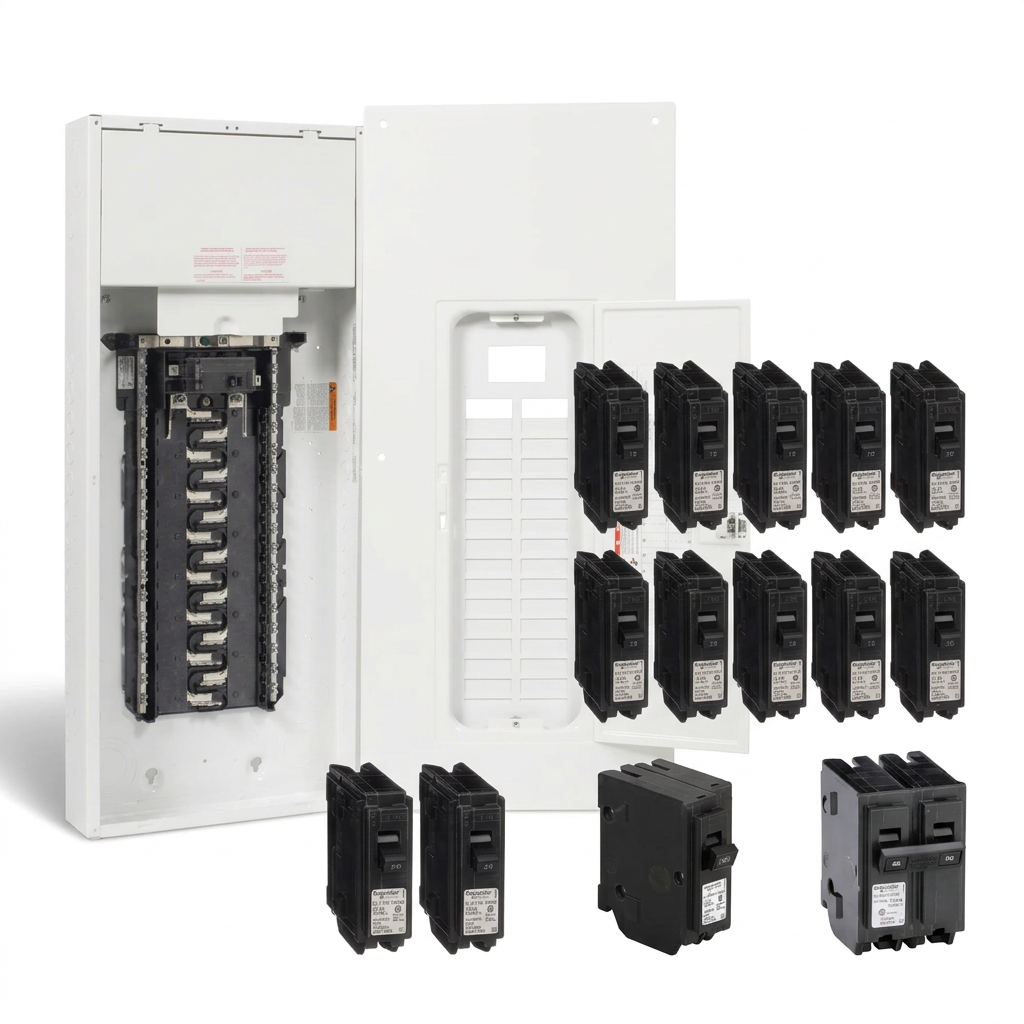

This Schneider Electric Homeline panel package combines a 200 A main-breaker loadcentre with 14 branch circuit breakers for indoor, single-phase power distribution. The 30-space panel accommodates up to 60 circuits, while the included mix of single- and double-pole breakers brings key components together in one bundle.

Key Features

  • Panel and Breakers Together: Includes one 200 A Homeline main-breaker loadcentre and 14 Homeline plug-in branch circuit breakers.
  • Single-Pole Circuit Selection: Ten 15 A and two 20 A single-pole breakers provide a selection for circuits requiring these ratings.
  • Double-Pole Breakers Included: One 30 A and one 40 A double-pole breaker support circuits requiring two-pole protection at these ratings.
  • 30-Space Panel Capacity: Accommodates up to 60 circuits using suitable tandem breakers, with capacity for 30 tandems.
  • Flexible Indoor Installation: A white combination flush/surface cover accommodates either installation style, and a grounding bar is included separately for installation.

Specifications

Product range Schneider Electric Homeline
Package contents 1 main-breaker loadcentre and 14 branch circuit breakers
Panel rated current 200 A
Panel voltage / wiring 120/240 V AC, single-phase, 3-wire
Spaces / maximum circuits 30 / 60
Tandem breaker capacity 30; tandem breakers are not included in this bundle
Included single-pole breakers 10 × 15 A; 2 × 20 A
Included double-pole breakers 1 × 30 A; 1 × 40 A
Branch breaker mounting Plug-in
Panel short-circuit current rating 22 kA (panel specification; not an assembled-bundle rating)
Panel connection / conductor range Lugs for 4 AWG–250 kcmil aluminum or copper conductors
Mounting / cover Wall mount; white combination flush/surface cover
Grounding bar Included, not installed
Busbar / enclosure Tin-plated aluminum busbar; welded sheet-steel enclosure
Panel enclosure / certification NEMA 1, indoor; CSA certified
Panel operating temperature −5 to 40 °C
