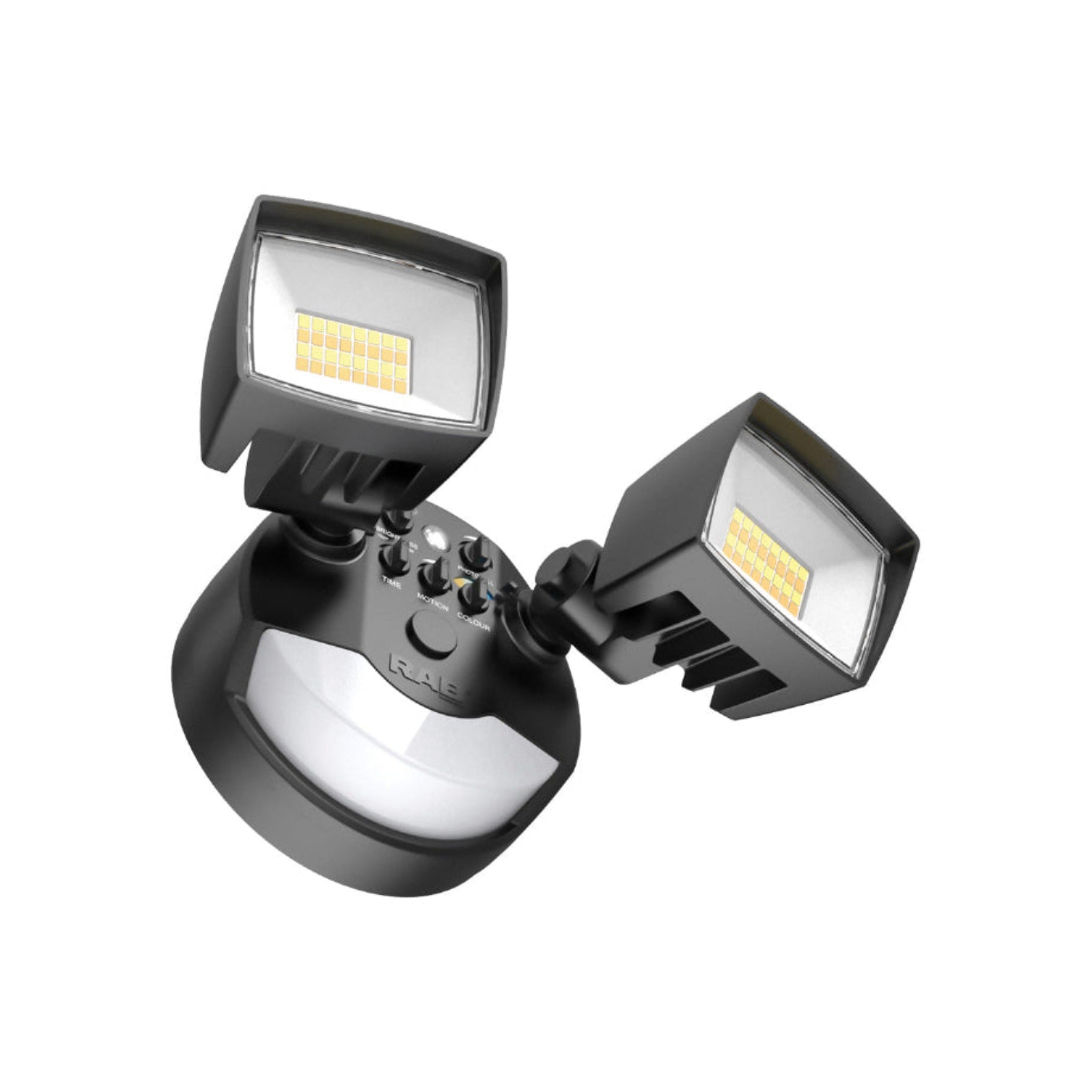

RAB Design 25W Twin Head Motion Sensor LED Flood Light, Matte Black, Model 87777
RAB Design 25W Twin Head Motion Sensor LED Flood Light, Matte Black, Model 87777
Pickup available at IES - Mississauga
Usually ready in 4 hours
The RAB Design NS2H-LED is a professional-grade twin head LED flood light built for demanding job-site conditions and long-term outdoor installations. Designed for professional electricians and contractors, this fixture delivers up to 3,300 lumens of selectable colour temperature light (3000K, 4000K, or 5000K) from a robust die-cast aluminium housing — making it the go-to choice for illuminating driveways, parking areas, building perimeters, and commercial exteriors. Tool-less field controls let you dial in brightness, motion sensitivity, standby time, and photocontrol settings on the spot, saving valuable time during installation. The 180° motion sensor with 45-foot detection range provides maximum coverage, while the IP65-rated, closed-back design with integrated gasket keeps out snow, water, and dust — no callbacks, no comebacks.
Specifications
| Wattage | 25W Max / 17W Min |
| Lumens | 3,300 Max / 2,200 Min |
| Efficacy | 130 lm/W |
| Voltage | 120V |
| Colour Temperature | Selectable: 3000K / 4000K / 5000K |
| CRI | 80 |
| Total Harmonic Distortion | < 15% |
| Power Factor | > 0.99 |
| Surge Protection | 2kV |
| Beam Angle | 100° |
| Motion Sensor Coverage | 180° wide, 45 ft. detection range |
| LED Lifespan (L70) | 50,000 hours |
| Finish | Matte Black |
| Housing | Die-cast aluminium |
| Lens | Clear UV-resistant polycarbonate, suitable for outdoor use |
| Mounting | Wall mount or eave mount; compatible with standard 4" round box and octagonal recessed junction box |
| Operating Temperature | -40°C to +50°C (-40°F to 122°F) |
| IP Rating | IP65 |
| Certifications | cULus (UL1598 & CSA C22.2 No. 250.0:21), Wet Location rated |
| Warranty | 5 Years |
