PANASONIC
MFR #FV-0510VS1
UPC #885170306295
Panasonic WhisperValue DC Fan (CFM 50/ 80/ 100), Model FV-0510VS1
$125.71
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

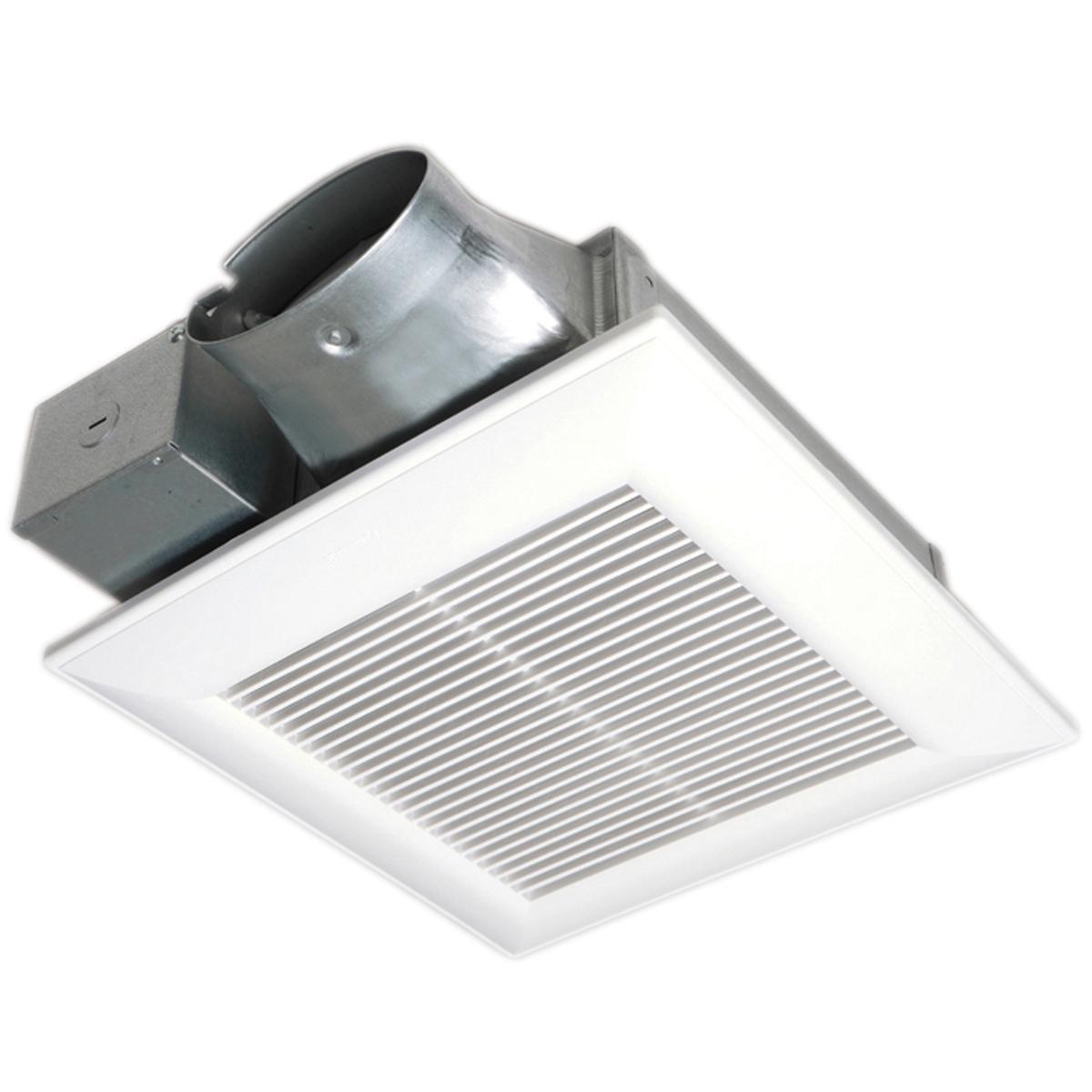

The Panasonic WhisperValue® DC™ Fan is the lowest-profile ENERGY STAR® certified ventilation fan available, slim enough to fit within a standard 2×4 stud bay — making it the go-to choice for single-family, multi-family, and manufactured home projects where ceiling depth is limited. Its revolutionary DC motor with SmartFlow™ technology and Pick-A-Flow® speed selector allow airflow to be set at 50, 80, or 100 CFM to match the ventilation requirement of any bathroom. The unique L-shaped bracket and 4” oval duct connection support both ceiling and wall installation, giving contractors maximum flexibility on the job site.
Specifications
| Brand | Panasonic |
| Part Number | FV-0510VS1 |
| Colour | White |
| Airflow (CFM) | 50 / 80 / 100 CFM (Selectable) |
| Motor Type | DC Motor with SmartFlow™ Technology |
| Speed Selector | Pick-A-Flow® Multi-Speed (50 / 80 / 100 CFM) |
| Housing Depth | 3-3/8 in (86 mm) |
| Housing Dimensions | 269 × 260 × 86 mm (10-5/8 × 10-1/4 × 3-3/8 in) |
| Duct Diameter | 4 in (102 mm) Oval |
| Mounting | L-Shaped Bracket — Ceiling or Wall |
| Grille Size | 13 sq in (330 sq mm) |
| Certifications | ENERGY STAR®, ASHRAE 62.2, LEED; cUL Listed (Tub/Shower with GFCI) |
| Radiation Damper | Available |
| Weight | 8.82 lbs |
| Product Category | Heating, Cooling & Ventilation |
Panasonic WhisperValue DC Fan (CFM 50/ 80/ 100), Model FV-0510VS1
$125.71
/
