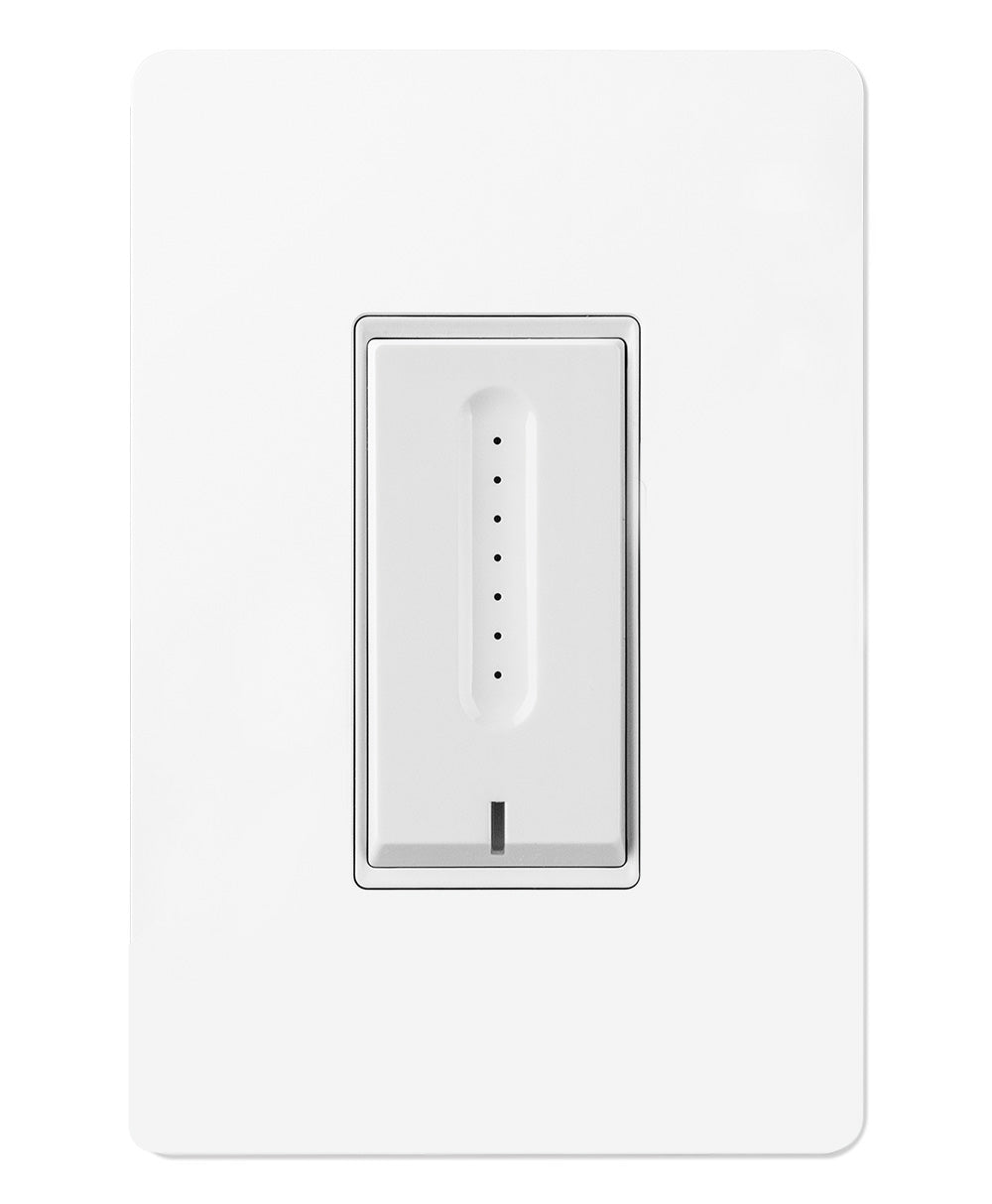

OnCloud Smart Wi-Fi Dimmer, White, LC-CRTL-DIM-1
Pickup available at IES - Mississauga
Usually ready in 4 hours
The Liteline OnCloud Smart Wi-Fi Dimmer (LC-CRTL-DIM-1) is a direct replacement for a standard single-pole dimmer — no smart hub, no bridge, no extra hardware required. It installs in minutes using the same wiring as a conventional dimmer (neutral wire required), making it ideal for electricians upgrading residential or light commercial spaces to smart lighting without a full system overhaul. Once wired, the dimmer connects to any 2.4 GHz Wi-Fi network and is immediately controllable via the WiZ App (iOS and Android) from anywhere — whether the homeowner is in the next room or across the country. The 7-level touch slider and ON/OFF press give occupants intuitive local control, while voice commands through Google Assistant, Siri, Alexa, and IFTTT add hands-free convenience. Rated for up to 400W incandescent or 150W LED/fluorescent loads, the durable polycarbonate body with snap-on faceplate delivers a clean, finished look in any décor.
Specifications
| Brand | Liteline |
| Series | OnCloud |
| Part Number | LC-CRTL-DIM-1 |
| Type | Smart Wi-Fi Dimmer |
| Max. Load — Incandescent | 400 W |
| Max. Load — LED / Fluorescent | 150 W |
| Dimming Levels | 7-Level Touch Slider + ON/OFF Press |
| Wireless Standard | IEEE 802.11 b/g, Wi-Fi 2.4 GHz |
| Smart Control | WiZ App (iOS & Android), Google Assistant, Siri, Alexa, IFTTT |
| Hub Required | No |
| Switch Configuration | Single Pole Only (Not Compatible with 3-Way) |
| Neutral Wire | Required |
| Body Material | Polycarbonate with Snap-On Faceplate |
| Location Rating | Dry Location (Indoor Only) |
| Operating Temperature | -5°C – 45°C (23°F – 113°F) |
