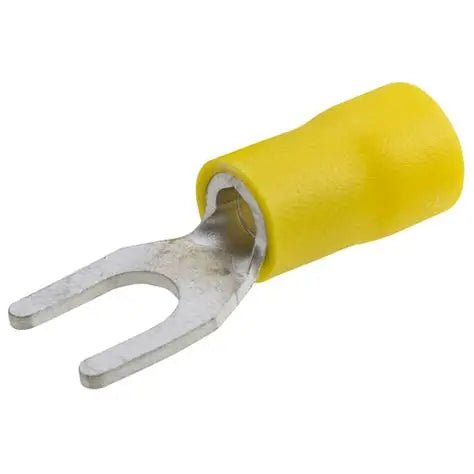

Fork Terminal, 12-10 AWG, #8 Stud, Vinyl Insulated, Yellow, 25 Pack
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
This vinyl-insulated copper fork terminal with a brazed construction provides a reliable compression connection for 12-10 AWG copper conductors on #8 stud applications, rated at 600 V and 75°C for use in commercial and industrial wiring installations.
- Wire Range: 12-10 AWG (solid and stranded copper)
- Stud Size: #8
- Pack Quantity: 25
Specifications
| Conductor Range (CU Solid) | 10 Sol – 12 Sol |
| Conductor Range (CU Stranded) | 10 Str – 12 Str |
| Mounting Bolt/Stud Size | #8 |
| Tongue Type | Spade (Fork) |
| Connection Type | Compression |
| Construction | Brazed |
| Conductor Material | Copper |
| Connector Finish | Tin |
| Insulation | Vinyl |
| Colour Code | Yellow |
| Voltage Rating | 600 V |
| Temperature Rating | 75°C |
| Number of Conductors | 1 |
| Mounting Hole Type | Thru |
| Installation Tooling | ILST-22K |
| Installing Dies | Die Set A |
| Certification | UL/cUL 486A/B Listed |
| Pack Quantity | 25 |
| Brand | nVent ILSCO |
