NVENT - ILSCO
MFR #VDFT-18-250-P50
UPC #783669214031

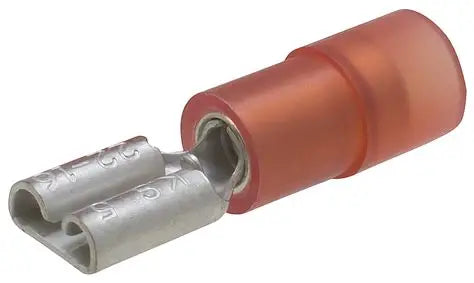

Female Vinyl-Insulated Disconnect 22-16 AWG, Red, .250", 50PK
$18.08
/
In Stock
Shipping within Ontario only. Rates calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
ONTARIO
Ontario-wide Delivery
In-stock items typically ship next business day.
Free Shipping on Eligible Orders Over $150
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free Warehouse Pickup
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns & Exchanges
Returns available on eligible items.
Related categories
This vinyl-insulated brass female disconnect terminal with a butted compression construction provides a secure 0.250" tab connection for 22-16 AWG copper conductors, rated at 300 V and 75°C for commercial and industrial wiring applications.
- Wire Range: 22-16 AWG (solid and stranded copper)
- Tab Size: 0.250"
- Pack Quantity: 50
Specifications
| Conductor Range (CU Solid) | 18 Sol – 22 Sol |
| Conductor Range (CU Stranded) | 18 Str – 22 Str |
| Tab Size | 0.250" |
| Tongue Type | Disconnect (Female) |
| Connection Type | Compression |
| Construction | Butted |
| Conductor Material | Copper |
| Body Material | Brass |
| Connector Finish | Tin |
| Insulation | Vinyl |
| Colour Code | Red |
| Voltage Rating | 300 V |
| Temperature Rating | 75°C |
| Number of Conductors | 1 |
| Installation Tooling | ILST-22K |
| Installing Dies | Die Set C |
| Certification | UL/cUL 310 Listed |
| Pack Quantity | 50 |
| Brand | nVent ILSCO |
