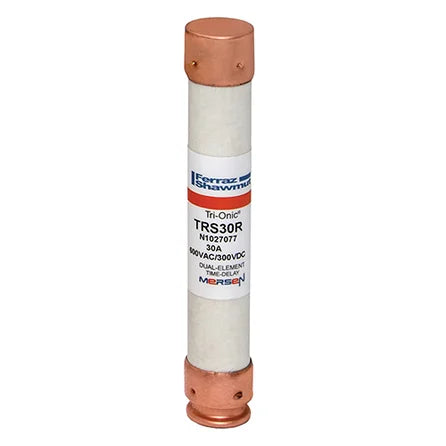

Mersen Ferraz Shawmut Time Delay Fuse (30A, 600V), Model TRS30R
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
The Mersen (formerly Ferraz Shawmut / Gould) Tri-Onic TRS30R is a current-limiting, time-delay fuse rated for 30A and 600V that delivers advanced overcurrent protection for motor circuits, transformers, and service entrance equipment — featuring:
• UL Class RK5 listing with a 200kA AIC rating
• Time-delay design engineered to withstand motor inrush currents
• Rejection ferrule terminal for Type R fuse holder compliance
Specifications
| Brand | Mersen (formerly Ferraz Shawmut / Gould Fuses) |
| Series | Tri-Onic |
| Amperage | 30A |
| Voltage Rating | 600V |
| UL Class | RK5 |
| AIC Rating | 200kA @ 600V |
| Type | Current Limiting, Time-Delay, Non-Indicating |
| Terminal Type | Ferrule (Rejection) |
| Dimensions | 5" x 13/16" |
| Applications | Motor Circuits, Mains, Feeders, Branch Circuits, Transformers, Service Entrance Equipment, General-Purpose Equipment |
