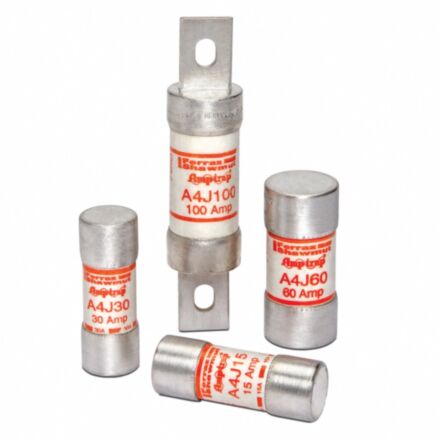

Mersen Amp-Trap® 60A Class J Fast-Acting Fuse 600V, Model A4J60
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
The Mersen Amp-Trap® A4J60 is a 60-amp, Class J current-limiting fuse built for professional electricians and contractors who demand reliable, high-performance overcurrent protection on every job. Rated for 600 V AC / 300 V DC with an industry-leading 200/100 kA interrupting capacity, this fast-acting fuse limits peak let-through current to protect sensitive downstream equipment — from motor controls and variable frequency drives to panelboards and industrial disconnects. Its unique rejection-style ferrule design ensures it can only be installed in Class J fuseholders, eliminating dangerous misapplication in the field. The durable fibreglass body maintains dimensional stability in harsh industrial environments, while the easy-to-read imprint label speeds up identification and replacement during service calls. Tin-plated and silver-plated copper contacts ensure low resistance and long service life, making the A4J60 a dependable choice for North American power distribution applications.
Specifications
| Series | Amp-Trap® A4J |
| Amperage Rating | 60 A |
| Voltage Rating | 600 V AC / 300 V DC |
| Interrupt Rating | 200/100 kA |
| Fuse Class | Class J |
| Fuse Type | Current Limiting, Low Voltage |
| Rejection/Non-Rejection | Rejection |
| Terminal Type | Ferrule |
| Mounting Type | Clip |
| Body Style | Cylindrical |
| Body Material | Polyester |
| Body Dimensions | 1-1/16 in Dia x 2-3/8 in L |
