Lutron Caséta Diva Smart Dimmer Switch, White, Model DVRF-6L-WH
Pickup available at IES - Mississauga
Usually ready in 4 hours
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
The Lutron Caséta Diva smart dimmer switch is a no-neutral-wire-required, in-wall RF dimmer with a classic paddle-style design, built for seamless integration into the Caséta smart lighting ecosystem for residential and light commercial applications.
- 150W LED/CFL or 600W incandescent/halogen load capacity at 120V

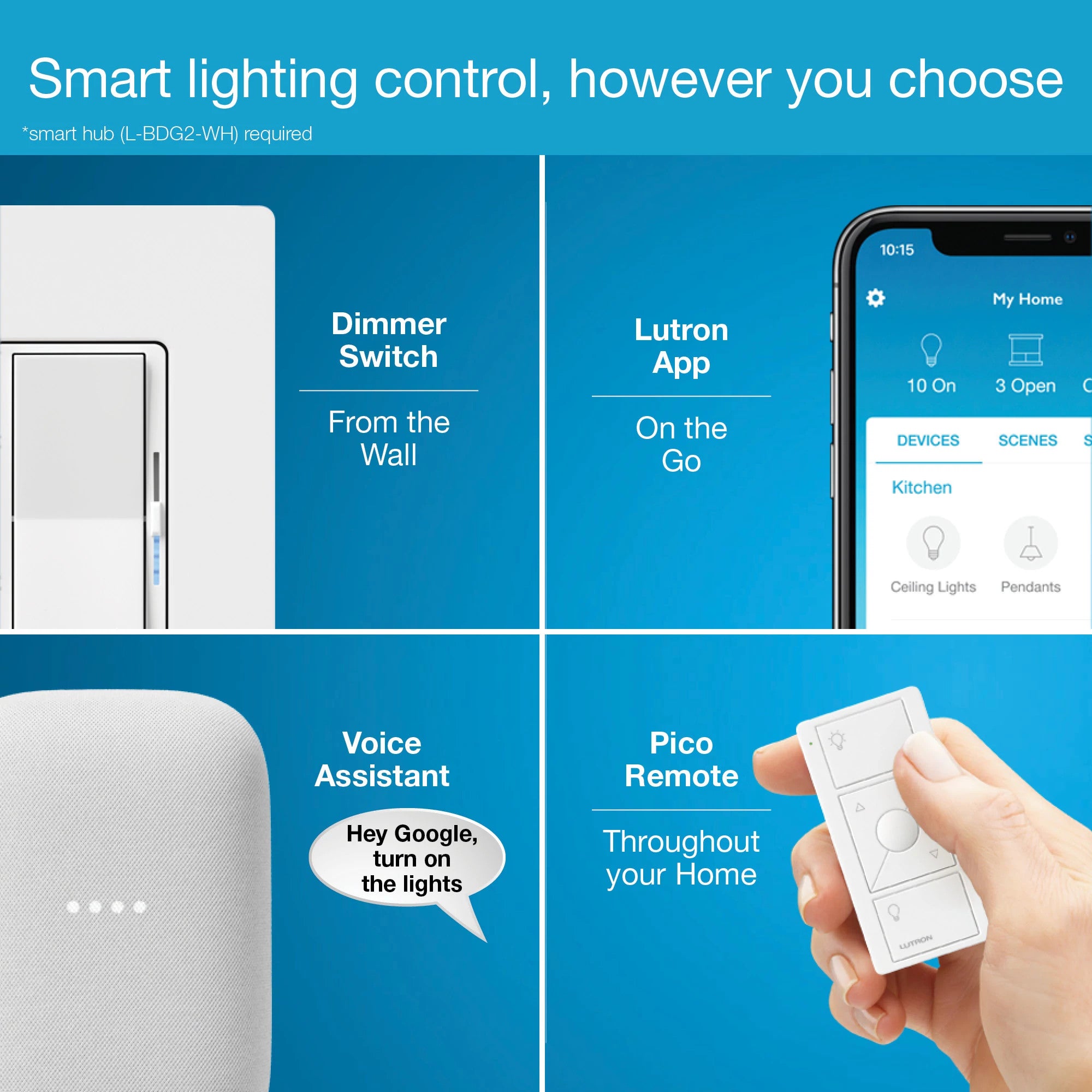

- RF wireless control via Smart Hub — works with Alexa, Apple Home, and Google Assistant

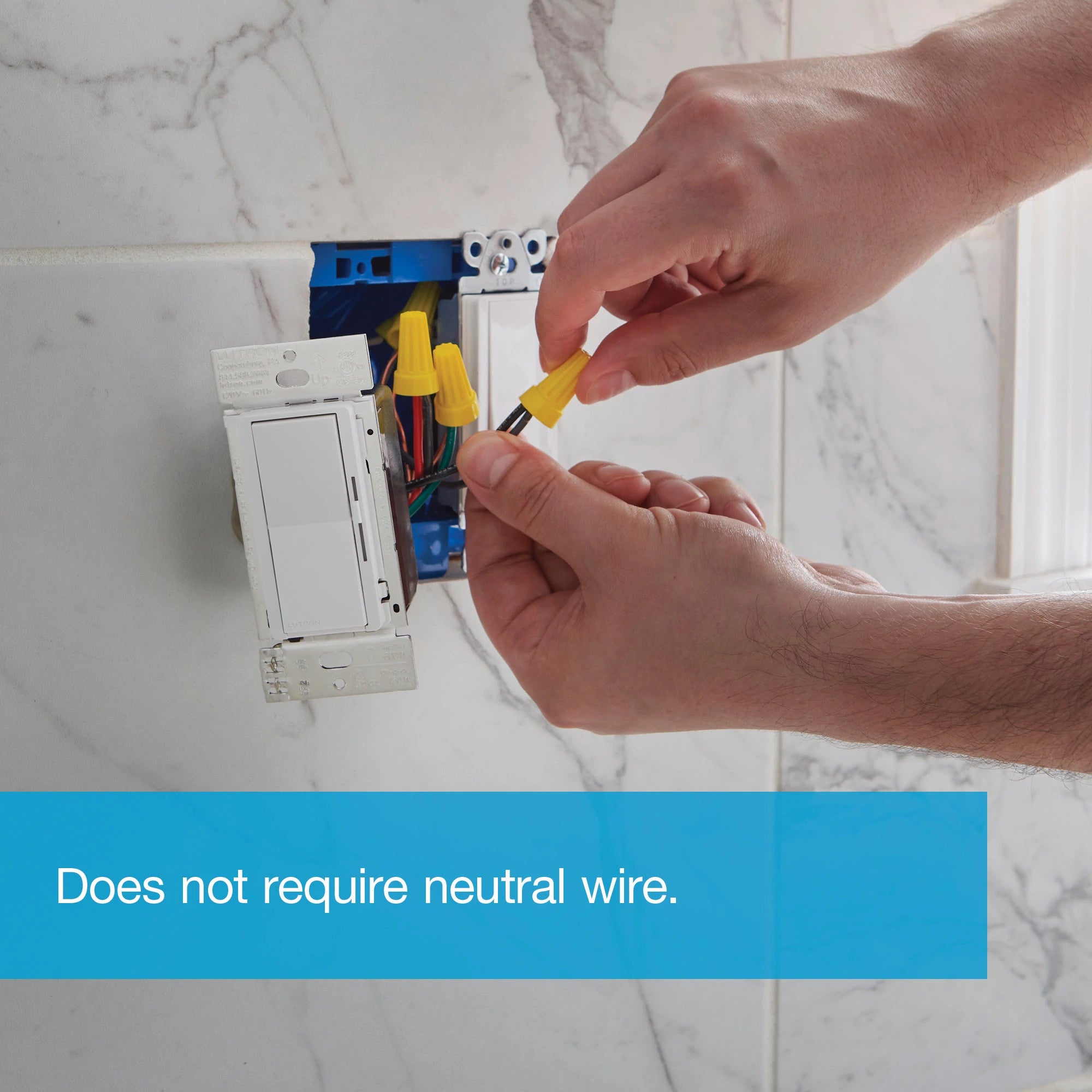

- No neutral wire required; compatible with conventional 3-way wiring
Specifications
| Brand | Lutron® |
| Series | Diva® / DVRF |
| Type | Smart In-Wall Dimmer, Designer Style |
| Operating Voltage | 120 V~ 50/60 Hz |
| Wattage | 150 W LED/CFL; 600 W Incandescent/Halogen |
| Amperage Rating | 3 A (0.125 A standby) |
| Lamp Type | CFL / LED / Incandescent / Halogen |
| Number of Poles | 3 |
| Operation Mode | Rocker Slide (On/Off + Dimming) |
| Wiring | Conventional 3-way; compatible with mechanical switch in 3-way applications; also compatible with DVRF-AS accessory switch |
| Wallbox Requirement | 1-gang U.S. wallbox; 3½ in (89 mm) depth recommended, 2¼ in (57 mm) minimum |
| Status Indicator | White soft glow light bar |
| Power Failure Memory | Yes — returns to previously set level on power restore |
| Wireless Protocol | Radio Frequency (RF) — Caséta ecosystem |
| RF Range | 60 ft (18 m) line-of-sight; 30 ft (9 m) through walls to Smart Hub or Pico remote |
| System Capacity | Up to 75 total wireless devices per Smart Hub / Smart Hub PRO system; up to 10 Pico/motion sensor devices paired per dimmer (no hub) |
| Wallplate Compatibility | Lutron Claro® wallplates (snap-on, no visible attachment); designer-style wallplates from other manufacturers (sold separately) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F), 0–90% humidity, non-condensing; indoor use only |
| Colour | White |
| Dimensions | 4.7 in H × 2.94 in W × 1.6 in D |
| Regulatory Approvals | cULus Listed; NOM Certified; FCC Approved (Class B, Part 15); Industry Canada Certified; IFTEL Certified; NEMA 410 |
| Surge & ESD Protection | Tested per IEC 61000-4-2 (ESD); tested per IEEE C62.41-1991 (surge voltages) |
