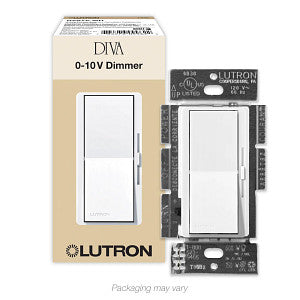

Diva Dimmer - Gloss Finish, Fluorescent or LED Dimming with 0-10V Ballasts and Drivers, White, Model DVSTV-WH
Diva Dimmer - Gloss Finish, Fluorescent or LED Dimming with 0-10V Ballasts and Drivers, White, Model DVSTV-WH
Pickup available at IES - Mississauga
Usually ready in 4 hours
The Lutron Diva DVSTV-WH is a 0-10V dimmer switch built for professional electricians and contractors who need a reliable, no-fuss dimming solution for commercial and residential LED and fluorescent fixtures. Featuring single-pole and 3-way functionality with no separate power pack or neutral wire required, it installs in approximately 15 minutes using existing wiring — ideal for retrofit projects, tenant improvements, and new construction alike. The large paddle switch and captive slide control deliver intuitive on/off and dimming operation, while the low-end trim adjustment ensures flicker-free performance across a wide range of 0-10V ballasts and drivers. Coordinating wall plate sold separately.
Specifications
| Brand | Lutron |
| Model | DVSTV-WH |
| Colour | White |
| Dimming Protocol | 0-10V |
| Compatible Fixture Types | 0-10V LED and fluorescent fixtures |
| Neutral Wire Required | No |
| Power Pack Required | No |

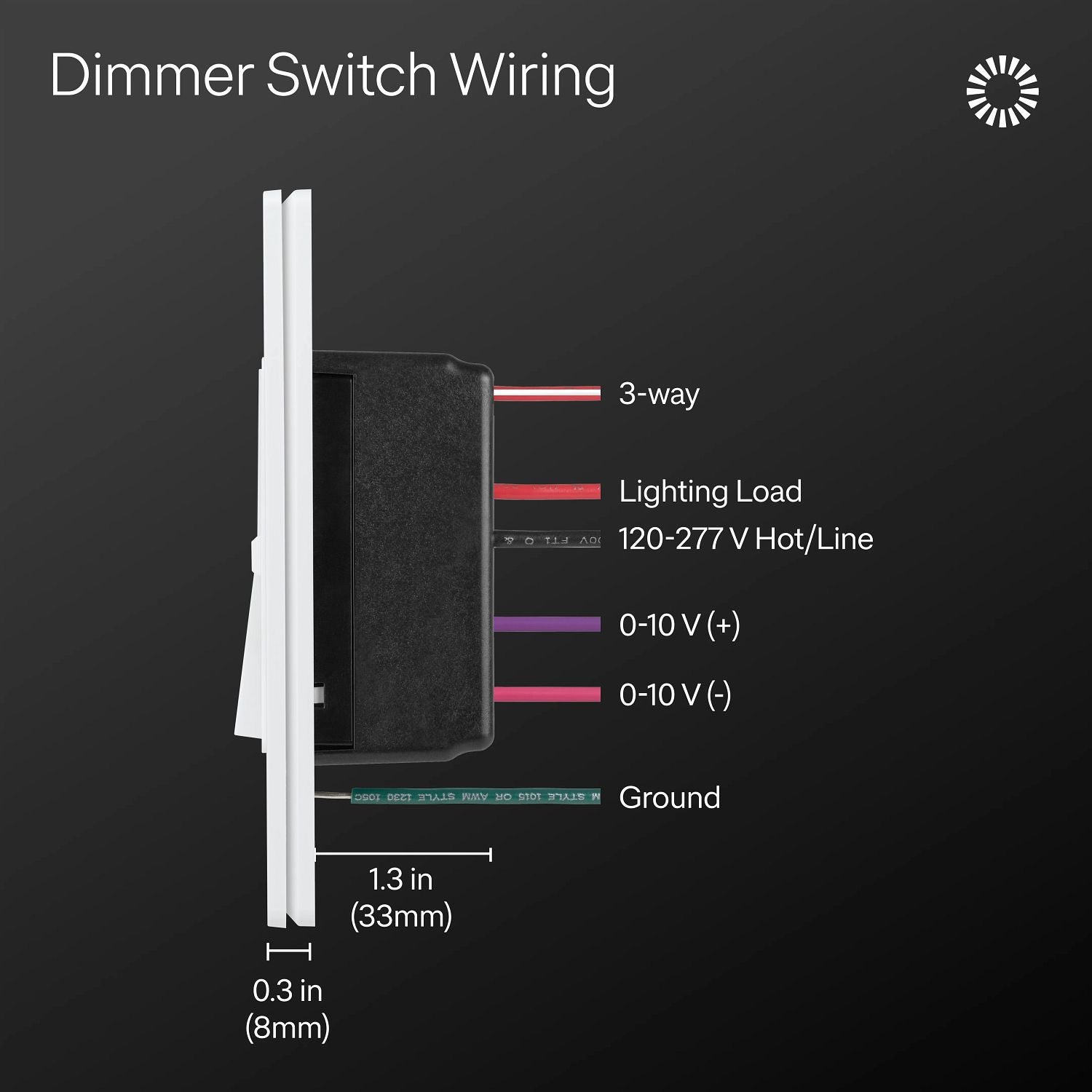

| Wiring Configuration | Single-pole or 3-way |

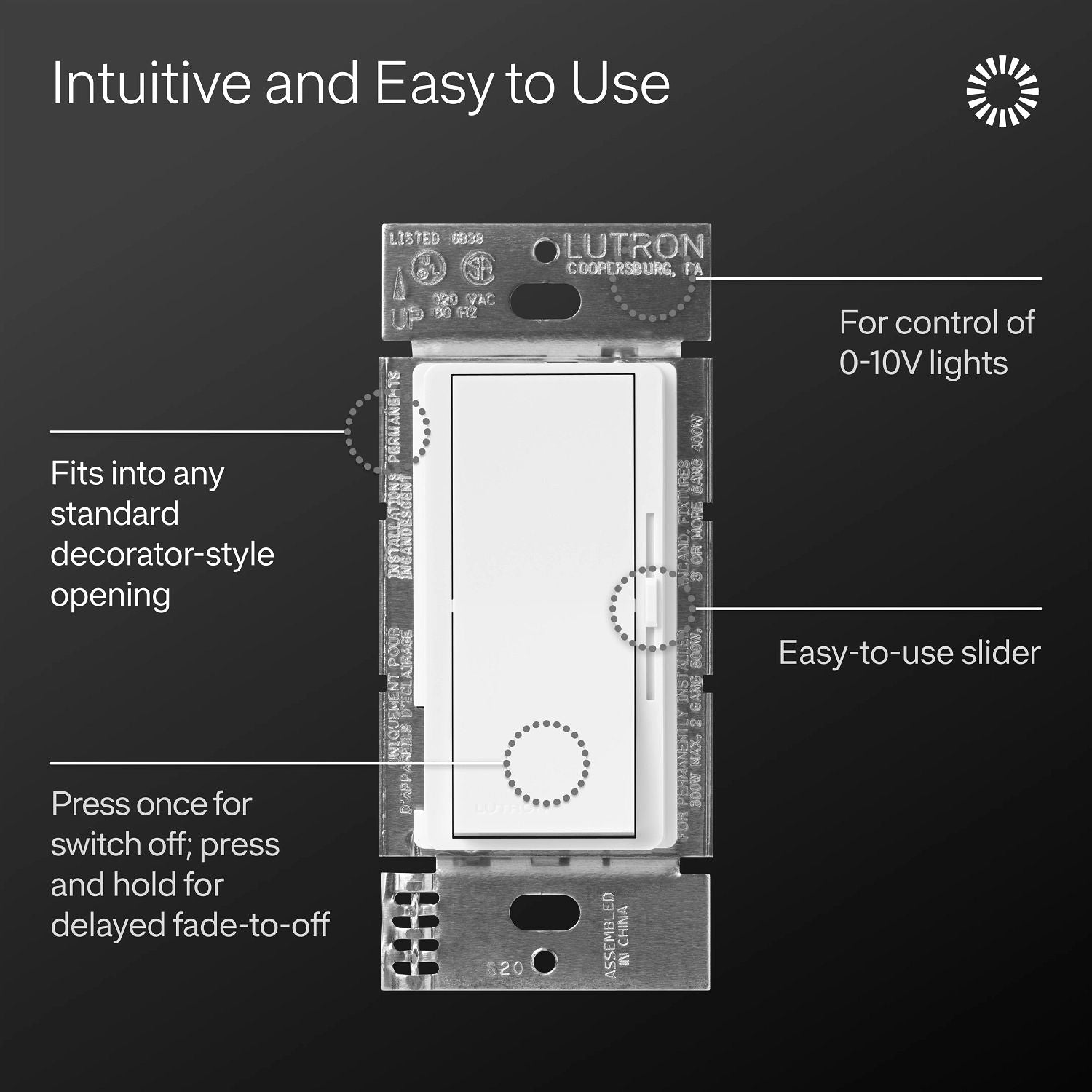

| Control Type | Large paddle switch with captive slide control |
| Low-End Trim Adjustment | Yes |
| Amperage | 15A |
| Estimated Installation Time | ~15 minutes using existing wiring |
| Wall Plate | Sold separately |
