Claro Smart Switch for Caseta Smart Lighting, Rocker On/Off Operation, Model DVRF-5NS-WH
Claro Smart Switch for Caseta Smart Lighting, Rocker On/Off Operation, Model DVRF-5NS-WH
Pickup available at IES - Mississauga
Usually ready in 4 hours
Introducing the Claro smart switch for Caseta smart lighting. Lutron’s most popular switch design is now smart and works in your Caseta home. Match existing Claro switches in your home with the same elegant, recognized paddle style, updated to match existing Caseta products with an LED indicator light. Welcome Home to Peace of Mind - always come back to a well-lit home with the Claro smart switch. Enable the Smart Away feature to randomly turn lights on and off, to make it look like you're home, even if you're away (smart hub required). Use the smart hub to connect your Claro smart switch to more leading smart home devices - including Alexa, Apple Home, the Google Assistant, Ring, and Sonos – than any other smart lighting control brand. Not only does the smart hub unlock smart control and device integration - but it also doesn't use Wi-Fi to control your lights. Stay connected even when your Wi-Fi goes down and stop slowing your internet speed with more devices. Create a new 3-way or replace an existing one with the Claro smart switch. Pair a Pico remote and bracket to your switch and mount the Pico/bracket on almost any surface - no cutting holes or pulling wire requires (Pico and bracket sold separately). Includes (1) Claro smart switch; coordinating wallplate and other accessories sold separately.
Specifications
| Brand | Lutron® |
| Series / Platform | Claro® / Caséta® (DVRF) |
| Part Number | DVRF-5NS-WH |
| Type | Smart In-Wall Switch, Designer Style |
| Operating Voltage | 120 V~ 50/60 Hz |
| Wattage | 150 W LED/CFL; 600 W Incandescent/Halogen |
| Amperage Rating | 5 A (0.125 A standby) |
| Frequency | 50/60 Hz |
| Compatible Lamp Types | CFL, LED, Incandescent, Halogen |
| Number of Poles | 3 (supports conventional 3-way wiring) |

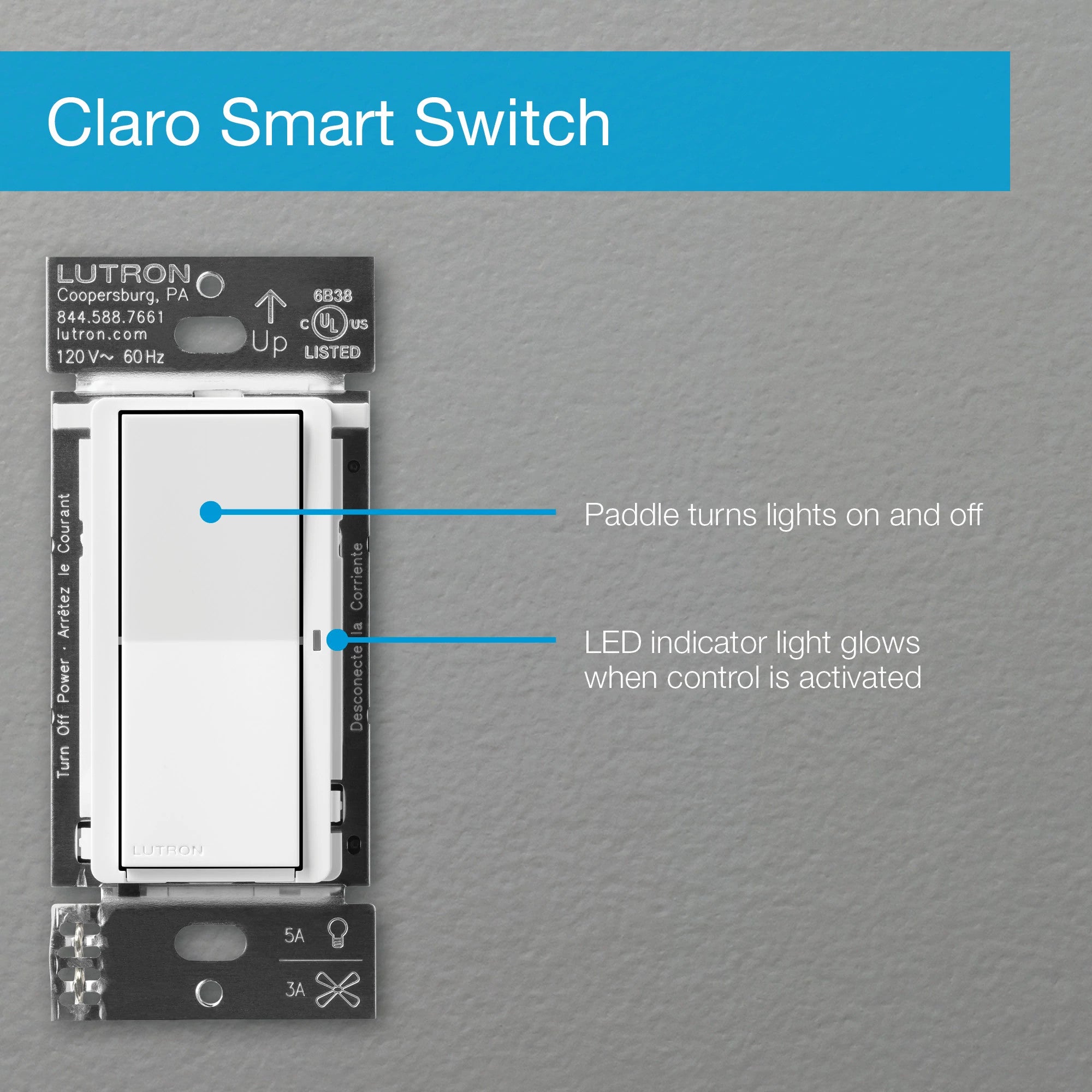

| Operation Mode | Rocker On/Off |

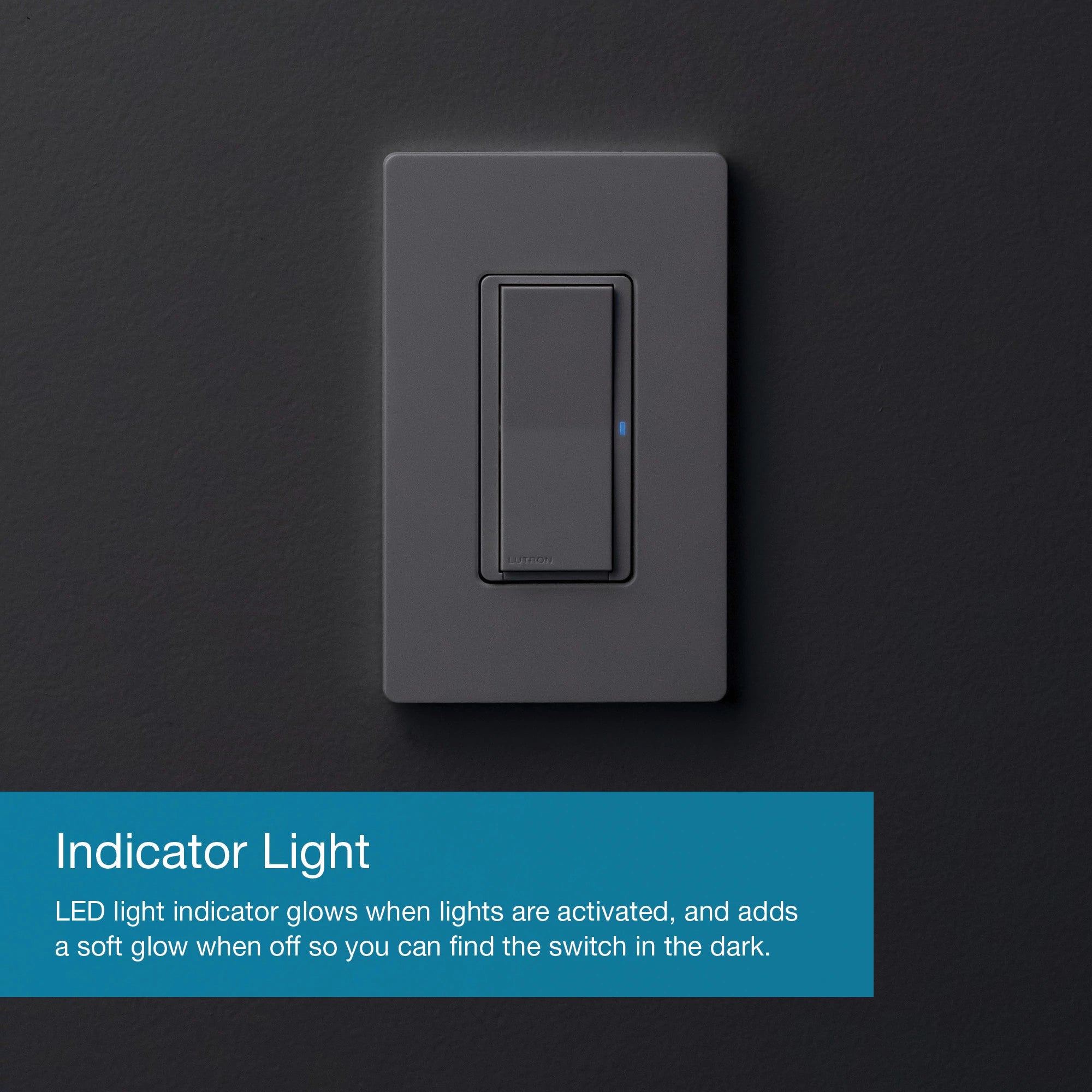

| Status Indicator | White status LED |
| Mounting | 1-gang U.S. wallbox; 3½ in (89 mm) depth recommended, 2¼ in (57 mm) minimum |
| Wallplate Compatibility | Lutron Claro wallplates or designer-style wallplates (sold separately) |
| Wireless Communication | Radio Frequency (RF) — Caséta ecosystem |
| Smart Hub Range | 60 ft (18 m) line-of-sight; 30 ft (9 m) through walls |
| System Device Capacity | Up to 75 total wireless devices per Smart Hub / Smart Hub PRO system |
| Pico / Sensor Pairing (no Hub) | Up to 10 Pico remote controls or Caséta motion sensors per switch |
| Power Failure Memory | Yes — restores previously set level upon power restoration |
| Local Operation | Always operates locally; no system control required |
| Dimensions | 4.7 in H × 2.94 in W × 1.6 in D |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F), 0–90% RH non-condensing; indoor use only |
| Colour | White |
| Weight | 0.28 lb |
| Regulatory Approvals | cULus Listed · NOM Certified · FCC Approved (Class B, Part 15) · Industry Canada Certified · IFTEL Certified |
| Surge / ESD Protection | ESD tested per IEC 61000-4-2; Surge tested per IEEE C62.41-1991 |
