Caseta Wireless Wireless In-Wall ELV+ Dimmer, 3-Way On/Off Operation, Model PD-5NE-WH-C
Caseta Wireless Wireless In-Wall ELV+ Dimmer, 3-Way On/Off Operation, Model PD-5NE-WH-C
Pickup available at IES - Mississauga
Usually ready in 4 hours
The Lutron Caséta® Wireless Phase Selectable Dimmer (PD-5NE-WH-C) is the go-to choice for professional electricians and contractors tackling residential retrofits, new construction, and multi-unit projects. Its phase-selectable design eliminates compatibility guesswork by automatically adapting to CFL, LED, incandescent, and halogen loads on 120 V circuits — a single dimmer that handles mixed-load jobs without rewiring. Wireless RF communication with Pico remotes and the Lutron Smart Hub means no traveller wire is needed for 3-way applications, saving time on every rough-in. Built to withstand electrostatic discharge and surge voltages, and backed by power failure memory that restores the last set level after an outage, this dimmer is engineered for the reliability that job sites demand. Compatible with Lutron Claro wallplates and standard 1-gang U.S. wallboxes, it installs cleanly in any residential application.
Specifications
| Brand | Lutron® |
| Series | Caséta® Wireless |
| Part Number | PD-5NE-WH-C |
| Type | 1-Pole Phase Selectable Wireless Dimmer |
| Operating Voltage | 120 V~ 50/60 Hz |
| Lamp Type Compatibility | CFL / Halogen / Incandescent / LED |
| Operation Mode | 3-Way On/Off (conventional 3-way wiring) |
| Wireless Communication | RF — compatible with Pico remotes, Caséta motion sensors, and Lutron Smart Hub / Smart Hub PRO |
| Wireless Range | 60 ft (18 m) line-of-sight / 30 ft (9 m) through walls |
| System Capacity (Smart Hub) | Up to 75 total wireless devices per system |
| Paired Devices (No Hub) | Up to 10 Pico remotes or Caséta motion sensors per dimmer |

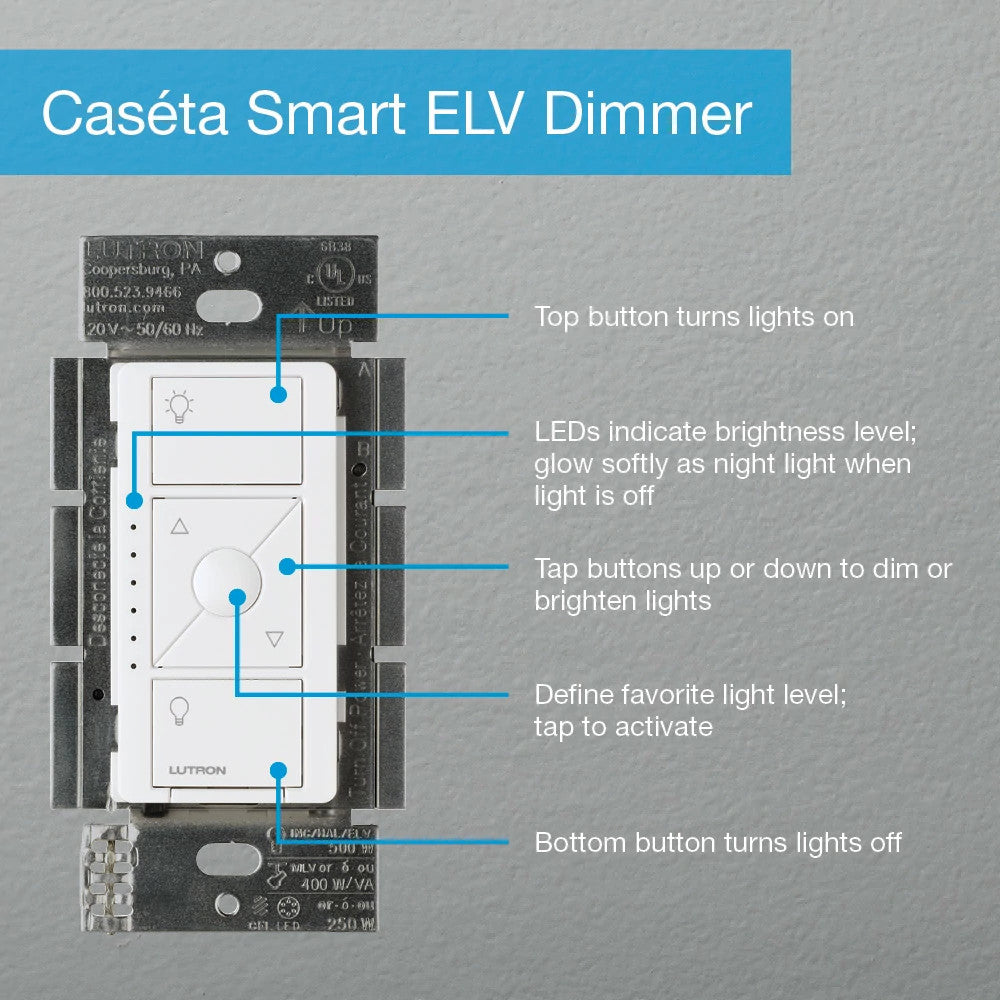

| Status Indicator | Green status LED(s) to indicate load status |
| Power Failure Memory | Yes — restores previously set level upon power restoration |
| Wallbox Requirement | 1-gang U.S. wallbox; 3½ in (89 mm) depth recommended, 2¼ in (57 mm) minimum |

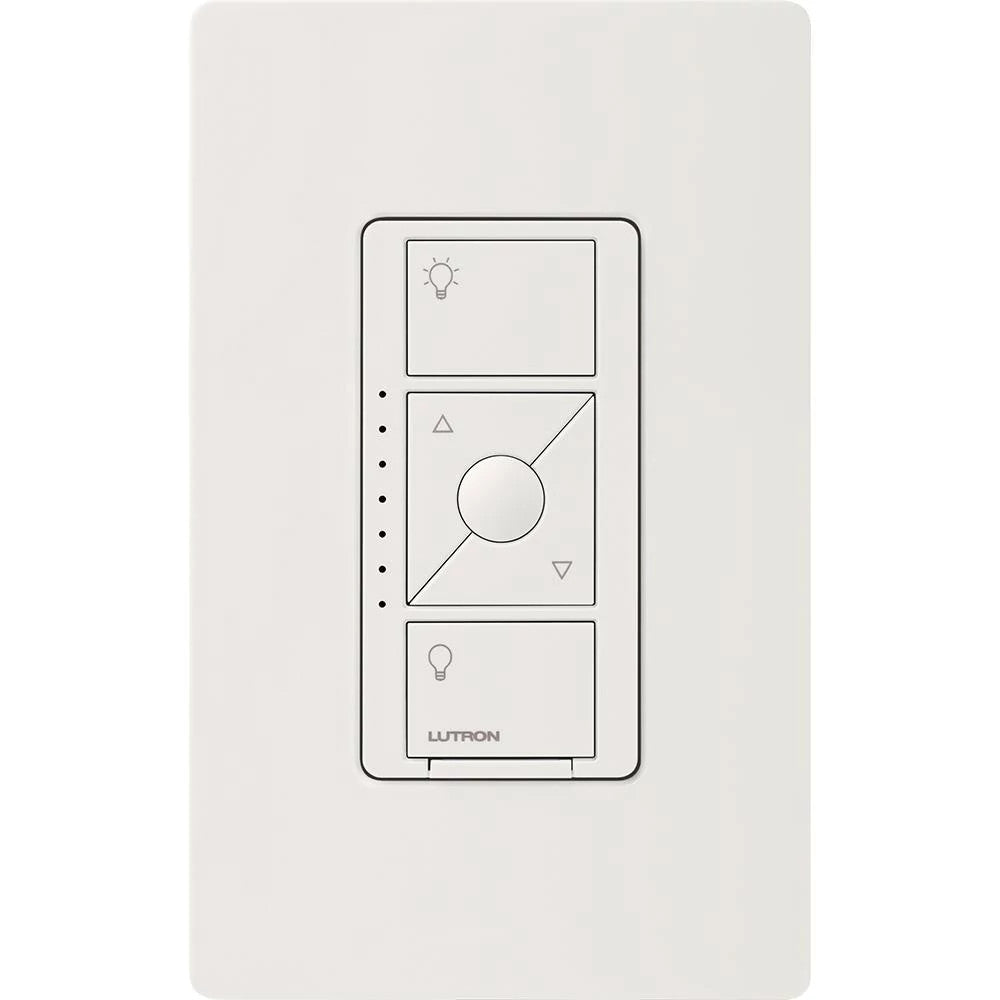

| Wallplate Compatibility | Lutron Claro wallplates or designer-style wallplates (sold separately) |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F), 0–90% humidity, non-condensing |
| Installation Environment | Indoor use only |
| Colour | White |
| Regulatory Approvals | cULus Listed, NOM Certified, FCC Approved (Class B, Part 15), Industry Canada Certified, IFTEL Certified |
| NEMA Rating | NEMA 410: PD-5ANS, PD-6ANS, PD-5WS, PD-10NXD, PD-5NE; DVRF-6L, DVRF-5NS |
| Surge Protection | Tested per IEEE C62.41-1991 — withstands surge voltages without damage or loss of operation |
| ESD Protection | Tested per IEC 61000-4-2 — withstands electrostatic discharge without damage or memory loss |
