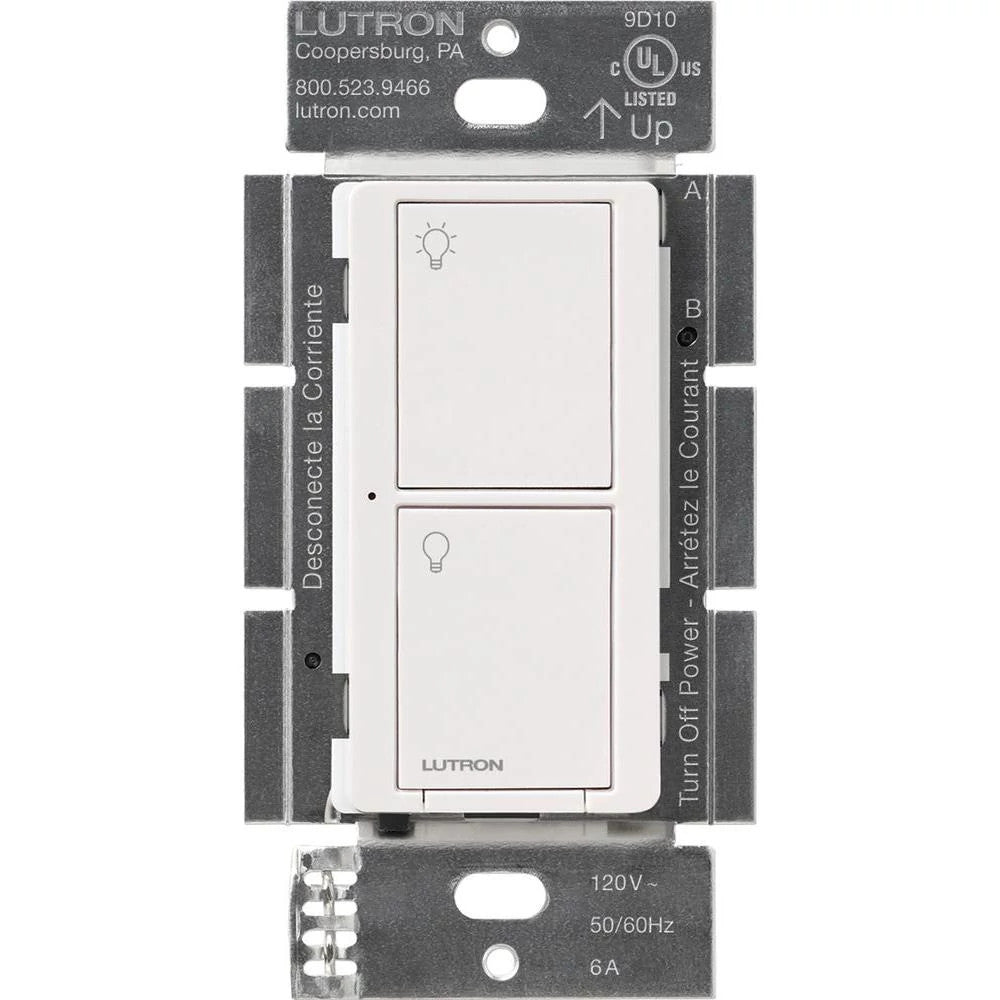

Caseta Wireless In-Wall Smart Switch For Light or Fan Control, White, Model PD-6ANS-WH
Caseta Wireless In-Wall Smart Switch For Light or Fan Control, White, Model PD-6ANS-WH
Pickup available at IES - Mississauga
Usually ready in 4 hours

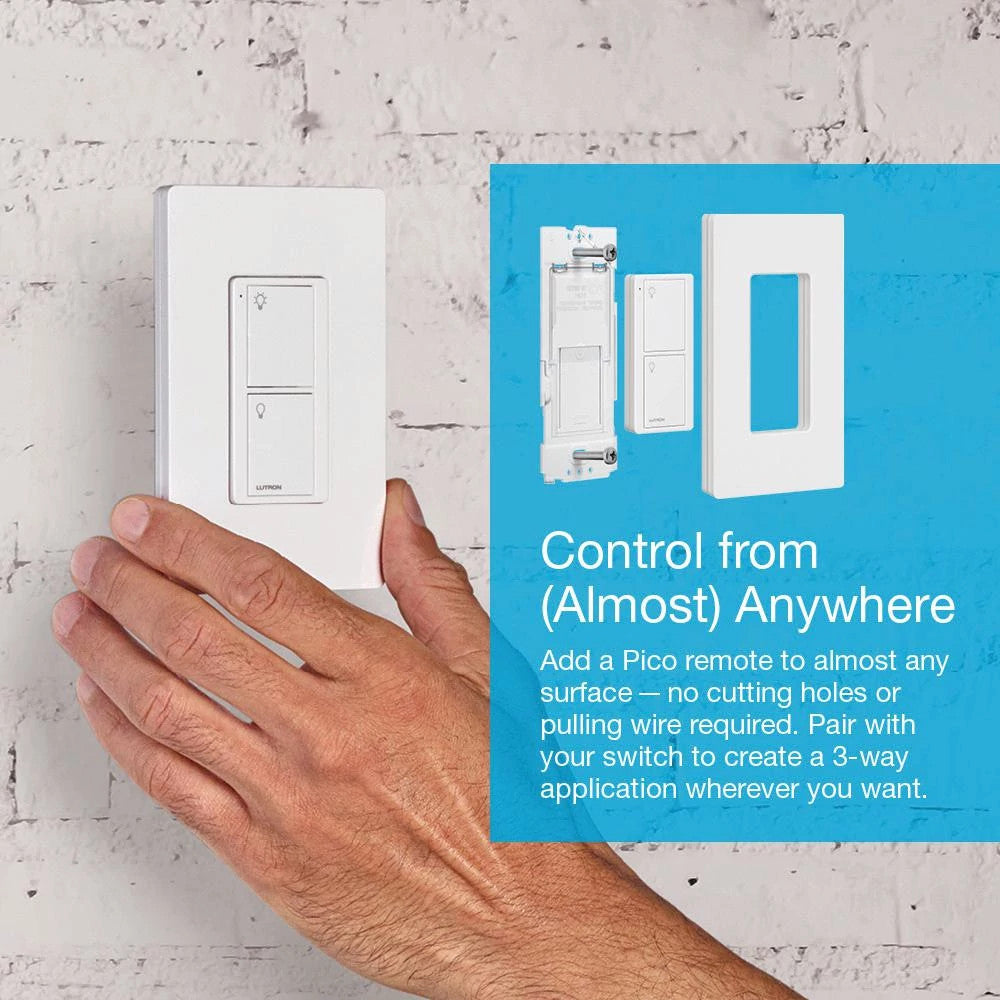

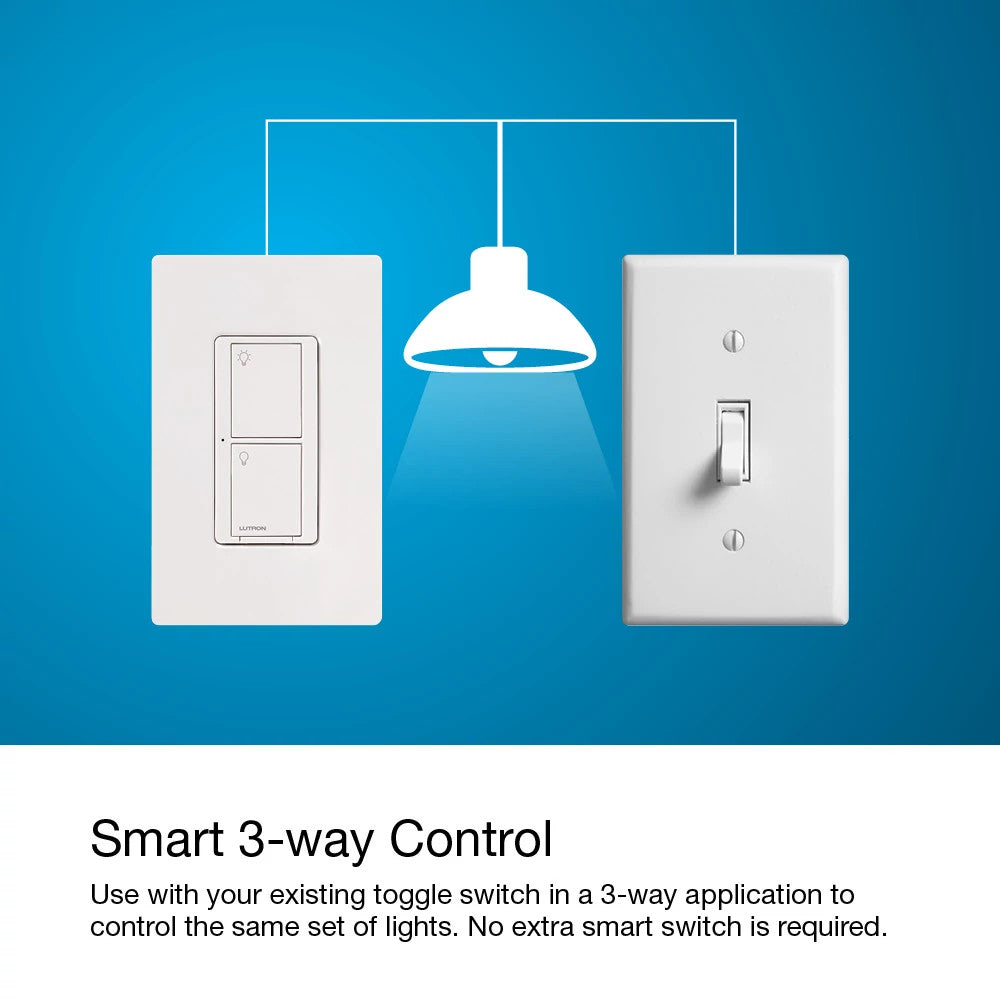

The Caseta Wireless In-Wall Switch works with up to 6 Amp of lighting (LED/incandescent/halogen/ELV/MLV), and 3.6 Amp of general-purpose fans. Neutral wire required. For 3-way applications, existing 3-way switches or Pico Remotes can be used with this switch. 4-way or multi-location applications require Pico Remote controls. Replace the existing switch with a Pico remote control and wall plate adapter to switch from every location (PICO-WBX-ADAPT sold separately). Use the Lutron Smart Hub (L-BDG2-WH) to connect the Caseta In-Wall Smart switch to more leading smart home devices - including Alexa, Apple Home, Google Home, Ring, and Sonos. Not only does the Lutron Smart Hub unlock smart control and device integration - but it also doesn't use Wi-Fi to control your lights. With the Lutron Smart Hub you stay connected even when your Wi-Fi goes down and you avoid slowing down your internet speed with more devices. Enable the Smart Away feature to randomly turn lights on and off, to make it look like you're home, even if you're away (Lutron Smart Hub, L-BDG2-WH required). Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Specifications
| Brand | Lutron |
| Model / Part Number | PD-6ANS-WH |
| Series | Caséta Wireless |
| Device Type | Smart Switch |
| Operating Voltage | 120 V~ 50/60 Hz |
| Maximum Load | 6A |
| Compatible Load Types | Halogen, Incandescent, Fluorescent, Ceiling Fans |
| Wiring Configuration | 3-Way (conventional 3-way wiring); compatible with mechanical switch in 3-way applications |
| Neutral Wire Required | Yes |
| Wallbox Requirement | 1-Gang U.S. wallbox; 3½ in (89 mm) depth recommended, 2¼ in (57 mm) minimum |
| Wallplate Compatibility | Lutron Claro wallplates or designer-style wallplates from other manufacturers (sold separately) |
| Status Indicator | Green status LED(s) to indicate load status |
| Power Failure Memory | Yes — returns to previously set level upon power restoration |
| Local Operation | Yes — load controls always operate locally without system control |
| Wireless Communication | Radio Frequency (RF) — communicates with Pico remotes, Caséta motion sensors, and Lutron Smart Hub / Smart Hub PRO |
| RF Range | 60 ft (18 m) line-of-sight or 30 ft (9 m) through walls to Smart Hub / Pico remotes / motion sensors |
| System Capacity (Smart Hub) | Up to 75 total wireless devices per Smart Hub or Smart Hub PRO system |
| Device Pairing Limit (No Hub) | Up to 10 Pico remotes or Caséta motion sensors per switch (without Smart Hub) |
| Colour | White |
| Ambient Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C), 0%–90% humidity, non-condensing |
| Installation Environment | Indoor use only |
| Surge Protection | Tested per IEEE C62.41-1991 — withstands surge voltages without damage or loss of operation |
| ESD Protection | Tested per IEC 61000-4-2 — withstands electrostatic discharge without damage or memory loss |
| NEMA Rating | NEMA 410: PD-5ANS, PD-6ANS |
| Regulatory Approvals | cULus Listed, NOM Certified, FCC Approved (Class B, Part 15), Industry Canada Certified, IFTEL Certified |
