Lutron Caséta 3-Way Smart Dimmer Kit with Remote, White, Model P-DIM-3WAY-WH-C
Lutron Caséta 3-Way Smart Dimmer Kit with Remote, White, Model P-DIM-3WAY-WH-C
Pickup available at IES - Mississauga
Usually ready in 4 hours

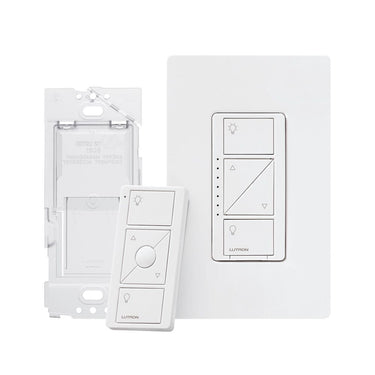

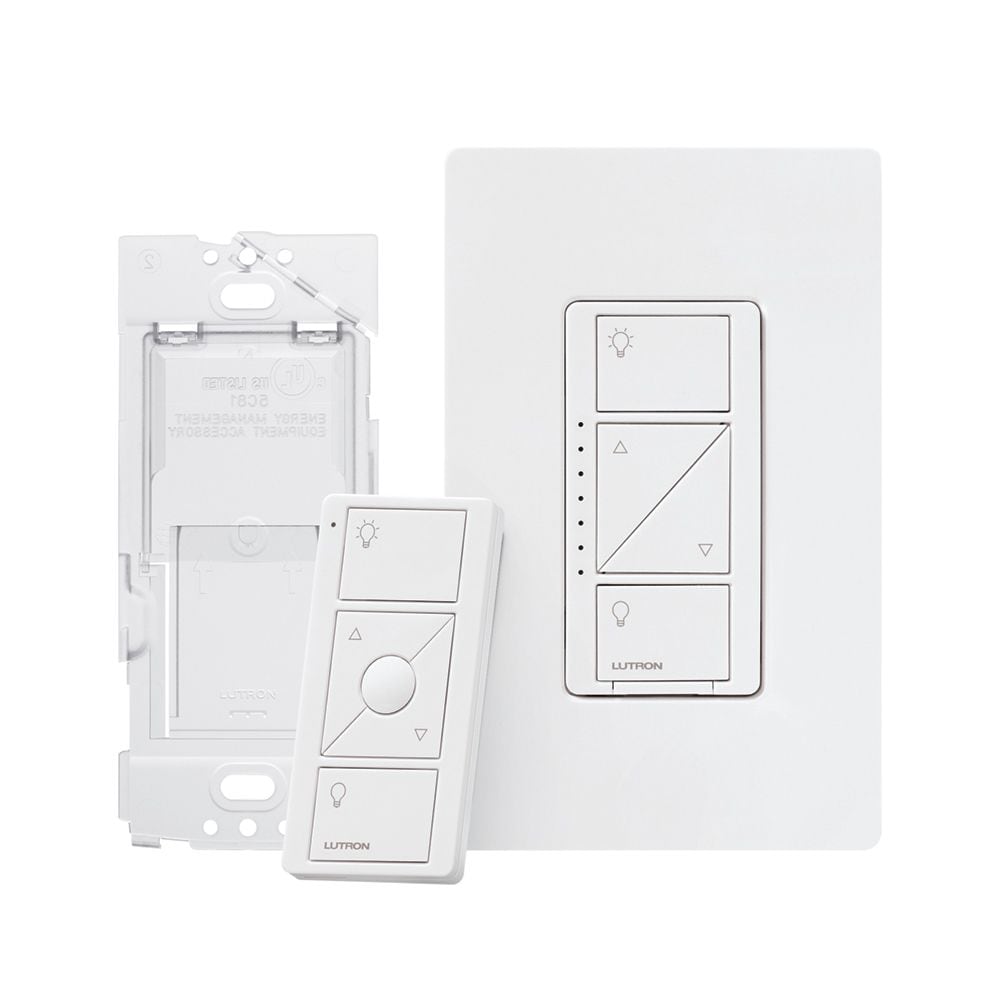

Experience the ultimate convenience with the Lutron Caseta wireless dimmer and Pico remote control. The wireless dimmer gives you the ability to set the right light for any activity whether it's reading, watching TV, entertaining, or having a casual dinner. Control your lights in a 3-way application by mounting the Pico remote to the wall with the included Pico wall box bracket, for multi-location dimming. No cutting holes or wiring required! The remote lets you turn lights on/off as well as brighten or dim them. With the Lutron smart hub and app (sold separately), you can control your Caseta wireless dimmers with your smartphone from anywhere. The dimmer works up to 600-watt of incandescent or halogen and 150-watt of dimmable LED or dimmable CFL. Pico takes (1) CR2032 battery, included in remote. Contains (1) PD-6WCL-WH, (1) PJ2-3BRL-WH-L01, (1) PICO-WBX-ADAPT, (1) CW-1-WH.
Specifications
| Brand | Lutron® |
| Series | Caséta® |
| Part Number | P-DIM-3WAY-WH-C |
| Type | 3-Way Smart Dimmer Kit with Wireless Remote |
| Operating Voltage | 120 V~ 50/60 Hz |
| Wattage | 150 W LED/Halogen; 600 W Incandescent |
| Amperage Rating | 1.25 A |
| Lamp Type | LED / Halogen / Incandescent |
| Wiring Configuration | Conventional 3-way wiring; compatible with mechanical switch in 3-way applications |
| Mounting | 1-Gang U.S. Wallbox; 3½ in (89 mm) depth recommended, 2¼ in (57 mm) minimum |
| Wireless Communication | Radio Frequency (RF); 60 ft (18 m) line-of-sight or 30 ft (9 m) through walls to Smart Hub |
| System Capacity | Up to 75 total wireless devices per Smart Hub / Smart Hub PRO system |
| Power Failure Memory | Yes — returns to previously set level upon power restoration |
| Status Indicator | Green status LED(s) to indicate load status |
| Colour | White |
| Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F), 0–90% humidity, non-condensing; indoor use only |
| Wallplate Compatibility | Lutron Claro® or designer-style wallplates (sold separately) |
| Certifications & Approvals | cULus Listed, NOM Certified, FCC Approved (Class B, Part 15), Industry Canada Certified, IFTEL Certified |
| NEMA Standards | NEMA 410: PD (-5ANS, -6ANS, -5WS, -10NXD, -5NE), DVRF (-6L, -5NS, -5NE) |
| Surge & ESD Protection | Tested per IEC 61000-4-2 (ESD) and IEEE C62.41-1991 (surge voltages) |
