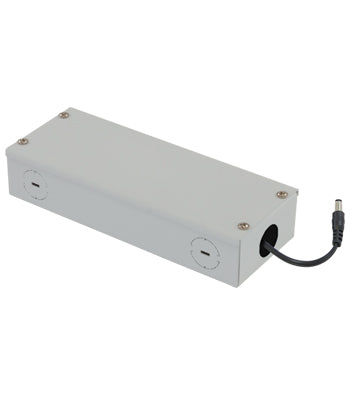

Liteline Non-Dimming Driver Hardwire Box 24W, Model LED-HWB-24V-24W
Pickup currently unavailable at IES - Mississauga
Shipping & Pickup Information
In-stock items typically ship next business day.
Additional shipping charges may apply to oversized or freight items. Shipping rates calculated at checkout.
Free pickup from our local warehouses in Mississauga & Scarborough. Usually ready within 1 business day.
Returns available on eligible items.
Power indoor 24V LED tape and strip lighting with this Liteline non-dimming driver and integrated hardwire box. Constant-voltage output and built-in circuit protection support dependable lighting installations, while push-in wire connectors and eight knockouts simplify wiring and positioning on the job site.
Specifications
| Product Type | LED driver with hardwire box |
| Power Rating | 24W |
| Output Type | Constant voltage, non-dimming |
| Output Voltage | 24V DC |
| Output Current | 1000mA |
| Input Voltage Range | 100–240V AC |
| Input Current | 1500mA |
| Input Frequency | 50/60Hz |
| Efficiency | Greater than 80% at 115V AC and 230V AC |
| No-Load Power Consumption | Less than 0.5W |
| Leakage Current | Less than 0.25mA |
| Protection | Short-circuit, over-current, over-voltage and open-circuit protection |
| Output Connection | 2.1 DC jack with 55-inch 18AWG SPT cord |
| Wiring | Push-in wire connectors; dedicated compartment for 120V hardwiring |
| Box Construction | 20-gauge painted steel |
| Knockouts | Eight 7/8-inch knockouts |
| Operating / Storage Humidity | 5–90% RH |
| Application | Indoor use only |
| Compatibility | All Liteline® 24V LED lighting products |
