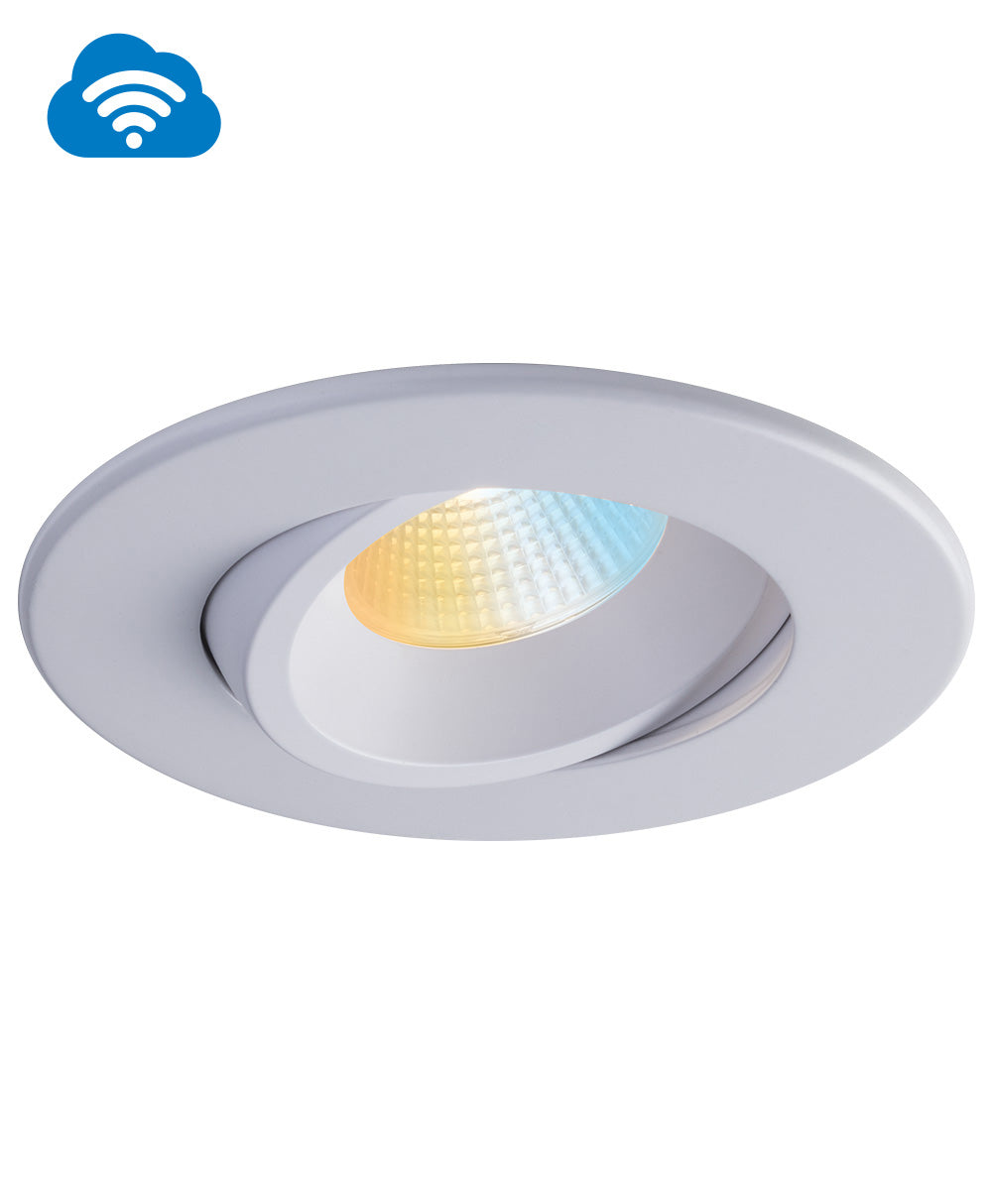

The Liteline LUNA 4" OnCloud Gimbal Downlight (RA4-12RG-WZ-90WH) brings Wi-Fi-enabled tunable white lighting to demanding residential and commercial installations — no hub, no neutral wire complications. With a 12W LED module delivering up to 850 lumens and full 2700K–5000K colour tunability, contractors can dial in the perfect ambience for living spaces, hospitality projects, and covered exterior areas right from the WiZ App. The airtight, anodized aluminum body with integrated blue heat sink is engineered for longevity and thermal performance, while 360° rotation and 30° tilt give precise aiming flexibility on the job site. WET location rated and approved for direct contact with insulation, this fixture is built for both new construction and retrofit applications where performance and code compliance matter.
Specifications
| Brand | Liteline |
| Model | RA4-12RG-WZ-90WH |
| Product Family | Luna OnCloud |
| Fixture Type | Gimbal Recessed Downlight |
| Aperture Size | 4" |
| Wattage | 12W |
| Lumens | Up to 850 lm |
| CRI | 90+ |
| Colour Temperature | Tunable White: 2700K – 5000K |
| Beam Spread | 38° |
| Rotation | 360° |
| Tilt | 30° |
| Dimming | 100%–10% Wi-Fi (WiZ App) |
| Connectivity | Wi-Fi — Works with Google Assistant, Siri, Alexa & IFTTT |
| Input Voltage | 100–135V AC |
| Driver | 12W (300mA) Wi-Fi Dimmable LED Driver, Hardwire |
| Mounting | Spring-Loaded Clips (fits any ceiling material) |
| Wiring | Quick-Connect Push-In Terminals (3); 18" wire with 3-Pin DC connector |
| Minimum Starting Temperature | -40°C (-40°F) |
| Location Rating | WET — Suitable for Indoor/Outdoor Applications |
| Insulation Contact | Approved for Direct Contact with Insulation (IC-Rated) |
| Airtight | Yes |
| Body Material | Durable Airtight Aluminium with Anodized Blue Heat Sink |
| Colour | White |
