LEVITON Tamper-Resistant Duplex Outlet Charger with USB C – 20A, White, Model T5835-W
$80.13
/
In Stock
Shipping calculated at checkout.
LEVITON
MFR #T5835-W
UPC #7847797939
LEVITON Tamper-Resistant Duplex Outlet Charger with USB C – 20A, White, Model T5835-W
$80.13
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Scarborough
Usually ready in 4 hours

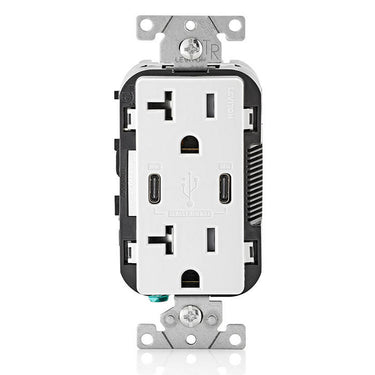

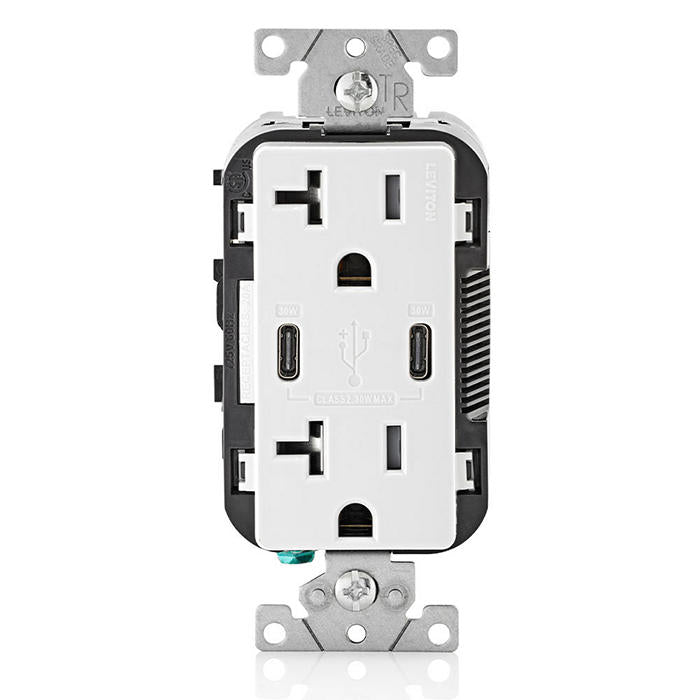

The Leviton Decora® T5835-W is a 20A tamper-resistant duplex receptacle with dual USB-C Power Delivery ports, delivering up to 30W (6A) of fast charging without a wall adapter. Designed for professional electricians and contractors working on residential and commercial specification-grade installations, this outlet is ideal for kitchens, home offices, hotel rooms, boardrooms, and any space where device charging is a priority. The built-in tamper-resistant shutters meet code requirements for child safety, while the cCSAus listing confirms compliance for Canadian installations. Pair it with a Decora® wallplate (sold separately) for a clean, finished look.
Specifications
| Brand | Leviton Decora® |
| Model | T5835-W |
| Type | 30W Dual USB Type-C/C with Power Delivery, Tamper-Resistant Duplex Receptacle |
| Amperage | 20A |
| Voltage | 125 VAC |
| NEMA Configuration | 5-20R |
| USB Power Delivery | Yes — 30W (6A) total |
| Colour | White |
| Grade | Residential/Commercial Specification Grade |
| Body & Cover Material | Thermoplastic |
| Strap Material | Steel |
| Grounding | Grounding |
| Horsepower Rating | 20A – 1/2 HP |
| Termination | Back & Side |
| Terminal Accommodation | 14–12 AWG |
| Terminal ID | Brass – Hot, Black – Hot, White – Neutral, Green – Ground |
| Torque Range | 14 – 18 in.-lbs |
| Operating Temperature | -10°C to 40°C |
| Flammability | Rated V-0 per UL 94 |
| Wallplate | Not Included |
| Certifications | cCSAus Listed, UL 498, UL 1310, FCC Part 15 Class B, NOM 057 |
| Warranty | 2-Year Limited (Leviton) |
