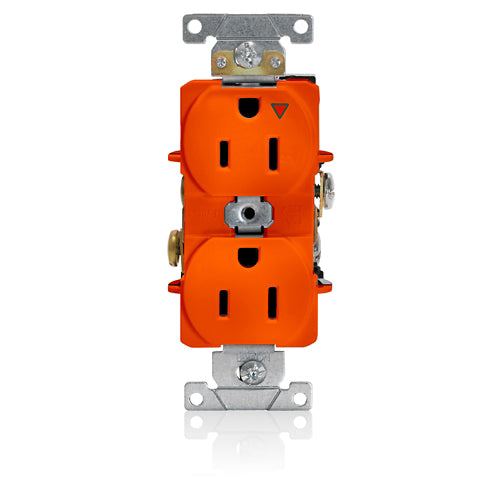

The Leviton 5262-SIG is a heavy-duty industrial specification grade isolated ground duplex receptacle engineered for professional electricians and contractors who demand reliable, interference-free power on demanding job sites. Rated at 15A/125V and finished in the industry-standard orange colour that signals isolated ground functionality, this receptacle is purpose-built for sensitive electronic equipment, data centres, medical facilities, and commercial installations where clean power and signal integrity are non-negotiable. Its self-grounding strap, triple-drive brass terminal screws, and phosphor bronze line contacts deliver the durability and torque retention that tradespeople count on rough-in to final inspection.
AC Horsepower Ratings
Electrical Specifications
| Amperage |
15 A |
| Dielectric Voltage |
Withstands 3000 V min |
| Grounding |
Self-Grounding |
| Pole |
2 |
| Temperature Rise |
Max 30°C at full rated current |
| Voltage |
125 VAC |
| Wire |
3 |
Environmental Specifications
| Flammability |
Rated V-0 per UL 94 |
| Operating Temperature |
-40°C to 75°C |
Material Specifications
| Body Material |
PBT Polyester Blend |
| Colour |
Orange |
| Face Material |
PBT Polyester Blend |
| Grounding Screw |
#8 Hex Head, Triple-Drive Brass |
| Line Contacts |
0.030" Phosphor Bronze |
| Strap Material |
Steel (Galvanised G60) |
| Terminal Screws |
#8 Triple-Drive Brass |
Mechanical Specifications
| Product ID |
Ratings are permanently part of devices |
| Screw Terminal Torque |
14–18 in-lbs |
| Terminal Accommodation |
#14–#10 AWG |
| Terminal ID |
Brass-Hot, Silver-Neutral, Green-Ground |
| Termination |
Back and Side Wire |
Product Features
| Colour |
Orange |
| Device Type |
Duplex Receptacle Outlet |
| Face Material |
PBT Polyester Blend |
| Feature |
Smooth Face |
| Function |
Isolated Ground |
| Grade |
Heavy-Duty Industrial Specification Grade |
| NEMA |
5-15R |
| Termination |
Back and Side Wire |
Standards and Certifications
| ANSI |
C-73 |
| CSA C22.2 No. 42 |
File 152105 |
| NEMA |
WD-1 & WD-6 |
| NOM |
057 |
| UL Fed Spec WC-596 |
File E13399 |
| Warranty |
10-Year Limited |
