Leviton
MFR #EVCVM-50
UPC #78477034897
Leviton 50 Amp Weather-Resistant EV Charging Outlet with Outdoor Weatherproof Metal Cover, Model EVCVM-50
$77.28
/
In Stock
Shipping calculated at checkout.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Related categories

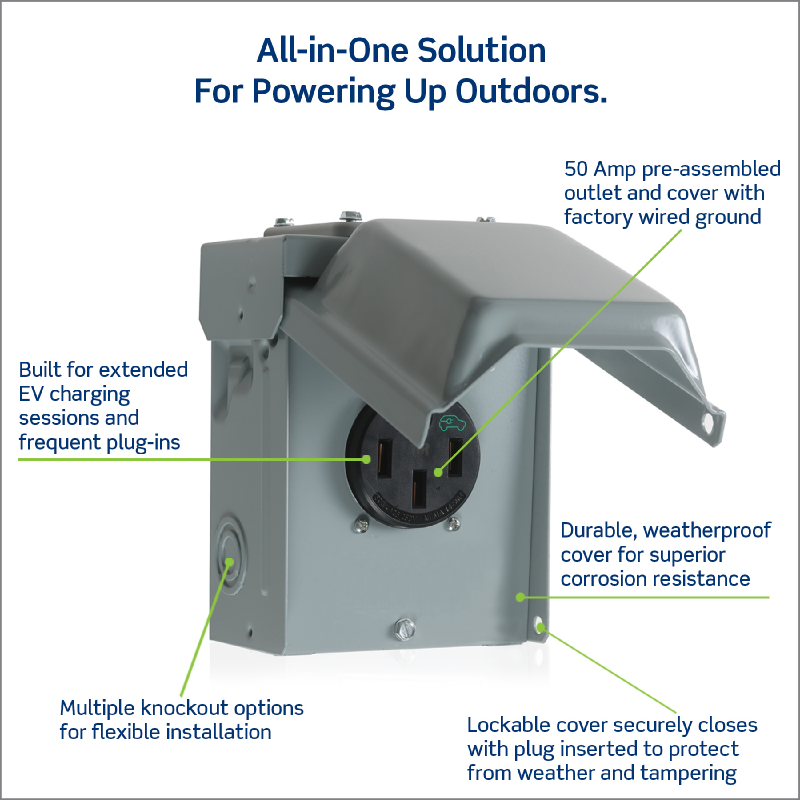

Simplify outdoor plug-in EV charger installations with this pre-assembled, heavy-duty outlet and weatherproof metal cover, complete with a factory-wired ground. Designed for extended charging sessions and frequent plug-ins, the weather-resistant receptacle pairs with a lockable while-in-use cover that closes with an EV charging plug inserted. Flexible knockouts and wall or pedestal mounting options support residential, multi-unit and retrofit installations.
Specifications
| Device Type | Pre-assembled weather-resistant EV charging outlet with outdoor weatherproof metal cover |
| Amperage | 50 A |
| Voltage | 125/250 VAC |
| NEMA Configuration | 14-50R, straight blade |
| Poles / Wires | 3-pole, 4-wire, grounding |
| Grade | Heavy-duty / EV |
| Colour | Grey |
| Mounting | Surface mount; supports wall and pedestal installations; multiple knockouts |

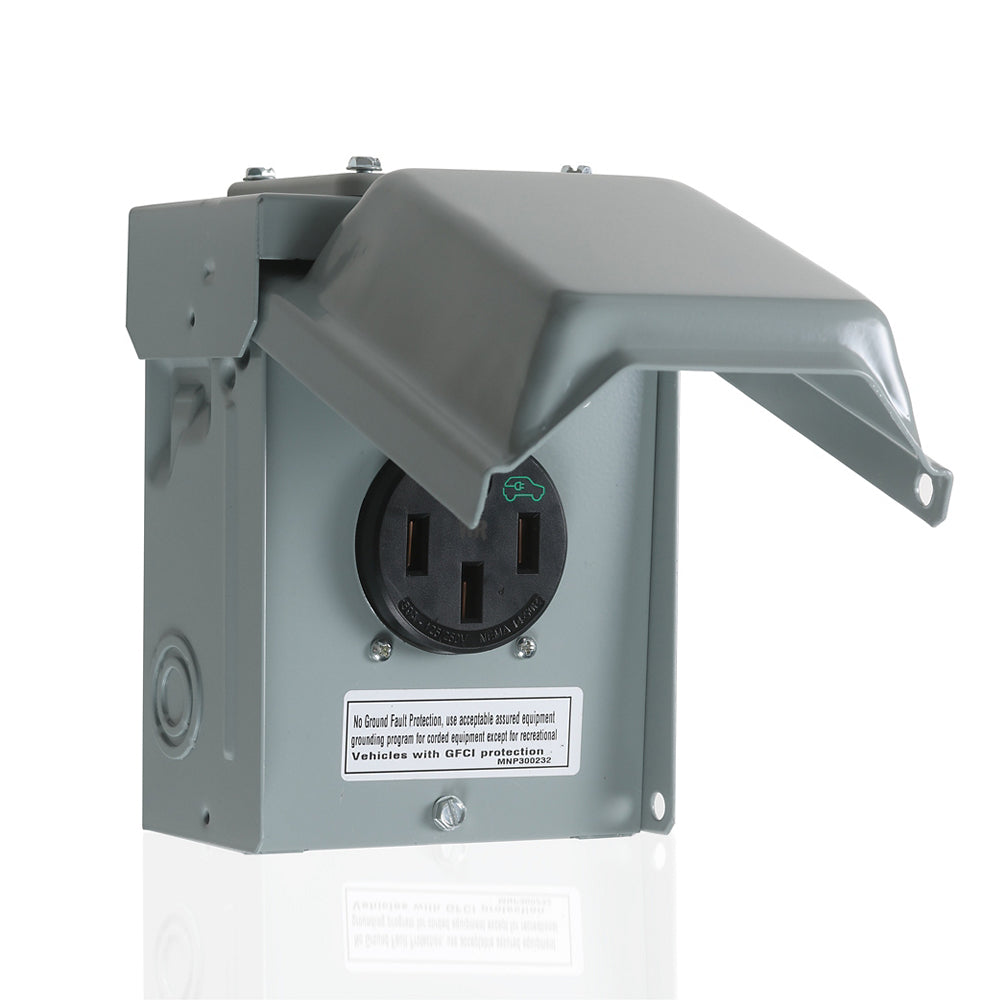

| Cover Features | Lockable while-in-use cover closes with a NEMA 14-50P EV charging plug inserted; welded flange and dead front design |
| Face Material | Nylon |
| Cover Material | G90 galvanized steel with powder-coated finish |
| Enclosure Rating | NEMA 3R |
| Operating Temperature | -40°C to 60°C |
| Conductor Compatibility | #4, #6 or #8 AWG copper wire only. #10 AWG solid wire may be used for the ground connection. Do not use copper-clad or aluminum wire. |
| Termination | Side-wired; factory-wired ground |
| Terminal Identification | X and Y (brass or black screws): hot; White (silver screw): neutral; Green (green screw): ground |
| Terminal Torque | 75 in-lb |
| Hub Compatibility | Midwest B-series hubs |
| Applications | Plug-in EV chargers, RVs, trailers and other high-powered appliances |
| Listing | cULus Listed |
| Referenced Standard | 2020 NEC 625.56 |
| RoHS | Compliant |
| Warranty | 1-year limited |
