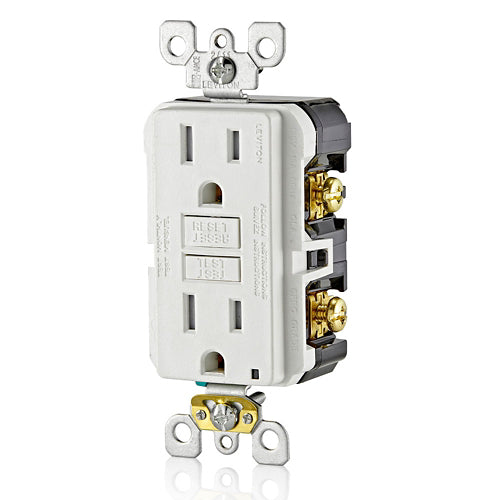

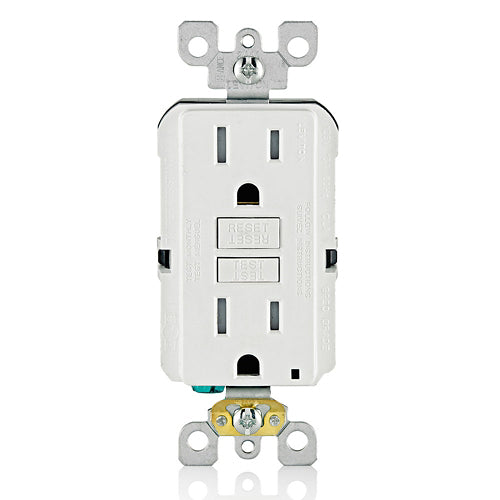

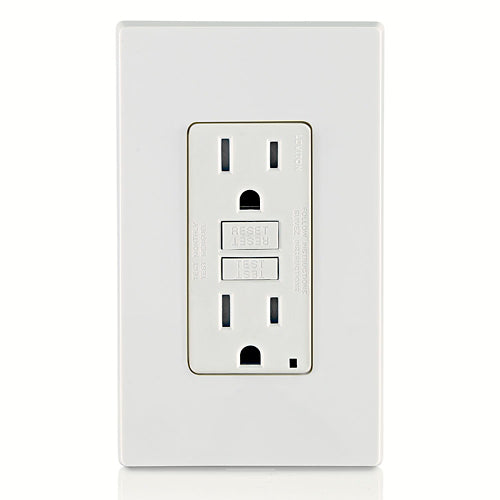

Leviton 15 Amp Self Test Tamper-Resistant Slim GFCI Outlet with LED Indicator Light, White, Model GFTR1-W
Why Pros choose it
- Self-Test GFCI Protection continuously monitors for proper operation.
- Tamper-Resistant Shutters help enhance electrical safety.
- Slim Design fits more easily into electrical boxes.

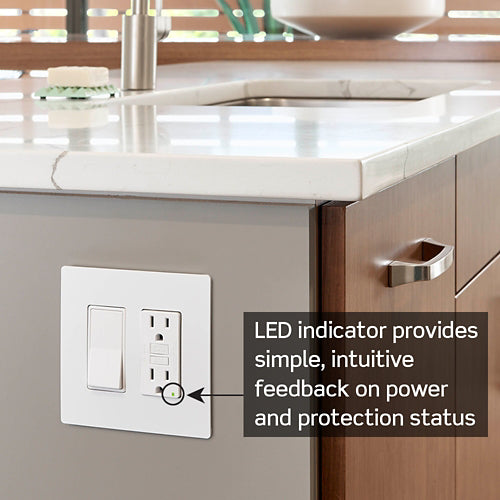

- LED Status Indicator provides clear visual protection status.
Pickup available at IES - Mississauga
Usually ready in 4 hours
Ontario Pickup Locations
Pickup available Monday to Friday 6:30am - 4:30pm
Scarborough:
48 Milner Avenue, Scarborough,
ON M1S 3P8
(416) 291-0048
Mississauga:
3845 Nashua Dr, Mississauga,
ON L4V 1R3
The Leviton SmartlockPro GFTR1-W is a 15 Amp, 125V Self-Test Tamper-Resistant GFCI Duplex Outlet engineered for professional electricians and contractors who demand reliable, code-compliant ground fault protection on every job. Whether you're roughing in bathrooms, upgrading kitchen circuits, wiring garages, or finishing basements, this outlet delivers continuous automatic monitoring — testing itself every few seconds and locking out if protection is ever compromised. The slim, reduced-depth profile fits easily into shallow boxes, back and side wire terminals speed up installation, and the Status Indicator Light gives instant visual feedback on protection status and line/load reversal. Rated for residential and commercial specification grade applications, it meets UL, CSA, and Fed Spec WC-596 requirements — a dependable go-to for any wet or damp location build.
Specifications
| Brand | SmartlockPro (Leviton) |
| Device Type | Duplex Receptacle / Outlet |
| Product Type | GFCI |
| Colour | White |
| Grade | Residential / Commercial Specification Grade |
| Feature(s) | Indicator Light, Self-Test, Tamper Resistant |
| Amperage | 15 A |
| Voltage | 125 VAC |
| Power Supply Input and Frequency | 125V, 60Hz |
| NEMA Configuration | 5-15R |
| Pole(s) | 2 |
| Wire(s) | 3 |
| Grounding | Self-Grounding |
| Horsepower Rating | 1 hp |
| Dielectric Voltage | 1250 VAC |
| Short Circuit Current Rating | 10 kA |
| Temperature Rise | Max 30°C |
| Trip Level | Class A |
| Operating Temperature | Maximum Continuous 66°C, Minimum -35°C (w/o impact) |
| Body | Thermoplastic |
| Face | Thermoplastic |
| TR Shutter | Thermoplastic |
| Mounting Strap | Galvanised Steel |
| Grounding Screw | #8 Galvanised Steel |
| Line Contacts | Brass |
| Terminal Clamps | Brass |
| Terminal Screws | #8 Plated Steel |
| Self-Grounding Clip | Yes |
| Termination | Back and Side Wire |
| Wire Accommodation | #10 – #14 AWG Copper, #10 – #12 Copper Clad |
| Torque Range | 14–18 lbs. |
| Product ID / Ratings | Ratings are marked on device |
| Applicable Standards and Certifications | UL, CSA, CSA C22.2 No. 144, CSA C22.2 No. 42, Fed Spec WC-596, UL 943, UL 498 |
| NEMA Standards | WD-1 and WD-6 |
| Warranty | 2-Year Limited |
