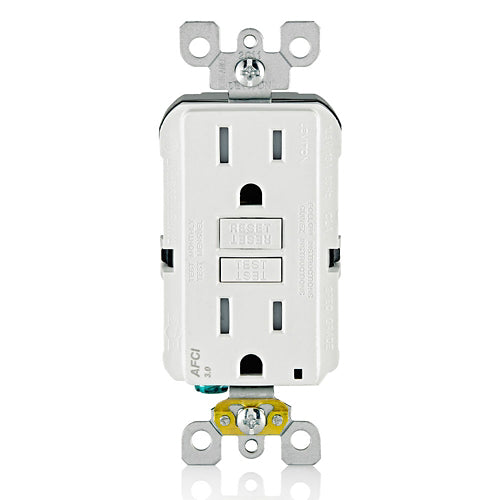

The Leviton SmartlockPro AFTR1-W is a 15-amp, 125V AFCI duplex receptacle engineered for professional electricians and contractors who demand code-compliant arc fault protection on every rough-in. Whether you're wiring new residential builds, multi-unit dwellings, or commercial tenant improvements, this outlet delivers the reliability and safety performance required by the Canadian Electrical Code and NEC. Its tamper-resistant shutters protect against accidental contact, the built-in LED indicator confirms circuit status at a glance, and the self-grounding clip speeds up installation — all in a specification-grade package that pairs with any Decora® wallplate. Backed by a 2-year limited warranty and dual CSA/UL listing, it's the go-to AFCI solution for contractors who can't afford callbacks.
Electrical Specifications
| Amperage |
15 A |
| Dielectric Voltage |
1250 VAC |
| Grounding |
Self-Grounding |
| Horsepower Rating |
1 hp |
| Pole(s) |
2 |
| Power Supply Input and Frequency |
125V, 60Hz |
| Short Circuit Current Rating |
10 kA |
| Temperature Rise |
Max 30°C |
| Voltage |
125 VAC |
| Wire(s) |
3 |
Environmental Specifications
| Operating Temperature |
Maximum Continuous 66°C, Minimum -35°C (w/o impact) |
Material Specifications
| Body |
Thermoplastic |
| Face |
Thermoplastic |
| Grounding Screw |
#8 Galvanised Steel |
| Line Contacts |
Brass |
| Mounting Strap |
Galvanised Steel |
| Self-Grounding Clip |
Yes |
| TR Shutter |
Thermoplastic |
| Terminal Clamps |
Brass |
| Terminal Screws |
#8 Plated Steel |
Mechanical Specifications
| Product ID |
Ratings are marked on device |
| Termination |
Back and Side Wire |
| Torque Range |
14–18 lbs. |
| Wire Accommodation |
#10 – #14 AWG Copper, #10 – #12 Copper Clad |
Product Features
| Brand |
SmartlockPro |
| Colour |
White |
| Device Type |
Duplex Receptacle/Outlet |
| Feature(s) |
Indicator Light, Tamper Resistant, Wallplate Included |
| Grade |
Residential/Commercial Specification Grade |
| NEMA Configuration |
5-15R |
| Product Type |
AFCI |
Standards and Certifications
| Applicable Standards and Certifications |
UL, CSA, CSA C22.2 No. 270, CSA C22.2 No. 42, Fed Spec WC-596, UL 1699A, UL 498 |
| NEMA |
WD-1 and WD-6 |
Warranty
Features & Benefits
- TEST and RESET button operation mirrors traditional GFCI receptacles for greater consumer familiarity and acceptance
- Automatically tests AFCI protection every time the RESET button is depressed; will not reset if the circuit is not functioning properly
- Blocks reset if protection has been compromised, reducing the risk of end-users incorrectly assuming a reset AFCI is providing protection
- Line-load reversal diagnostic feature prevents reset and stops power to the receptacle face or downstream devices; green LED illuminates to alert the installer to a wiring reversal when in the tripped state
- TR symbol confirms compliance with the latest NEC® requirements for tamper-resistant receptacles in residences and childcare facilities
- Device design reduces nuisance tripping
- Impact-resistant thermoplastic cover and body
- Superior resistance to electrical surges and over-voltages

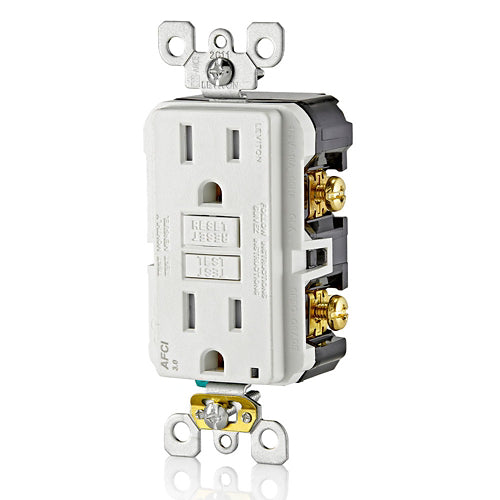

- Back and side wire terminals allow for flexible wiring options

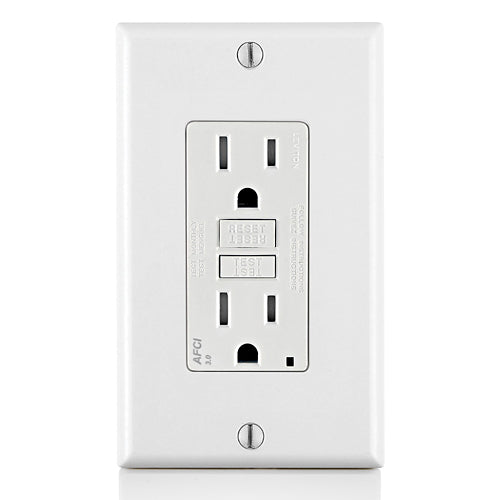

- Compatible with all Decora® devices and wallplates; available in select colours
- Meets or exceeds UL requirements for tripping time on both series and parallel arcs
