KLEIN TOOLS Advanced Circuit Tracer Kit and Case, Model ET450
KLEIN TOOLS Advanced Circuit Tracer Kit and Case, Model ET450
Pickup available at Independent Electric Supply
Usually ready in 4 hours

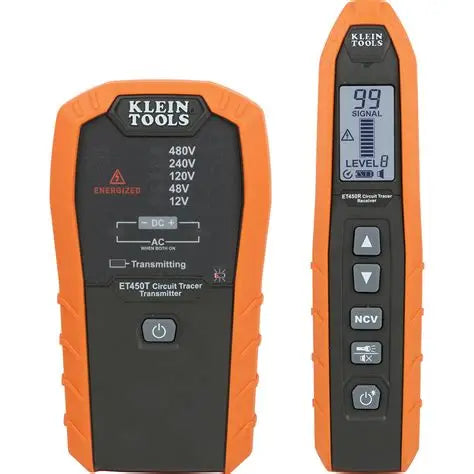

The Klein Tools ET450 Advanced Circuit Tracer Kit is built for professional electricians and contractors who need dependable, precise circuit identification on the job site. Whether you're tracing energised or non-energised breakers, fuses, or wires through drywall, cement block, or underground runs, the ET450 delivers. Simply connect the Transmitter to a circuit and use the Receiver — with adjustable sensitivity — to pinpoint the signal quickly and accurately. With NCV capability to confirm if wires are live, a built-in flashlight for low-light work areas, and a rugged hard carrying case for transport between sites, this kit is engineered to keep your crew moving efficiently from panel to panel.
Specifications
| Type | Circuit Tracer |
| Application | Trace energised and non-energised breakers, fuses, and wires |
| Special Features | Flashlight and NCV function on receiver; accessories and hard case included |
| Material | ABS and electronic components |
| Batteries | Transmitter: 6 × 1.5V AA Alkaline; Receiver: 4 × 1.5V AA Alkaline |
| Battery Life | Up to 24 hr |
| Drop Protection | 6 ft (2 m) |
| Display | Receiver: LCD with backlight |
| Control Type | Transmitter and receiver |
| Voltage | External indicators for 12V, 48V, 120V, 240V, and 480V |
| Frequency | Transmitter: AC 45Hz to 65Hz; Receiver: 33kHz |
| Ingress Protection | IP42 |
| Pollution Degree | 2 |
| Tests Continuity | No |
| Interchangeable Leads | Yes |
| Lead Length | 20 ft (6.1 m) |
| Safety Standard | CAT III 600V |
| Case Included | Yes |

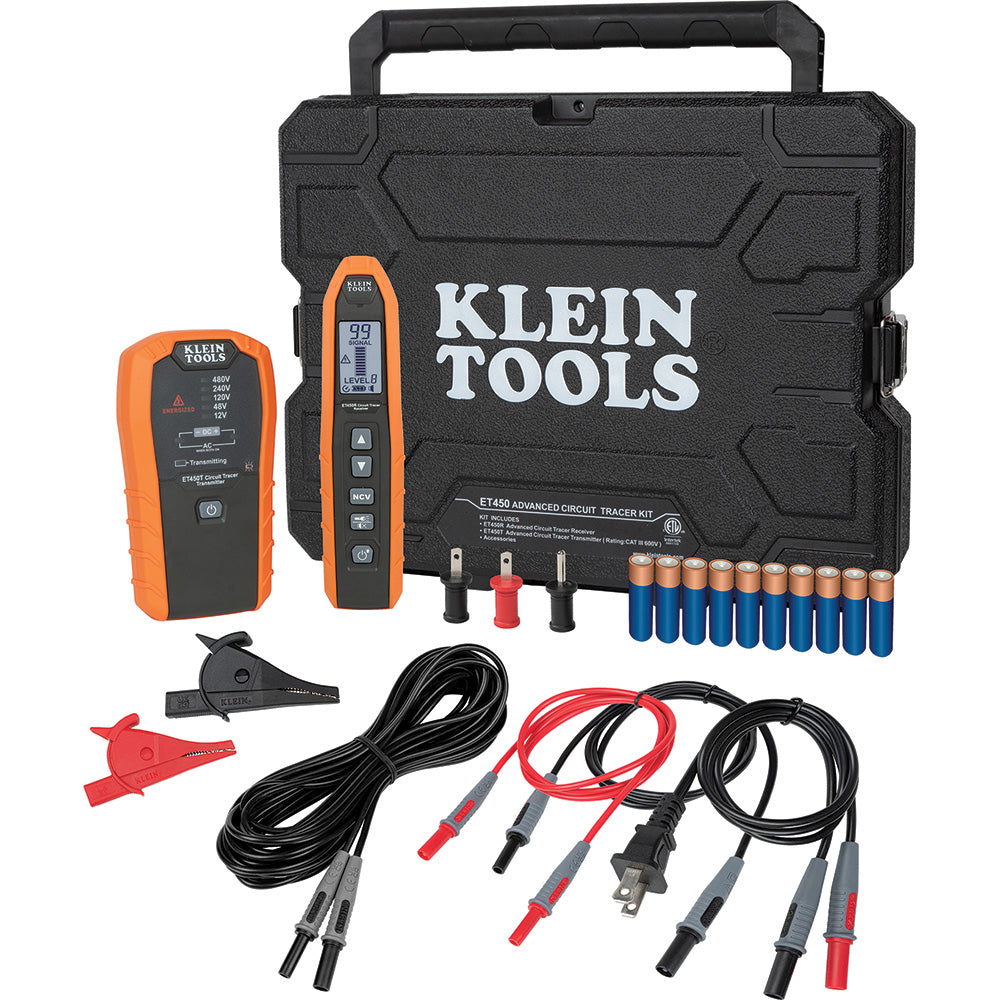

| Kit Contents | Transmitter, receiver, blade and ground prongs, alligator clips, 3 ft and 20 ft lead adapters, AC plug leads, instructions, all required batteries, and hard carrying case |
| Overall Dimensions (L × H × W) | 40.9 × 10.2 × 32.4 cm (16.12 × 4 × 12.75 in) |
| Weight | 2,849 g (100.5 oz) |
| UPC | 092644693380 |
